FOOTREST

GN125U 1999 (X) GERMANY (E22)

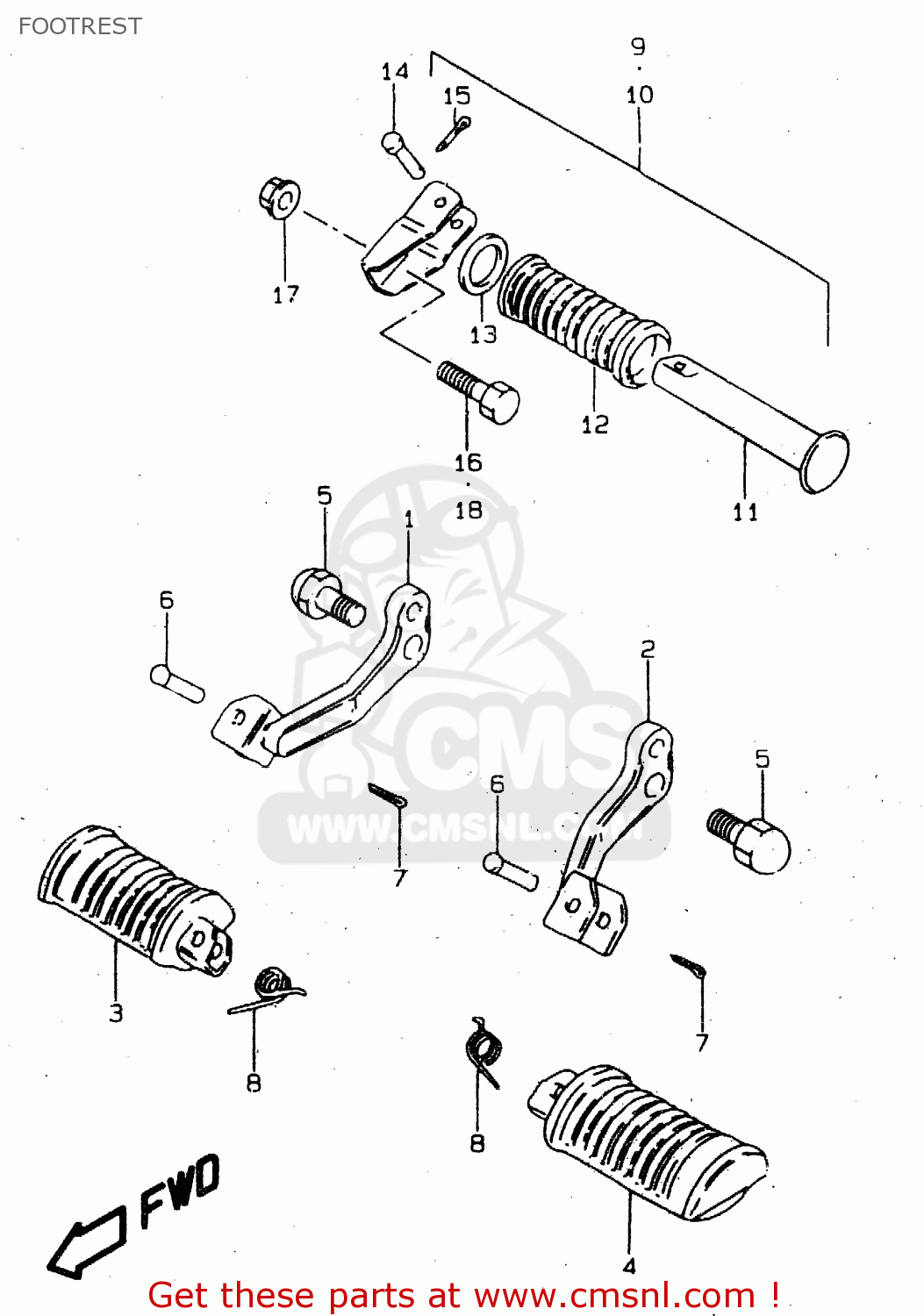

Footrest diagram GN125U 1999 (X) GERMANY (E22)

FOOTREST GN125U 1999 (X) GERMANY (E22)

FOOTREST GN125U 1999 (X) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

4351005330
ref: 1

HOLDER,FR FOOTREST,R

€ 35.50

2

4352005330
ref: 2

HOLDER,FR FOOTREST,L

€ 35.50

3

4355037301
ref: 3

RUBBER,PILLION FOOTREST,R

€ 22.50

4

4356037301
ref: 4

RUBBER,PILLION FOOTREST,L

€ 22.50

5

0155012257
ref: 5

BOLT

€ 2.50

6

0920008002
ref: 6

PIN

€ 2.00

7

0411120208
ref: 7

PIN 20X20

€ 1.50

8

0944814012
ref: 8

SPRING

€ 3.00

9

4360005301
ref: 9

FOOTREST ASSY,PILLION,R

€ 21.00

10

4370005301
ref: 10

FOOTREST ASSY,PILLION,L

€ 21.00

11

4361003001
ref: 11

BAR,FOOTREST RUBBER

€ 5.50

12

4361233200
ref: 12

RUBBER,PILLION FOOTREST

€ 4.50

13

0916019006
ref: 13
MODEL V

WASHER (19.5X32X2)

€ 2.00

13

0916019023
ref: 13
MODEL W/X

WASHER

€ 2.00

14

0920006033
ref: 14

PIN

€ 2.00

15

0411120158
ref: 15

PIN

€ 1.50

16

0155010453
ref: 16

BOLT

€ 3.00

17

0831610103
ref: 17

NUT

€ 2.00

18

0155010253
ref: 18

BOLT

€ 3.00
