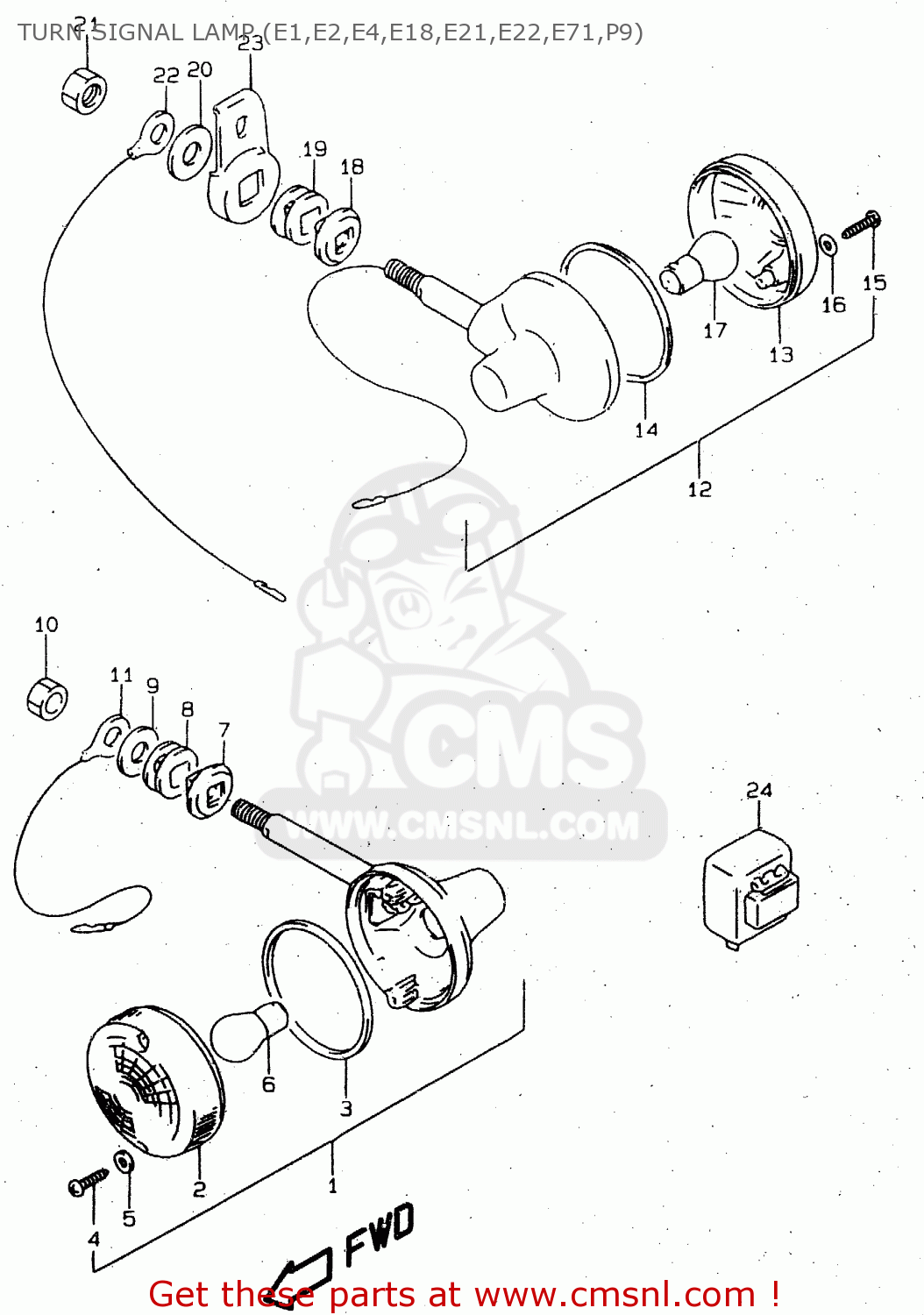

TURN SIGNAL LAMP (E1,E2,E4,E18,E21,E22,E71,P9)

ref

part #

description

quantity

1

3560139370999
ref: 1
<-35601-39370

LAMP ASSY,FR TURN SIGNAL

€ 78.50

2

3561202460
ref: 2

LENS

€ 9.00

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104208
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6
PURCHASE LOCALLY

BULB(12V21W)

€ 5.00

7

3569536590
ref: 7

SPACER

€ 6.00

8

3569032200
ref: 8

CUSHION

€ 38.50

9

0916010006
ref: 9
MODEL V

WASHER (10.5X30X2.3)

€ 2.50

9

0916010501
ref: 9
MODEL W/X

WASHER(10.5X30X2.3)

€ 2.50

10

0831000107
ref: 10

NUT

€ 2.50

11

3666033000
ref: 11

LEAD WIRE,EARTH

€ 5.00

12

3560326420999
ref: 12

LAMP ASSY,RR TURNSIGNAL

€ 78.50

12

3560339380
ref: 12
E18,E22

LAMP ASSY,RR TURNSIGNAL

€ 102.50

13

3565202470
ref: 13

LENS

€ 7.00

14

3561328620
ref: 14

GASKET (NAS)

€ 7.00

15

0321104208
ref: 15

SCREW

€ 1.50

16

3562743010
ref: 16

GASKET (NAS)

€ 2.00

17

0947112045
ref: 17
PURCHASE LOCALLY

BULB(12V21W)

€ 5.00

18

3569536590
ref: 18

SPACER

€ 6.00

19

0932015004
ref: 19

CUSHION

€ 5.00

20

0916010501
ref: 20
<-09160-10006

WASHER(10.5X30X2.3)

€ 2.50

21

0831000107
ref: 21

NUT

€ 2.50

22

3686244000
ref: 22

LEAD WIRE,EARTH

€ 4.00

23

3562138300
ref: 23
E1,E2,E4,E21,E71,P9

BRACKET,RR TURNSIGNAL LAMP,R

€ 7.00

23

3564138300
ref: 23
E1,E2,E4,E21,E71,P9

BRACKET,RR TURNSIGNAL LAMP,L

€ 7.00

24

3861031X50
ref: 24

RELAY ASSY,TURNSIGNAL

€ 54.50

24

3861045091
ref: 24
MODEL V, E18,E22

RELAY ASSY,TUR

€ 67.50

24

3861006F00
ref: 24
MODEL W/X, E18,E22

RELAY ASSY,TURNSIGNAL

€ 67.50

all assemblies
