CHAIN CASE - SHOCK ABSORBER
GN250 1983 (D) USA (E03)

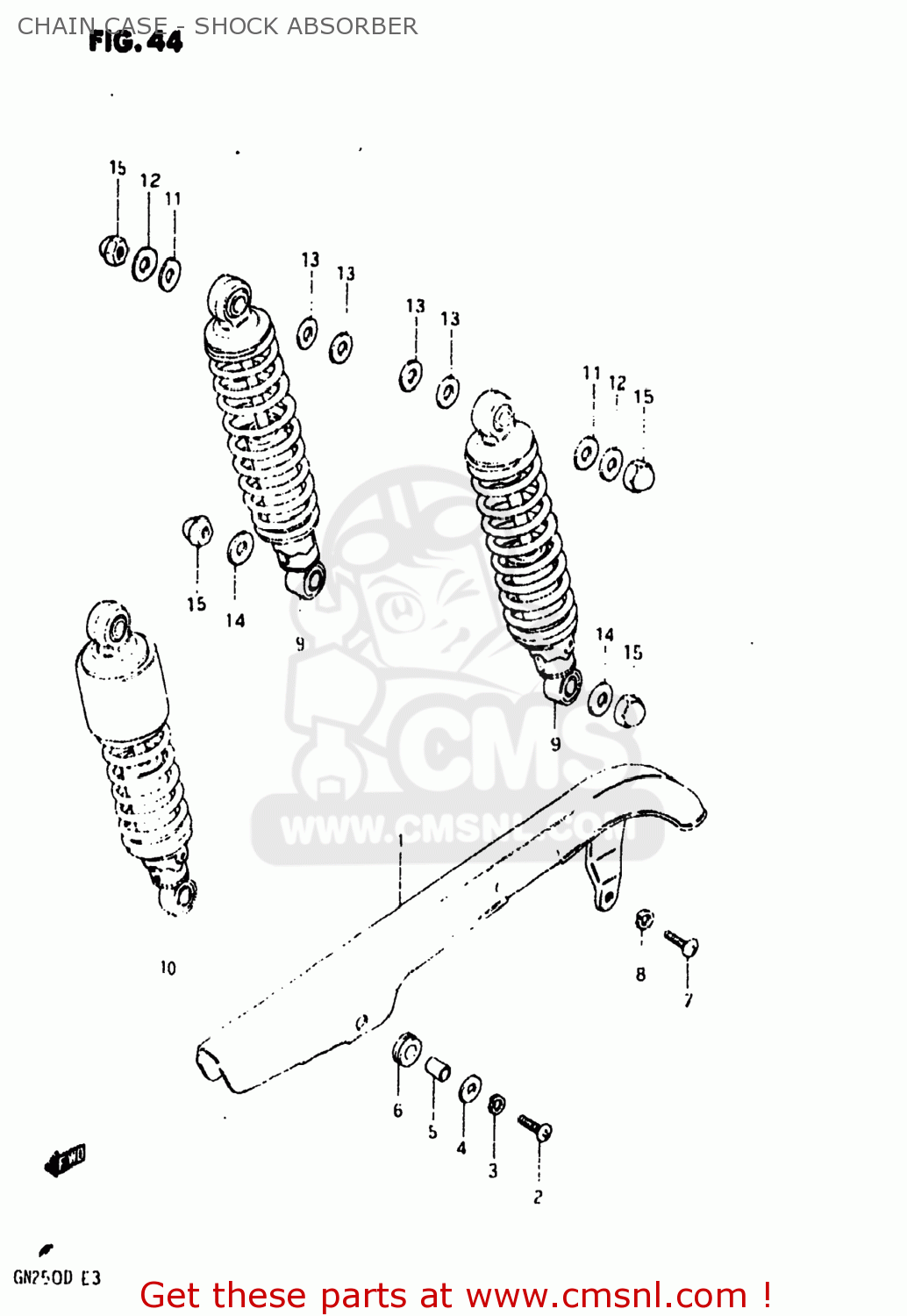

Chain case - shock absorber diagram GN250 1983 (D) USA (E03)
CHAIN CASE - SHOCK ABSORBER GN250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6131038300
ref: 1
CASE,CHAIN
€ 140.50
2
0211206168
ref: 2
02112-06167
SCREW
€ 2.50
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
0916006027
ref: 4
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
5
0918007005
ref: 5
09180-06259
SPACER (7X9X7)
€ 2.50
6
0932008007
ref: 6
09320-08021
CUSHION
€ 4.00
7
0211206168
ref: 7
02112-06167
SCREW
€ 2.50
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
6210038300
ref: 9
62100-38310
ABSORBER ASSEMBLY,REAR SHOCK
€ 172.50
10
6210038310
ref: 10
ABSORBER ASSY,RR SHOCK
€ 172.50
11
0916010001
ref: 11
09160-10093
WASHER
€ 2.00
12
0916010033
ref: 12
09160-10128-XC0
WASHER(10.5X24X3.2)
€ 2.00
13
0832211128
ref: 13
08322-01127
WASHER
€ 2.00
14
0916010001
ref: 14
09160-10093
WASHER
€ 2.00
15
0831311108
ref: 15
08313-10107
NUT, LOWER LH
€ 2.50
