STARTING MOTOR
GN250 1983 (D) USA (E03)

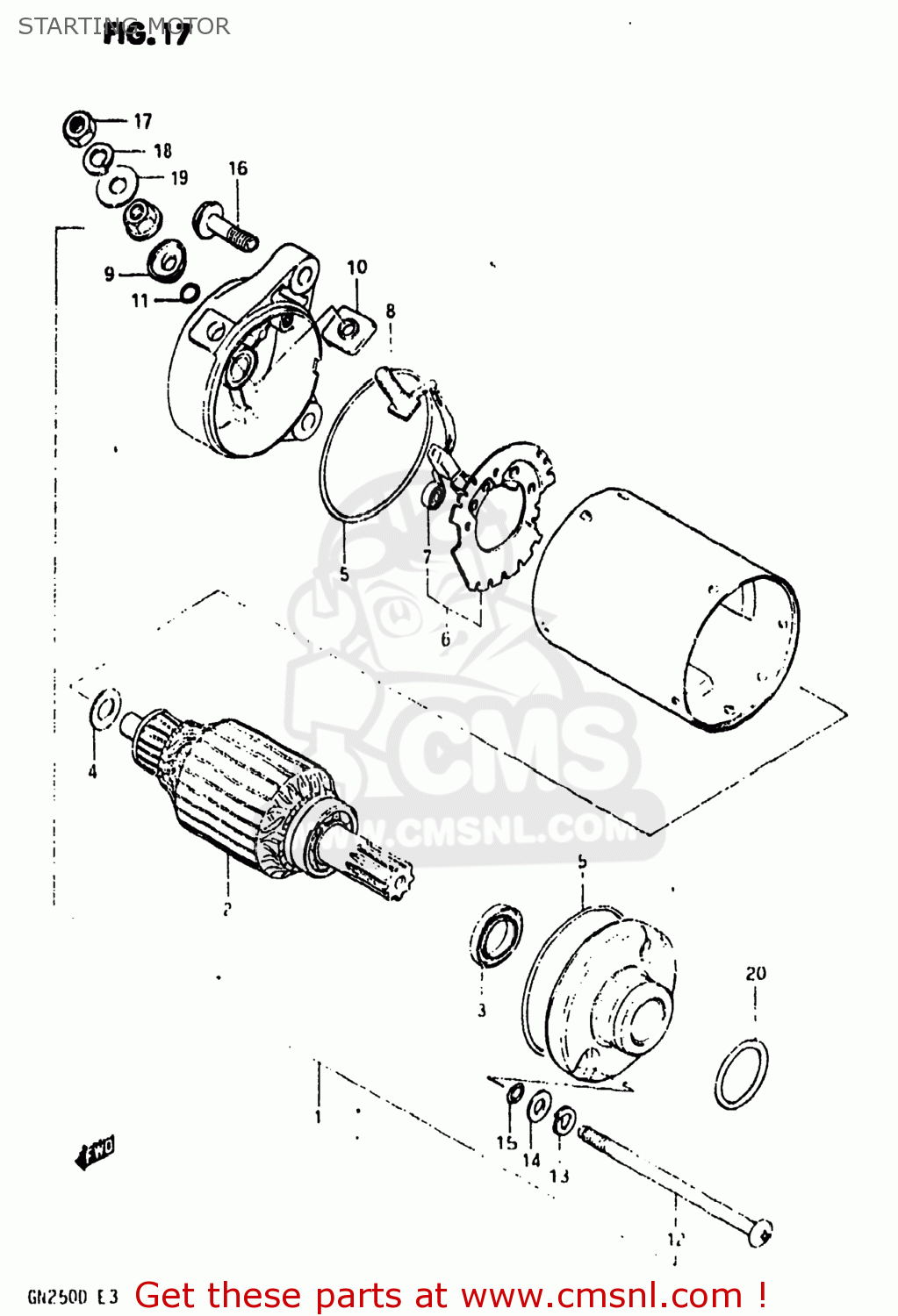

Starting motor diagram GN250 1983 (D) USA (E03)
STARTING MOTOR GN250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110038300
ref: 1
31100-38300-H17
MOTOR ASSEMBLY,STARTING
€ 707.00
2
3131149210
ref: 2
31311-49211-H17
ARMATURE
€ 255.00
3
3115349210
ref: 3
SEAL,OIL
€ 15.00
4
3136147010
ref: 4
31170-43400
SHIM,ARMATURE
€ 3.50
5
3126444110
ref: 5
O RING
€ 8.00
6
3113244110
ref: 6
31132-27A01
HOLDER,BRUSH
€ 47.00
7
3113565010
ref: 7
SPRING
€ 3.00
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
€ 12.50
9
3117238300
ref: 9
BUSHING
€ 4.00
10
3117138300
ref: 10
BUSH,B
€ 5.50
11
3114338300
ref: 11
O RING
€ 3.50
12
3128138300
ref: 12
31281-87402
BOLT
€ 11.50
13
0832121058
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
3116138300
ref: 14
WASHER
€ 2.50
15
3115638300
ref: 15
O RING
€ 3.00
16
0151706258
ref: 16
01550-06257
BOLT
€ 2.50
17
0831022068
ref: 17
08310-00067
NUT 6MM
€ 2.50
18
0832121068
ref: 18
08321-01067
LOCK WASHER
€ 2.50
19
0916006003
ref: 19
09160-06129
WASHER (6.7X16X1.8)
€ 2.00
20
0928024001
ref: 20
O RING(D:2,ID:24.5)
€ 2.00
