MAGNETO
GN250 1983 (D) USA (E03)

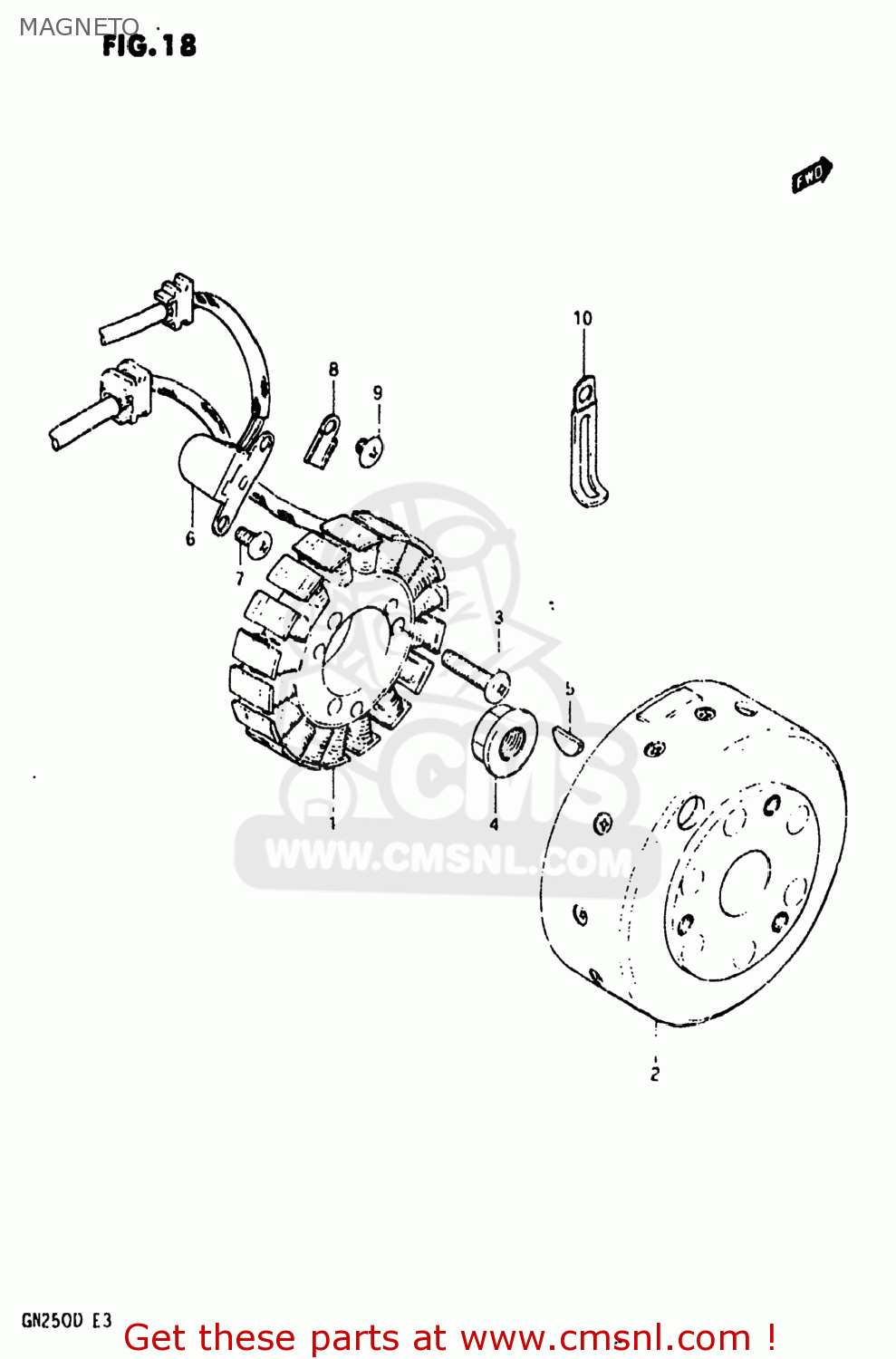

Magneto diagram GN250 1983 (D) USA (E03)
MAGNETO GN250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210138300
ref: 1
32101-38302
STATOR ASSEMBLY
€ 665.00
2
3210238300
ref: 2
32102-38301
ROTOR ASSEMBLY
€ 309.00
3
0211206308
ref: 3
02112-06307
SCREW 6X30
€ 2.50
4
3179249200
ref: 4
NUT,GENERATOR ROTOR
€ 10.00
5
0834131039
ref: 5
KEY
€ 2.00
6
3216037410
ref: 6
COIL ASSY,PICK UP
€ 138.00
7
0211205108
ref: 7
02112-05107
SCREW
€ 2.00
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
€ 1.50
9
0214205067
ref: 9
09125-05117
SCREW 5X6
€ 2.50
10
0940406401
ref: 10
09404-06432
CLAMP L:35
€ 2.50
