CRANKCASE

GN250 1983 (D) USA (E03)

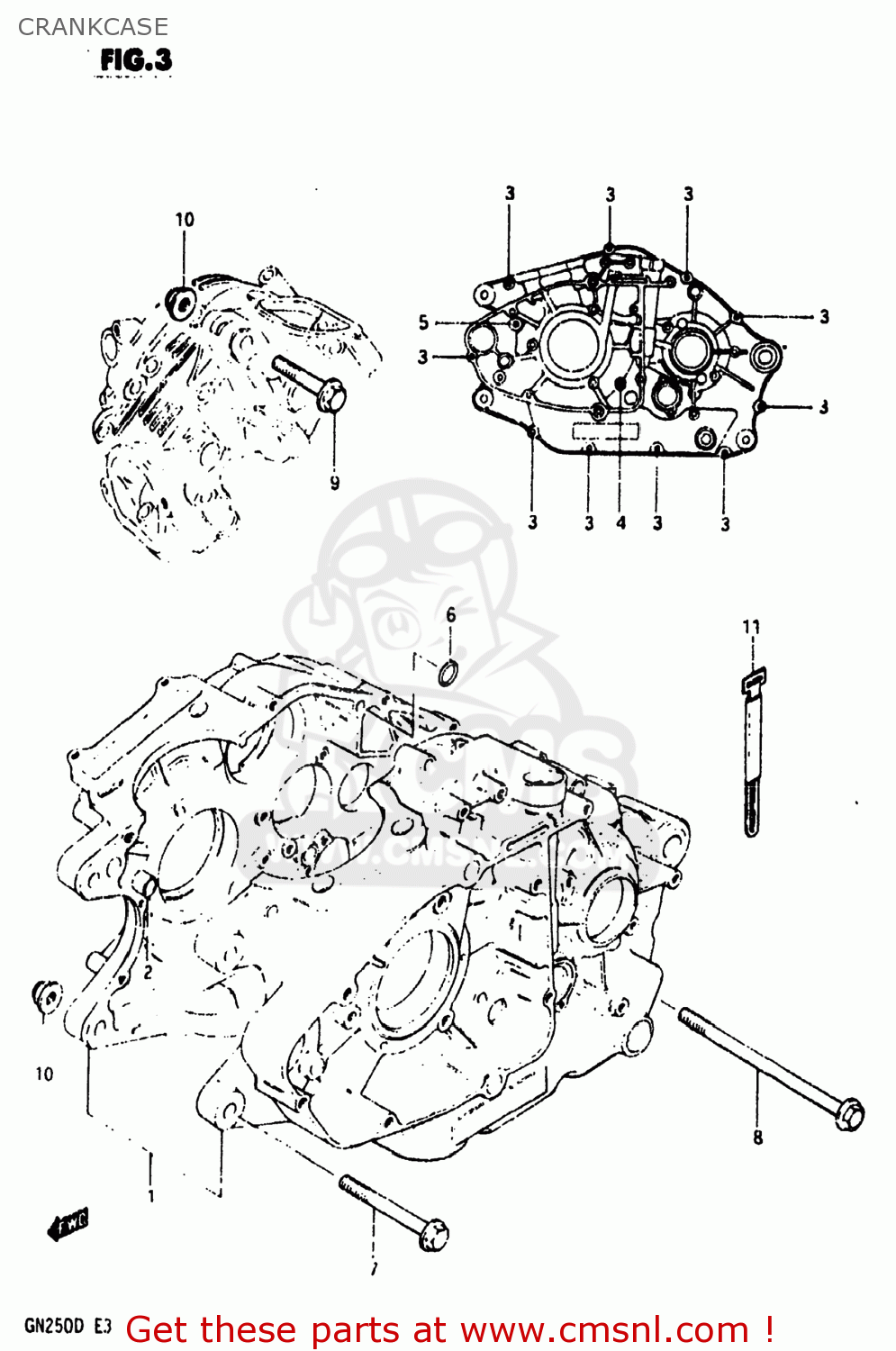

Crankcase diagram GN250 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1130038860
ref: 1
11300-38866

CRANKCASE SET

€ 622.50

0920613001
ref: 2
04211-13189

PIN

€ 2.50

0154706358
ref: 3
01547-06357

BOLT (6X35)

€ 2.50

0154706558
ref: 4
01547-06557

BOLT (6X55)

€ 2.50

0154706608
ref: 5
01547-06607

BOLT

€ 2.50

0928009004
ref: 6
09280-09005

O-RING

€ 4.00

0910308037
ref: 7

BOLT(8X67)

€ 6.50

0910308070
ref: 8

BOLT(8X100)

€ 5.00

0910308081
ref: 9

BOLT(8X50)

€ 3.50

0831931088
ref: 10
08319-3108A

NUT

€ 2.50

1382738300
ref: 11

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50
