SEAT
GN250 1983 (D) USA (E03)

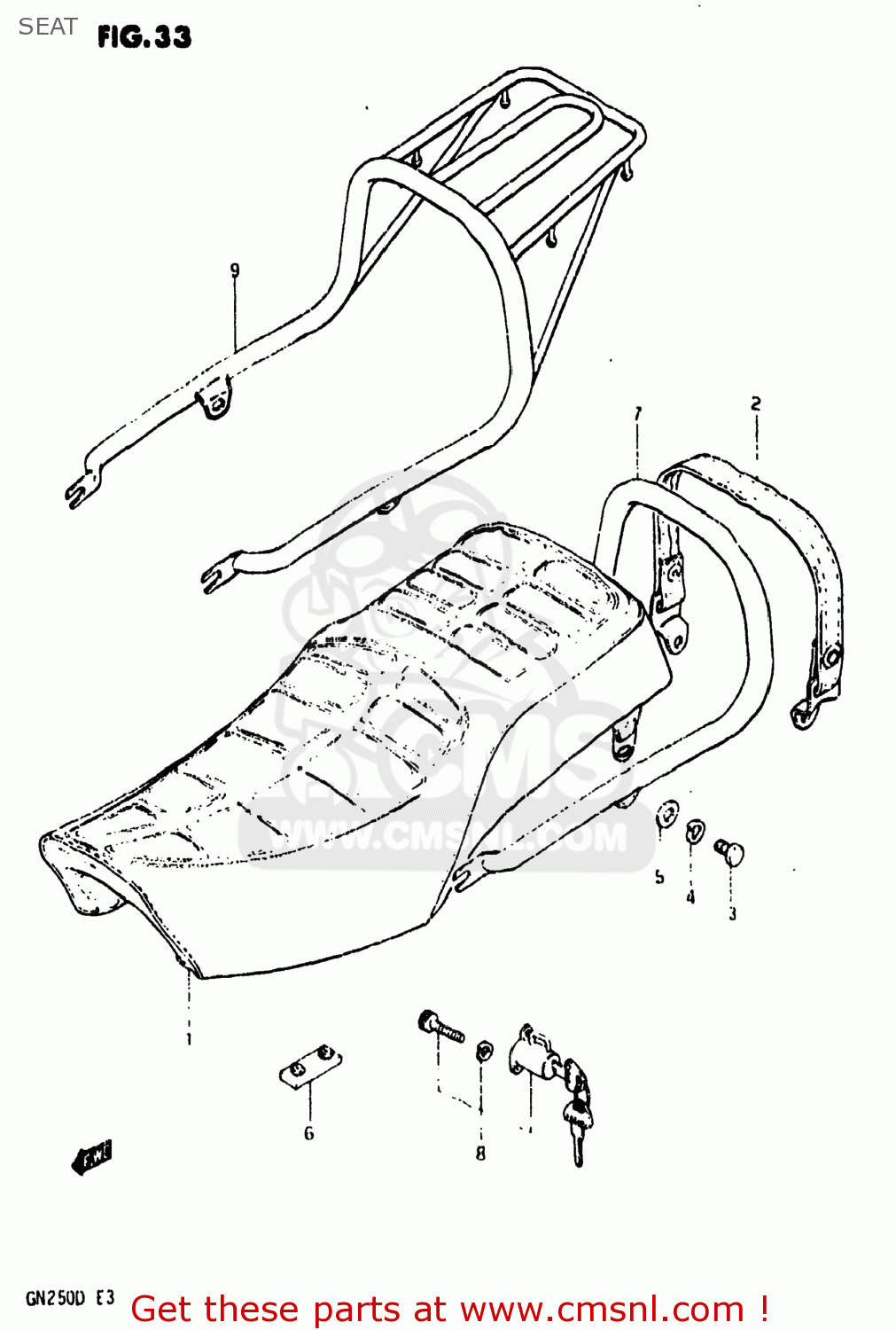

Seat diagram GN250 1983 (D) USA (E03)
SEAT GN250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
451003830047U
ref: 1-1
45100-38312-48H
SEAT ASSEMBLY
€ 288.50
1-2
451003831048H
ref: 1-2
45100-38312-48H
SEAT ASSEMBLY
€ 288.50
2-1
451803830047U
ref: 2-1
45180-38310-48H
BAND,SEAT
€ 27.50
2-2
451803831048H
ref: 2-2
BAND,SEAT GRIP
€ 27.50
3
0120408207
ref: 3
BOLT
€ 3.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
6
0932108009
ref: 6
CUSHION
€ 4.00
7
4621038300
ref: 7
46210-38301
HANDLE,PILLION RIDER
€ 87.50
8
9570038300KEY
ref: 8
95700-38840
LOCK SET,HELMET
€ 44.50
9
4631038300
ref: 9
CARRIER
€ 112.00
