STARTER CLUTCH

GN250 1983 (D) USA (E03)

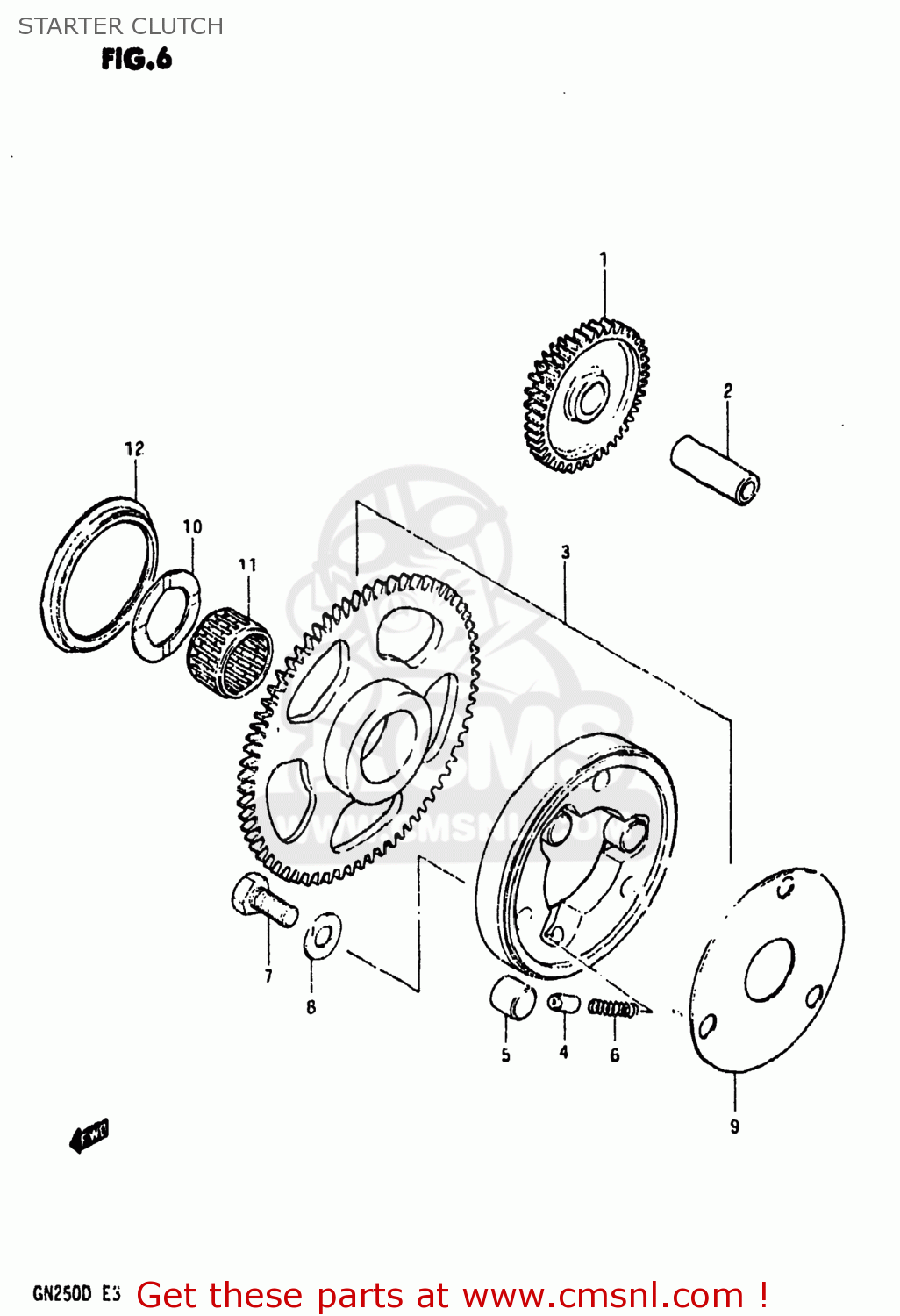

Starter clutch diagram GN250 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1261138300
ref: 1
12611-38301

GEAR,STARTER IDLE

€ 68.50

0920613007
ref: 2

PIN(7.4X13X40)

€ 9.00

1260038812
ref: 3
12600-38814

CLUTCH SET,STARTER

€ 158.00

1263331000
ref: 4

PIECE,PUSH

€ 9.00

0926114001
ref: 5

PIN(14X13)

€ 5.00

0944004015
ref: 6

SPRING

€ 2.50

0910008200
ref: 7
01500-0820A

BOLT

€ 2.00

0821108221
ref: 8

WASHER

€ 2.50

1264949300
ref: 9

SHIM,STARTER CLUTCH HUB

€ 13.50

0916027005
ref: 10

WASHER(27X40X2.5)

€ 10.00

0926327004
ref: 11

BEARING(27X32X21.8)

€ 23.00

0928952001
ref: 12
09289-52002

OIL SEAL

€ 62.00
