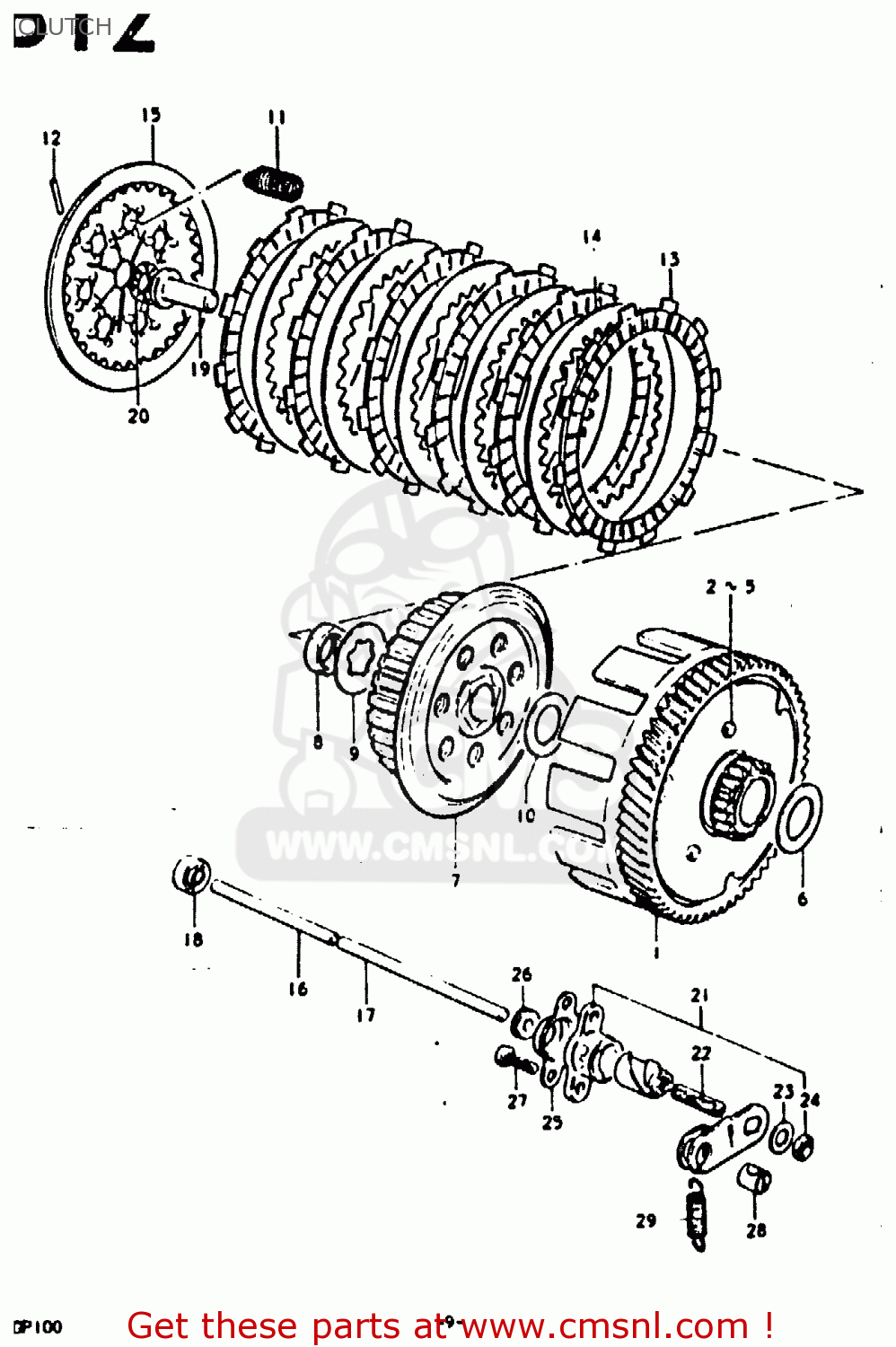

CLUTCH

ref

part #

description

quantity

1-2

2120039101
ref: 1-2

GEAR ASSY, PRIMARY DRIVEN

€ 141.00

2

2123128040
ref: 2

DAMPER,PRIMARY DRIVEN

€ 2.50

3

2123228040
ref: 3

DAMPER,PRI DRIVEN GEAR NO.2

€ 5.00

4

2124128001
ref: 4

PLATE

€ 0.00

5

0502205249
ref: 5

RIVET

€ 1.00

6

0821120323
ref: 6

WASHER

€ 2.50

7

2141028700
ref: 7

HUB,CLUTCH SLEEVE

€ 51.00

8

0914016001
ref: 8

NUT

€ 4.50

9

0916717002
ref: 9

WASHER,LOCK

€ 1.50

10

0821117282
ref: 10

WASHER

€ 2.50

11

0944312010
ref: 11

SPRING

€ 2.00

12

0926102001
ref: 12

PIN(2.5X19.8)

€ 1.50

13

2144128300
ref: 13

PLATE,CLUTCH DRIVE

€ 8.00

14

2145128000
ref: 14

PLATE,CLUTCH DRIVEN (NAS)

€ 5.50

15

2146028200
ref: 15

PLATE,CLUTCH PRESSURE

€ 23.50

16-2

2311139101
ref: 16-2

ROD,CLUTCH PUSH

€ 10.00

17

2311128000
ref: 17

ROD,CLUTCH PUSH

€ 14.50

18

0928506006
ref: 18

OIL SEAL

€ 12.50

19

2312139100
ref: 19

PIECE, PUSH

€ 12.00

20

0926310002
ref: 20

BEARING(10X22X2.8)

€ 7.00

21

2320039101
ref: 21

SCREW ASSY, RELEASE

€ 25.00

22

0913406001
ref: 22

SCREW

€ 2.50

23

0916006019
ref: 23

WASHER(6.5X16X1.2)

€ 1.50

24

0831022068
ref: 24

NUT 6MM

€ 1.50

25

2324123000
ref: 25

COVER,CLUTCH RELEASE SCREW

€ 12.00

26

0928105001
ref: 26

SEAL,DUST(5.3X13X5)

€ 2.50

27

0211205168
ref: 27

SCREW

€ 1.50

28

2322207000
ref: 28

PIECE,RELEASE ARM END

€ 5.00

29

0944308001
ref: 29

SPRING

€ 2.00
