CRANKCASE

GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

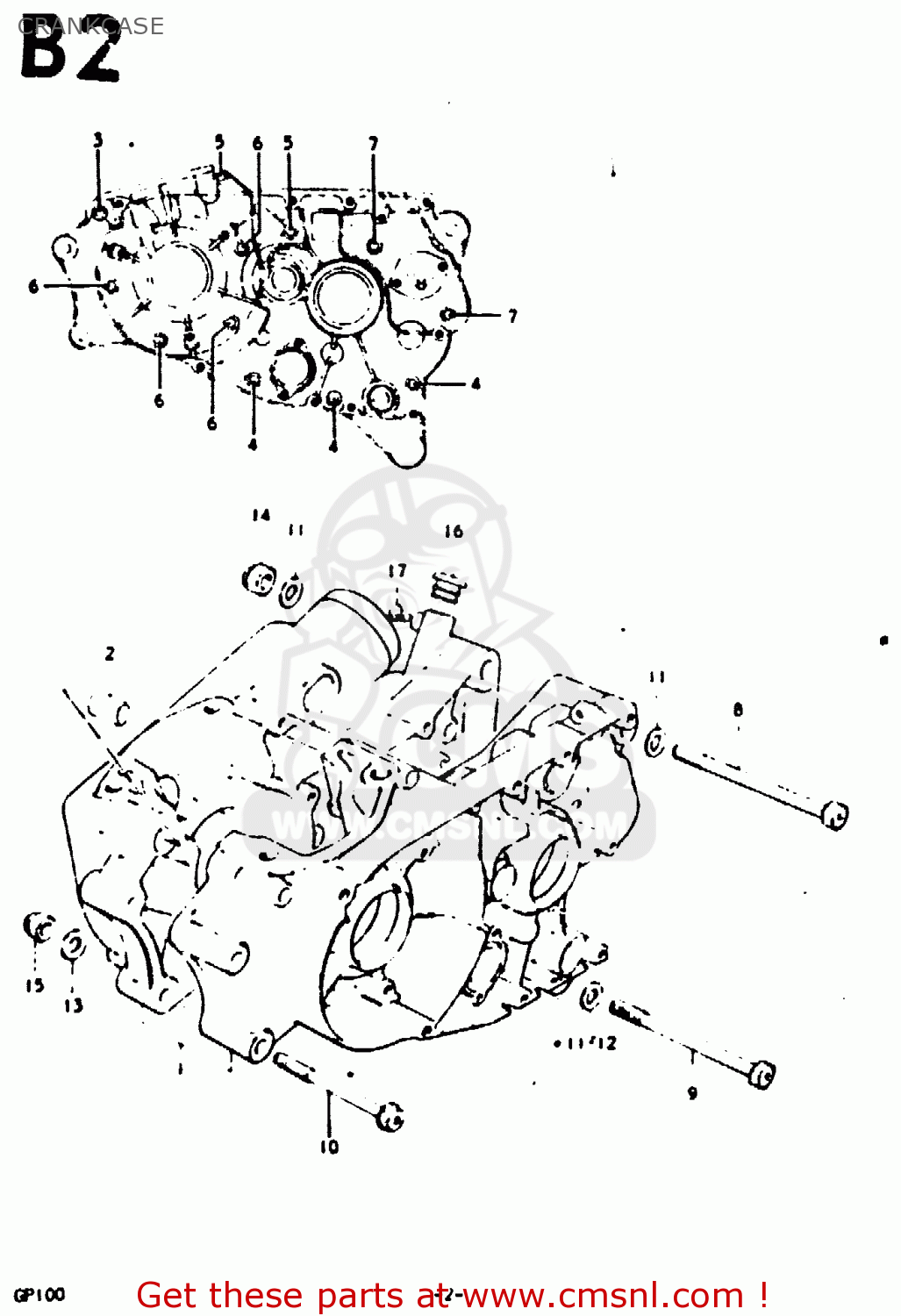

Crankcase diagram GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-2

1130039832
ref: 1-2

CRANKCASE SET

€ 436.00

0920613001
ref: 2

PIN

€ 2.50

0211206708
ref: 3

SCREW 6X70

€ 3.00

0211206658
ref: 4

SCREW 6X65

€ 2.00

0211206557
ref: 5

SCREW

€ 2.50

6-2

0211206508
ref: 6-2

SCREW

€ 2.50

0211206358
ref: 7

SCREW (6X35)

€ 2.50

0910010099
ref: 8

BOLT 10X120

€ 3.50

9-2

0910010116
ref: 9-2

BOLT 10X115

€ 3.50

10-2

0151708908
ref: 10-2

BOLT 8X90

€ 3.50

0832211108
ref: 11

WASHER

€ 2.50

0916010005
ref: 12

WASHER(10.5X20X3.2)

€ 2.00

14-2

0831931108
ref: 14-2

NUT

€ 3.00

15-2

0831931088
ref: 15-2

NUT

€ 2.50

0925014002
ref: 16

Plug

€ 4.50

0211206068
ref: 17

SCREW,6X6

€ 2.00
