KICK STARTER

GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

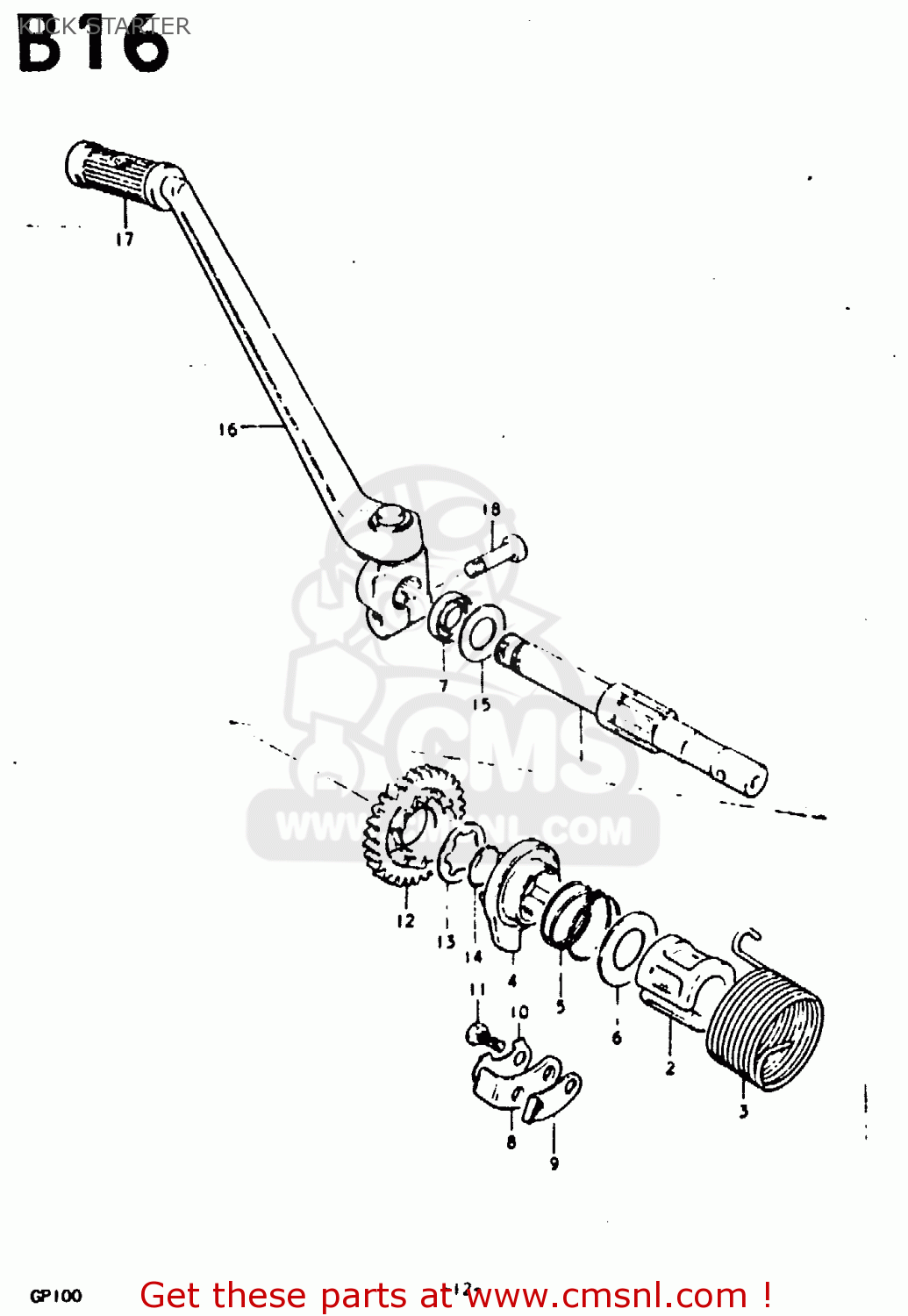

Kick starter diagram GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

2621139100
ref: 1

SHAFT,KICK STARTER

€ 49.50

2622141100
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 6.50

0944845008
ref: 3

SPRING

€ 6.00

4-2

2623130001
ref: 4-2

STARTER,KICK

€ 44.00

0944032002
ref: 5

SPRING

€ 2.00

0821117342
ref: 6

WASHER

€ 3.00

0928516002
ref: 7

SEAL,OIL(16X30X8)

€ 4.50

2623230000
ref: 8

GUIDE,KICK STARTER

€ 5.50

2623330000
ref: 9

STOPPER,KICK STARTER

€ 4.00

0916906003
ref: 10

WASHER

€ 1.50

0110706168
ref: 11

BOLT, UPPER

€ 2.00

2624048000
ref: 12

GEAR,KICK STARTER DRIVE

€ 75.00

0916722007
ref: 13

WASHER,LOCK

€ 3.00

0938022003
ref: 14

CIRCLIP

€ 2.00

0916016003
ref: 15

WASHER(16X30X1)

€ 2.50

2630039100
ref: 16

LEVER ASSY,KICK STARTER

€ 172.00

2635201000
ref: 17

RUBBER,KICK STARTER PEDAL

€ 3.00

0110708258
ref: 18

BOLT

€ 2.00
