MAGNETO (E24)

GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

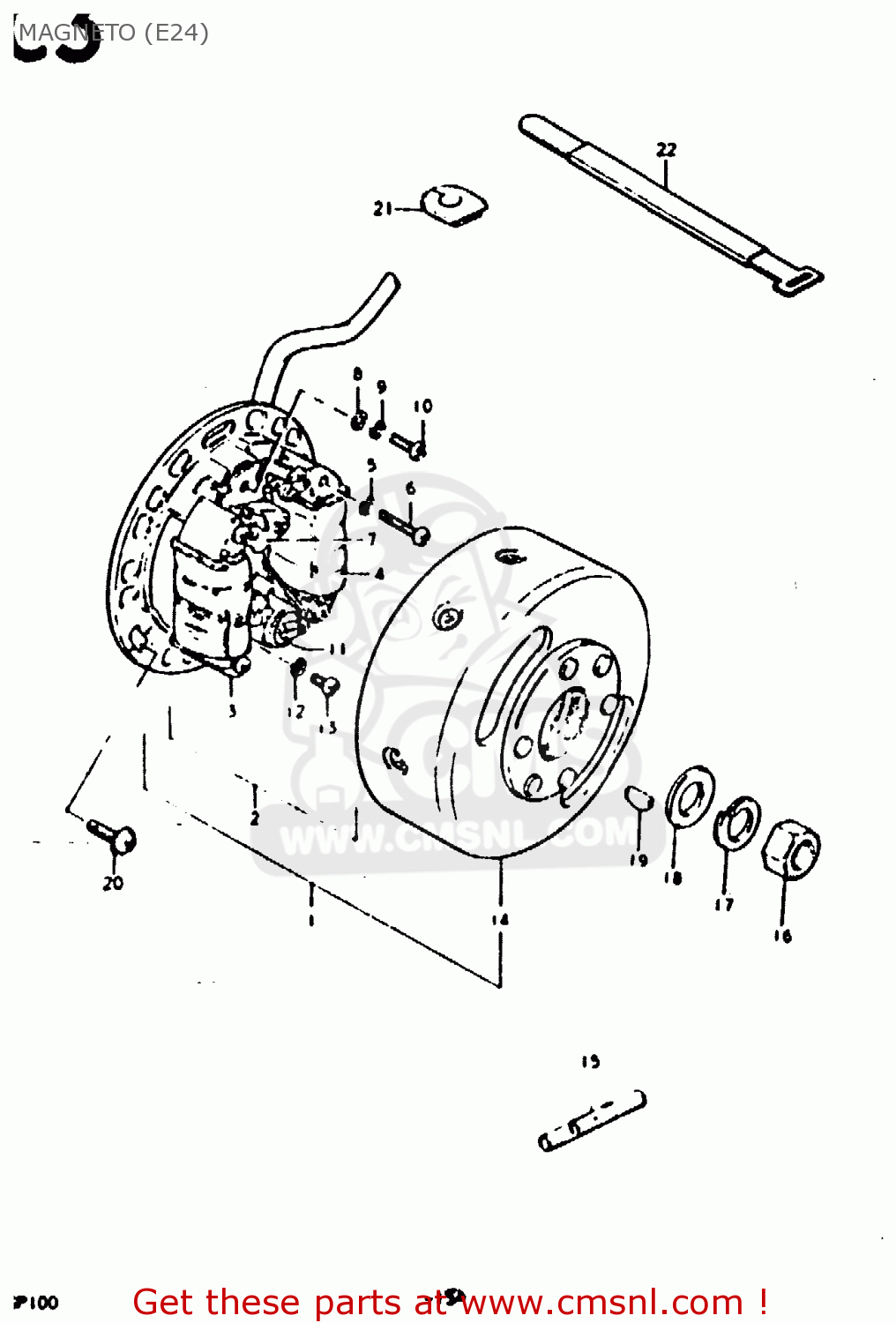

Magneto (e24) diagram GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

MAGNETO (E24) GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)
MAGNETO (E24) GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)
MAGNETO (E24) GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)
prices are in EUR
ref
part #
description
quantity
1
3210048010
ref: 1
MAGNETO ASSY
€ 80.00
2
3210148010
ref: 2
STARTER ASSY
3210148010
€ 80.00
3
3212048010
ref: 3
COIL,LIGHTING
3212048010
€ 30.50
4
3214048010
ref: 4
COIL,PRIMARY
3214048010
€ 57.50
5
0832121048
ref: 5
LOCK WASHER
0832121048
€ 1.50
6
0211204258
ref: 6
SCREW 4X25
0211204258
€ 2.00
7
3224043012
ref: 7
POINT ASSY,CONTACT
3224043012
€ 15.00
8
0832221048
ref: 8
WASHER
0832221048
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 1.50
10
0912504001
ref: 10
SCREW(4X10)
0912504001
€ 4.50
11
3234143012
ref: 11
CONDENSER
3234143012
€ 11.50
12
0832121048
ref: 12
LOCK WASHER
0832121048
€ 1.50
13
0211204108
ref: 13
SCREW 4X10
€ 1.50
14
3210248010
ref: 14
ROTOR
€ 211.50
15
3713203000
ref: 15
CONNECTOR
3713203000
€ 2.00
16
0914010003
ref: 16
NUT (10MM)
0914010003
€ 3.50
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 1.50
18
0832221108
ref: 18
WASHER
0832221108
€ 2.00
19
0834131039
ref: 19
KEY
0834131039
€ 1.50
20
0913905011
ref: 20
SCREW(5X14)
0913905011
€ 3.00
21
0930909007
ref: 21
GROMMET
0930909007
€ 2.50
22
0940718301
ref: 22
CLAMP
0940718301
€ 5.50
