MAGNETO

GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

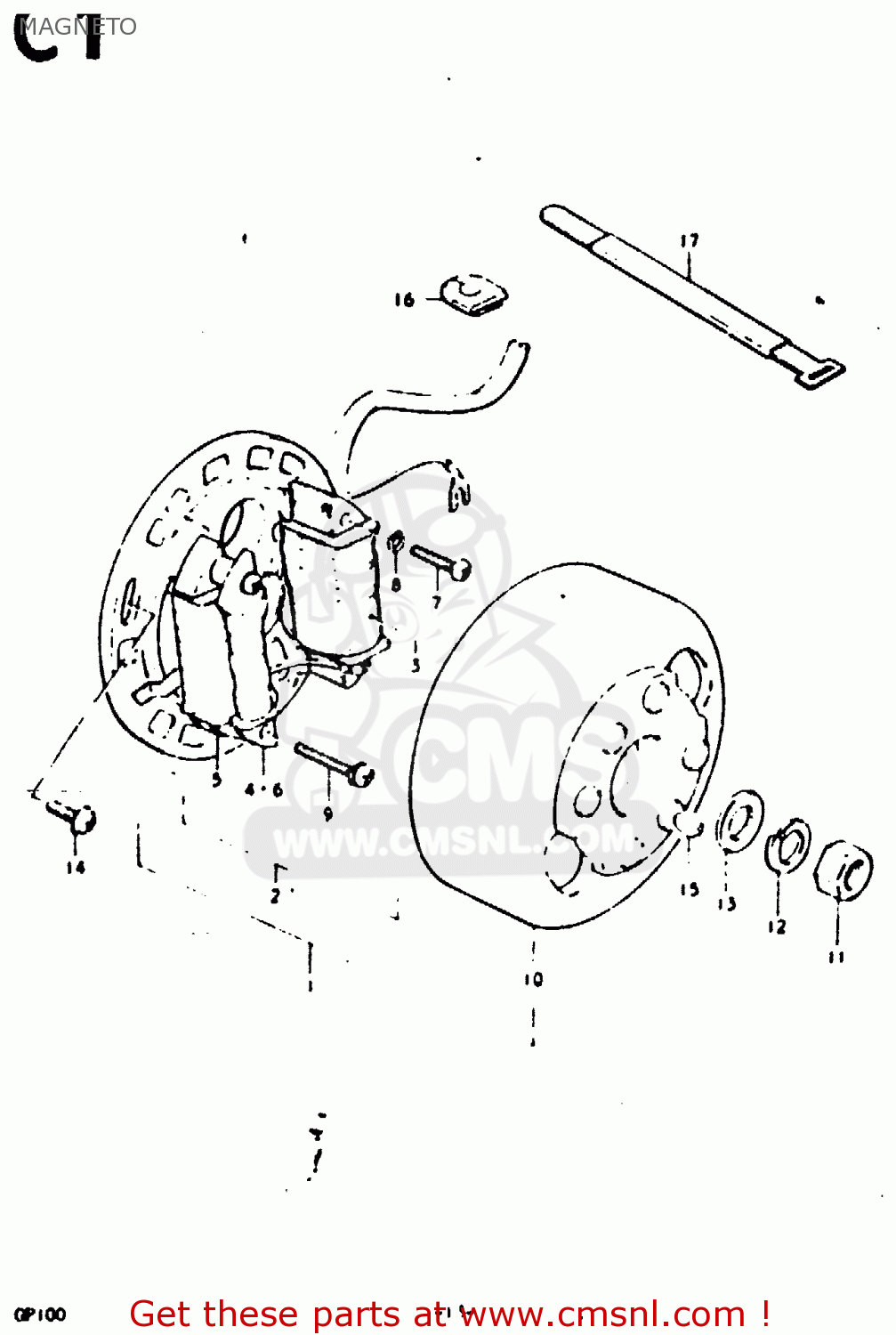

Magneto diagram GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-2

3210039230
ref: 1-2

MAGNETO ASSY

€ 0.00

2-2

3210139230
ref: 2-2

STATOR ASSY

€ 0.00

3212048010
ref: 3

COIL,LIGHTING

€ 30.50

3214039230
ref: 5

COIL,PRIMARY

€ 52.00

3215039230
ref: 6

COIL,PULSER

€ 0.00

0211204258
ref: 7

SCREW 4X25

€ 2.00

0832121048
ref: 8

LOCK WASHER

€ 1.50

3235139210
ref: 9

SCREW

€ 2.50

10-2

3210239230
ref: 10-2

ROTOR

€ 0.00

0914010003
ref: 11

NUT (10MM)

€ 3.50

0832121108
ref: 12

LOCK WASHER

€ 1.50

0832221108
ref: 13

WASHER

€ 2.00

0913905011
ref: 14

SCREW(5X14)

€ 3.00

0834131039
ref: 15

KEY

€ 1.50

0930909007
ref: 16

GROMMET

€ 2.50

0940718301
ref: 17

CLAMP

€ 5.50
