FRAME

GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

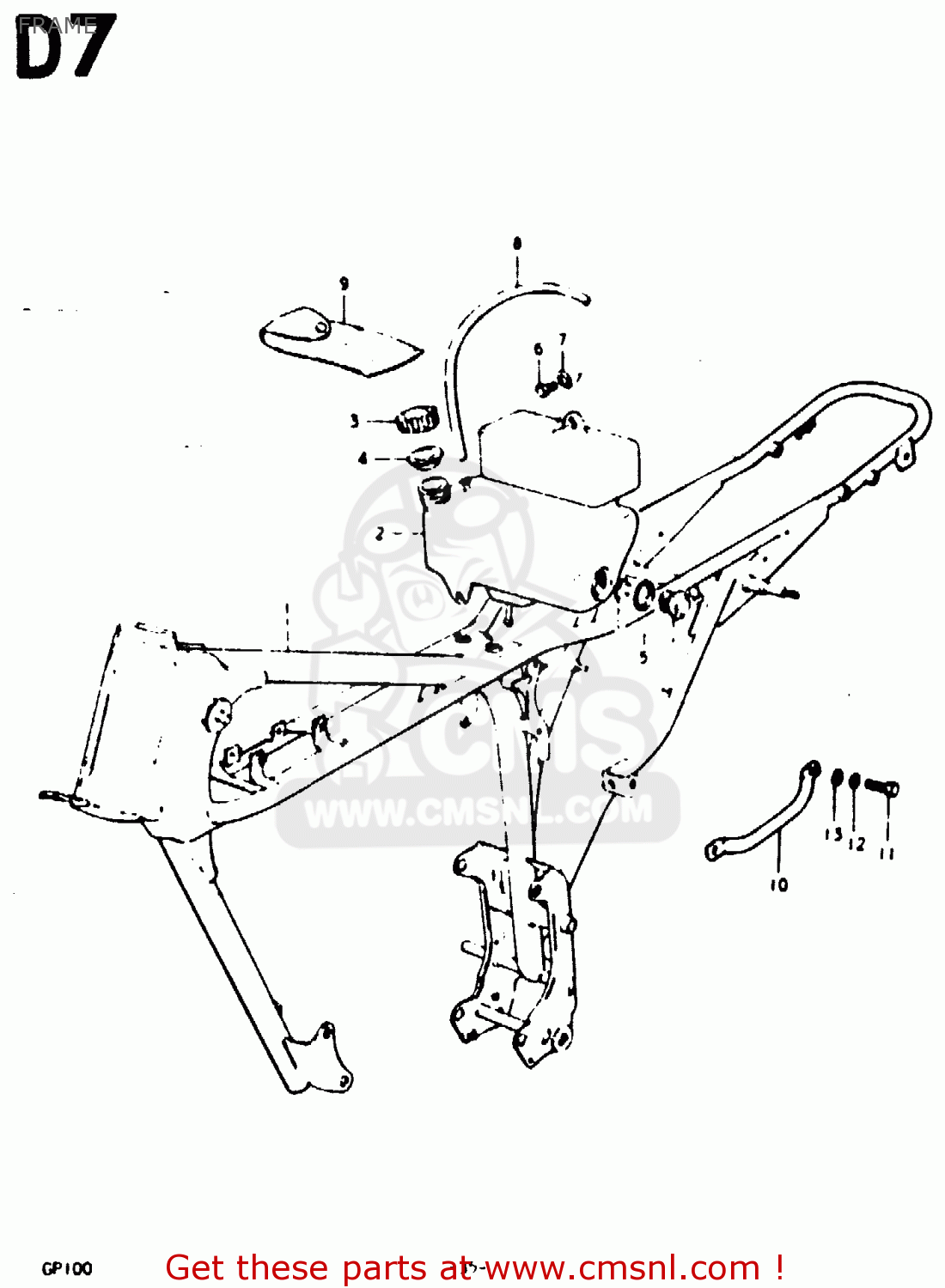

Frame diagram GP100U 1979 (N) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-2

4110039103019
ref: 1-2
N/UN

FRAME (BLACK)

€ 0.00

4461139100
ref: 2

TANK,OIL

€ 48.50

4465105003
ref: 3
FROM 44651-05002

CAP,OIL TANK

€ 3.50

4466127000
ref: 4

GASKET,OIL TANK CAP (NAS)

€ 25.50

4460046810
ref: 5

LENS SET,OIL LEVEL

€ 5.00

0110706168
ref: 6

BOLT, UPPER

€ 2.00

0916006007
ref: 7

WASHER

€ 1.50

0934405005
ref: 8

HOSE

€ 10.50

0980000108
ref: 9
*

TOOL SET

€ 21.00

4141139600
ref: 10

GRIP, FRAME HANDLE

€ 16.00

0110708128
ref: 11

BOLT 8X12

€ 2.50

0832121088
ref: 12

LOCK WASHER

€ 1.50

0832211088
ref: 13

WASHER

€ 1.50
