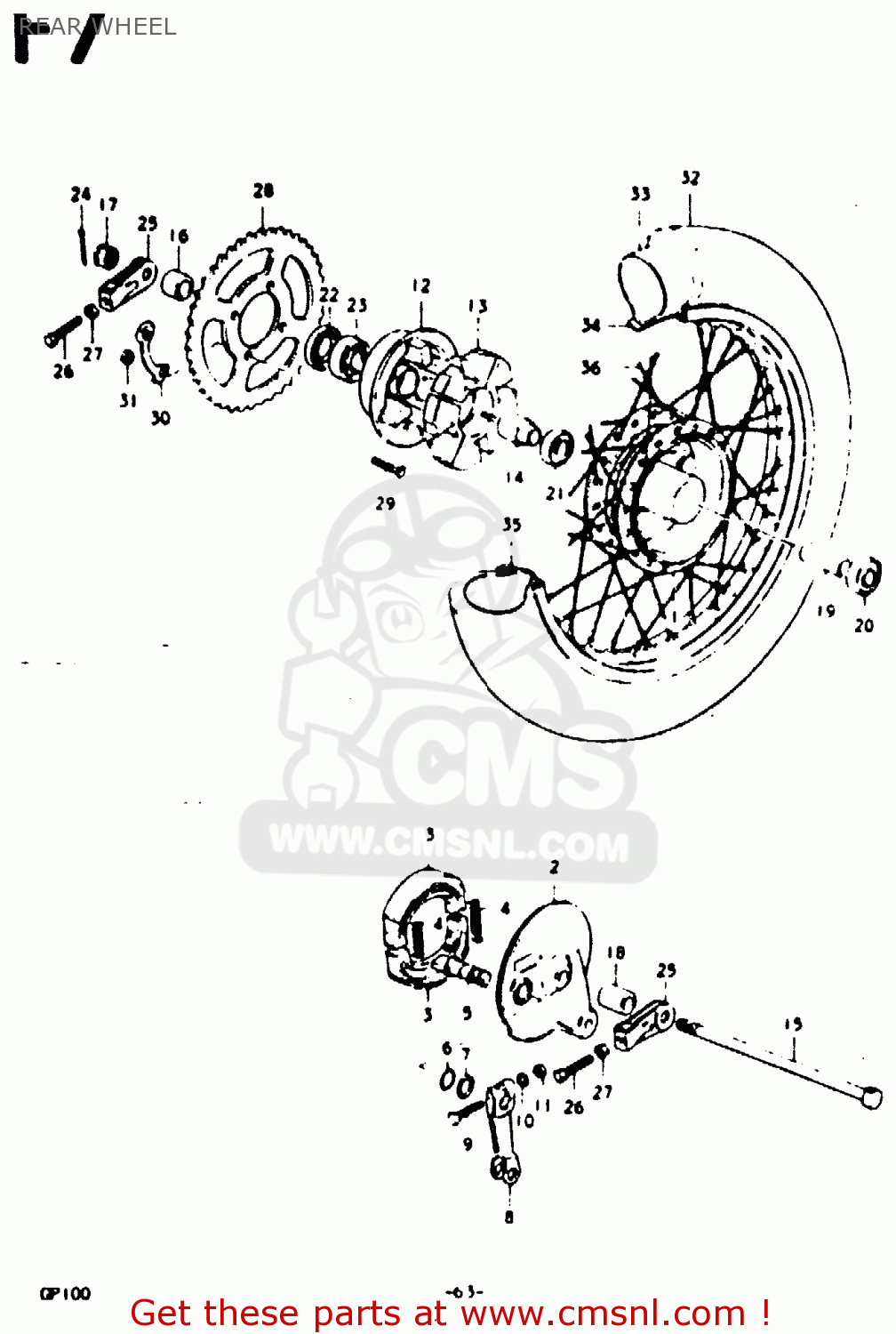

REAR WHEEL

ref

part #

description

quantity

1-2

6411035001
ref: 1-2

HUB,REAR WHEEL

€ 199.00

2-4

6421046002
ref: 2-4
FROM 64210-46001

PANEL, REAR HUB

€ 80.50

3

5441001005
ref: 3

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129301
ref: 5
TO 54441-29302

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

6445139100
ref: 8

LEVER,RR BRAKE CAM

€ 48.00

9

0910006078
ref: 9

BOLT(6X33)

€ 2.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

0831011068
ref: 11

NUT

€ 2.50

12

6461139200
ref: 12

DRUM,RR SPROCKET MOUNTING

€ 43.00

13

6465101001
ref: 13
FROM 64651-01000

CUSHION,REAR DRUM

€ 9.00

14

6473343000
ref: 14

RETAINER,RR SPROCKET DRUM

€ 7.00

15

6471139200
ref: 15

AXLE, REAR

€ 20.50

16

0918012081
ref: 16

SPACER 12X25X2

€ 5.50

17

0831431128
ref: 17

NUT 12MM

€ 2.00

18

0918012065
ref: 18

SPACER(12.2X22X39)

€ 7.50

19

0918012033
ref: 19

SPACER (12.6X19X58)

€ 4.50

20

0814363017
ref: 20

BEARING

€ 14.50

21

0814362017
ref: 21

BEARING

€ 11.50

22

0928525001
ref: 22

SEAL OIL(25X40X6)

€ 12.50

23

0926217008
ref: 23

BEARING

€ 14.00

24

0411130308
ref: 24

COTTER PIN

€ 1.50

25

6141039000
ref: 25

ADJUSTER, CHAIN

€ 8.00

26

0910408006
ref: 26

BOLT

€ 3.00

27

0831012088
ref: 27

NUT

€ 2.00

28

6451139210
ref: 28

SPROCKET,RR

€ 33.50

29

0910508001
ref: 29

BOLT(8X33.5)

€ 2.50

30

0916908011
ref: 30

WASHER

€ 2.50

31

0831012088
ref: 31

NUT

€ 2.00

32

6510036010
ref: 32

TIRE (2.75-18)

€ 54.00

33

5520011601
ref: 33

TUBE,INNER

€ 24.50

34

5526114010
ref: 34

PROTECTOR,WHEEL,INNER

€ 3.50

35

5531112120
ref: 35

RIM,WHEEL(1.40X18)

€ 85.00

36

6530012828
ref: 36

SPOKE SET,REAR

€ 26.00

all assemblies
