CARBURETOR
GS1000 1979 (S) GENERAL EXPORT (E01)

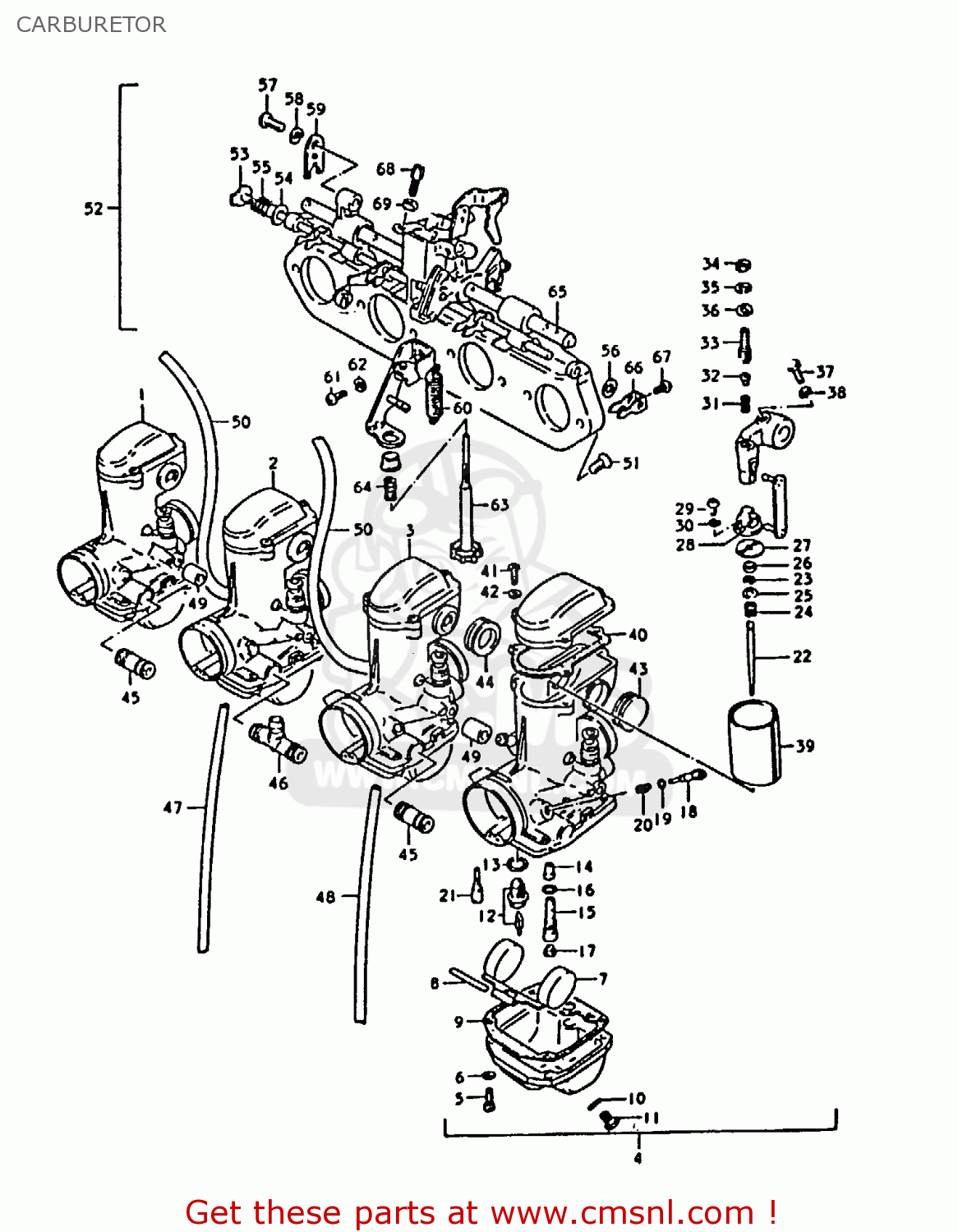

Carburetor diagram GS1000 1979 (S) GENERAL EXPORT (E01)
CARBURETOR GS1000 1979 (S) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
0
1320049030
ref: 0
CARBURETOR ASSY
€ 0.00
1
1320149030
ref: 1
LH
CARBURETOR ASSY., NO.1
€ 0.00
2
1320249030
ref: 2
CENTER LH
CARBURETOR ASSY, NO.2
€ 254.00
3
1320349030
ref: 3
CENTER RH
CARBURETOR ASSY, NO.4
€ 0.00
4
1320449030
ref: 4
RH
CARBURETOR ASSY, NO.4
€ 0.00
5
0211204168
ref: 5
SCREW
€ 1.00
6
0832121048
ref: 6
LOCK WASHER
€ 2.00
7
1325243010
ref: 7
FLOAT
€ 41.00
8
1325401010
ref: 8
PIN,FLOAT
€ 3.00
9
1325143011
ref: 9
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
10
1324643010
ref: 10
O RING
€ 4.00
11
1324745010
ref: 11
SCREW
€ 7.50
12
1337045010
ref: 12
VALVE ASSEMBLY,NEEDLE
€ 51.50
13
1339258600
ref: 13
GASKET,VALVE SEAT (NAS)
€ 2.00
14
0949400230
ref: 14
0-4
JET, NEEDLE
€ 0.00
15
1338545010
ref: 15
PIPE,BLEEDER
€ 36.00
16
1324643010
ref: 16
O RING
€ 4.00
17
0949195003
ref: 17
#95
JET
€ 8.50
18
1326949020
ref: 18
SCREW,PILOT AIR
€ 11.50
19
1329533010
ref: 19
O RING
€ 4.50
20
1326801010
ref: 20
SPRING
€ 3.50
21
0949215004
ref: 21
#15
JET
€ 15.00
22
1338345030
ref: 22
5DL36-3
NEEDLE,JET
€ 19.50
23
1339410010
ref: 23
CLIP
€ 4.50
24
1338847010
ref: 24
SPRING
€ 7.00
25
1338247010
ref: 25
WASHER,JET NEEDLE
€ 3.00
26
1338747010
ref: 26
RING
€ 7.50
27
1358147010
ref: 27
PLATE,THROTTLE VALVE
€ 5.50
28
1339849030
ref: 28
CONNECTOR
€ 0.00
29
0211103148
ref: 29
SCREW
€ 1.50
30
0832121038
ref: 30
LOCK WASHER
€ 1.50
31
1354345010
ref: 31
SPRING
€ 2.50
32
1354443010
ref: 32
PIN,CARBURETOR
€ 2.50
33
1354845010
ref: 33
SCREW
€ 10.00
34
0831011058
ref: 34
NUT
€ 2.50
35
0832121058
ref: 35
LOCK WASHER
€ 2.00
36
0832221058
ref: 36
WASHER
€ 2.50
37
0110405168
ref: 37
BOLT
€ 1.50
38
0832121058
ref: 38
LOCK WASHER
€ 2.00
39
1355145030
ref: 39
CA:1.5
VALVE,THROTTLE
€ 39.00
40
1326643010
ref: 40
GASKET (NAS)
€ 7.00
41
0211204168
ref: 41
SCREW
€ 1.00
42
0832121048
ref: 42
LOCK WASHER
€ 2.00
43
1367843010
ref: 43
PIPE,DELIVERY
€ 4.50
44
1355645010
ref: 44
SEAL
€ 15.50
45
1368545030
ref: 45
NIPPLE
€ 24.50
46
1368545040
ref: 46
NIPPLE
€ 28.00
47
1368345070
ref: 47
L:525
HOSE
€ 10.00
48
1368332410
ref: 48
L:450
HOSE
€ 10.00
49
1368333110
ref: 49
6X10X16
HOSE
€ 18.00
50
1368345050
ref: 50
5X8X450
HOSE 4.5X8X390
€ 14.00
51
0212206148
ref: 51
SCREW
€ 2.50
52
1321049020
ref: 52
CARBURETOR ASSEMBLY
€ 0.00
53
1341049020
ref: 53
SHAFT,STARTER
€ 0.00
54
1343249020
ref: 54
WASHER
€ 3.00
55
1343749020
ref: 55
SPRING
€ 1.50
56
1361545010
ref: 56
WASHER,STARTER SHAFT
€ 3.50
57
0211205168
ref: 57
SCREW
€ 2.50
58
0832121058
ref: 58
LOCK WASHER
€ 2.00
59
1355733110
ref: 59
GASKET
€ 3.50
60
1357345010
ref: 60
SPRING,THROTTLE RETURN
€ 23.00
61
0211205168
ref: 61
SCREW
€ 2.50
62
0832121058
ref: 62
LOCK WASHER
€ 2.00
63
1326749000
ref: 63
ADJUSTER
€ 0.00
64
1326833110
ref: 64
SPRING,THROTTLE SCREW
€ 4.00
65
1355043010
ref: 65
SHAFT ASSEMBLY
€ 44.50
66
1342245030
ref: 66
LEVER,STARTER
€ 6.00
67
1360531210
ref: 67
SCREW
€ 3.00
68
1357748110
ref: 68
ADJUSTER,CABLE
€ 8.00
69
1366116600
ref: 69
NUT
€ 5.00
