prices are in EUR

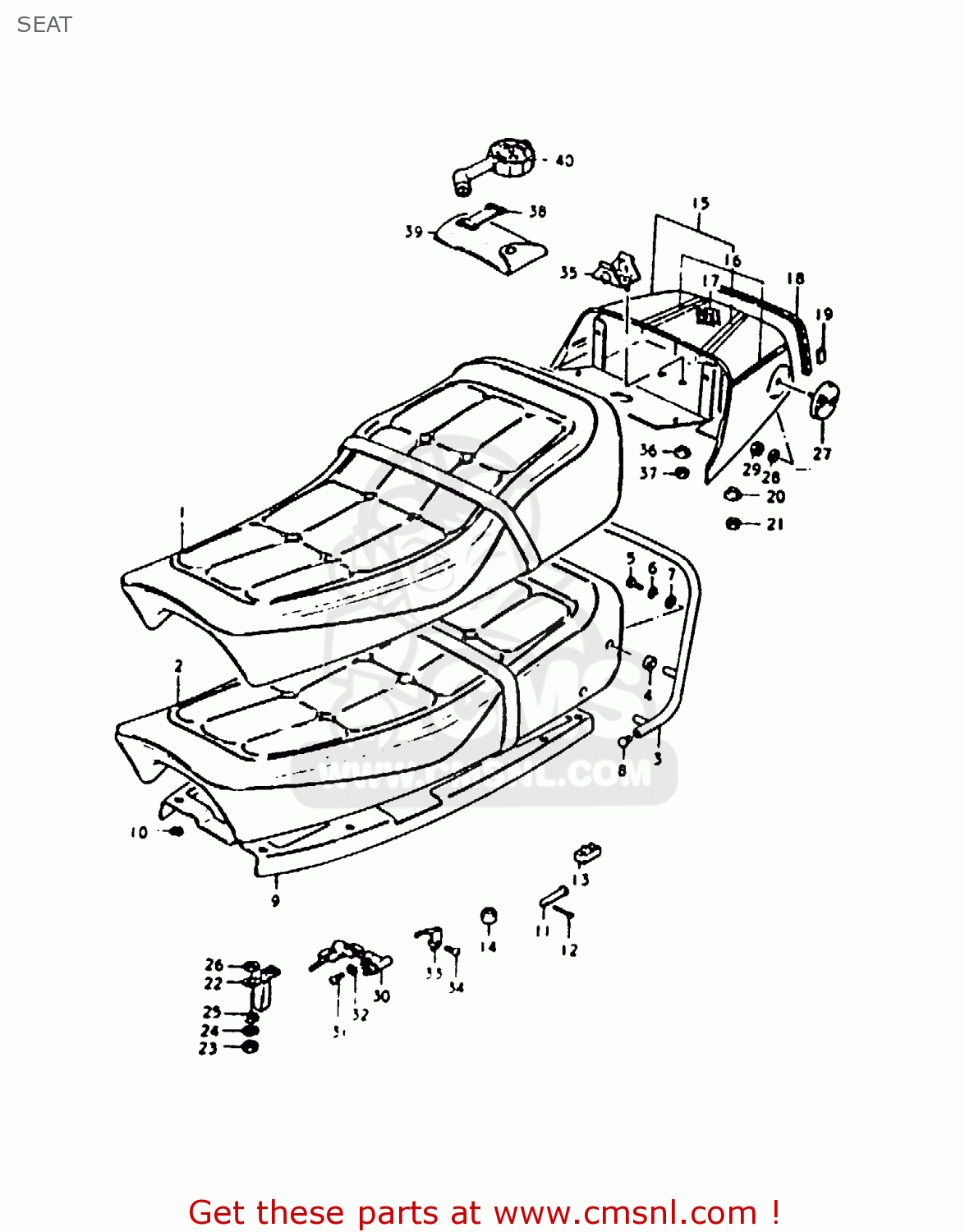

ref
part #
description
quantity
1-1
SEAT, STEP TYPE (WITH BAND)
2-1
SEAT ASSEMBLY
2-2
SEAT, FLAT TYPE (WITH BAND)
3
HANDLE,PILLION RIDER
4
CUSHION
5
BOLT
6
LOCK WASHER
7
WASHER
8
END,SHEET HANDLE
10
NUT
11
PIN
12
PIN
13
CUSHION
14
CUSHION
17
EMBLEM,SEAT TAIL COVER
19
CLIP,SEAT TAIL COVER M
20
WASHER
21
NUT 6MM
22
STRIKER,SEAT LOCK
23
NUT
24
LOCK WASHER
25
WASHER
26
WASHER (6.5X20X1.2)
27
REFLEX REFLECTOR,RR
29
NUT
30
LOCK ASSY,SEAT
32
LOCK WASHER
33
SPRING,HELMET HOLDER
34
SCREW
35
HOLDER,TOOL
36
WASHER
37
NUT
38
BAND
40
GAUGE ASSEMBLY,AIR PRESSURE
