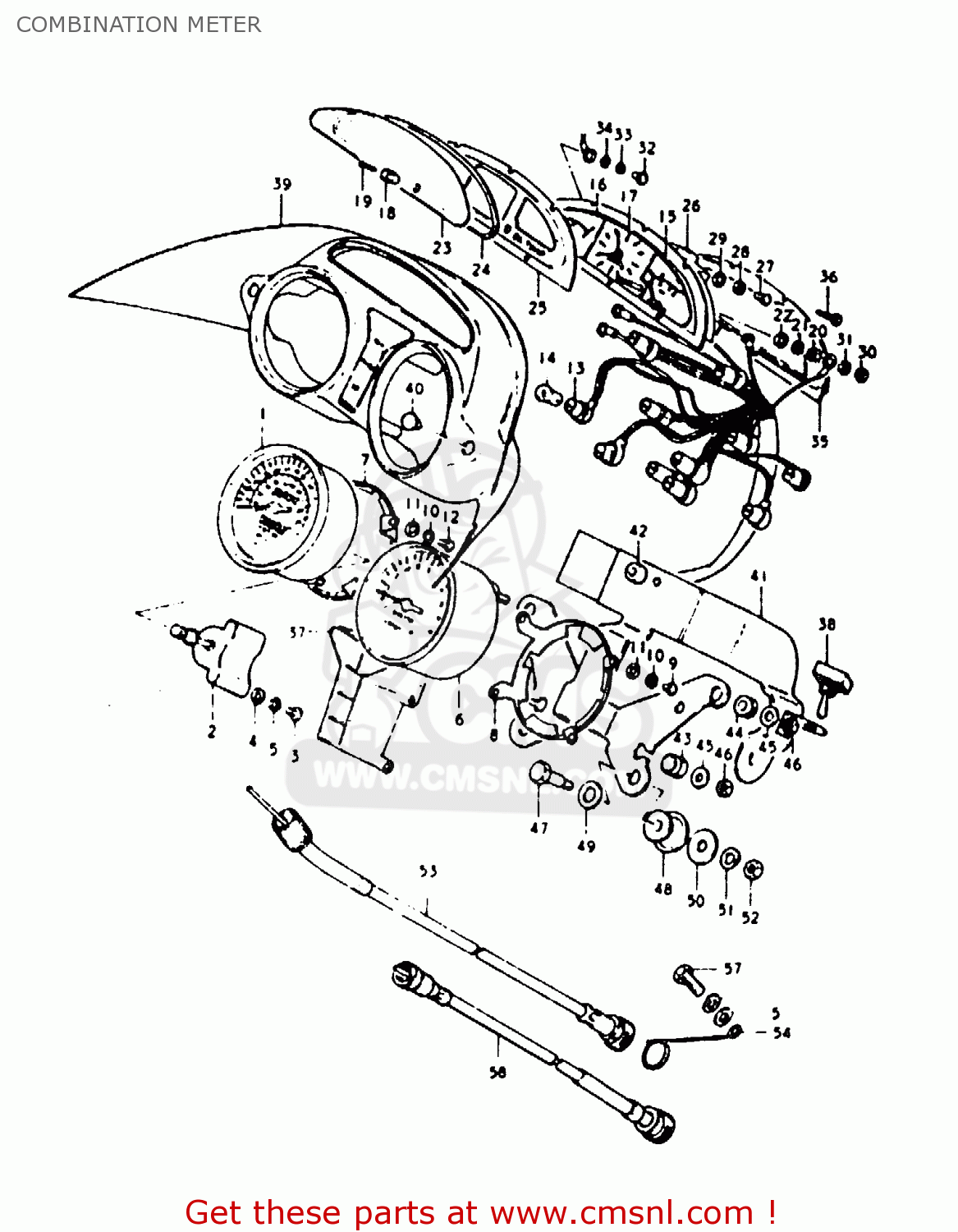

COMBINATION METER

ref

part #

description

quantity

0

3410049020
ref: 0
KILO SCALE

COMBINATION METER ASSY

€ 1,461.50

0

3410049081
ref: 0
MILE/KILO SCALE

COMBINATION METER

€ 1,564.50

1-1

3410149020
ref: 1-1

SPEEDOMETER (KM/H)

€ 330.50

1-2

3410149080
ref: 1-2

SPEEDOMETER ASSEMBLY

€ 230.00

2

3472049020
ref: 2

HOLDER,TRIP METER RESET

€ 30.50

3

0211204128
ref: 3

SCREW

€ 1.50

4

0832221048
ref: 4

WASHER

€ 2.00

5

0832121048
ref: 5

LOCK WASHER

€ 2.00

6-1

3421049020
ref: 6-1

TACHOMETER (X1000 R/MIN)

€ 362.00

6-2

3421049080
ref: 6-2
FMVSS

TACHOMETER

€ 0.00

7

3419549020
ref: 7

HOLDER,METER

€ 17.00

8

3429549020
ref: 8

HOLDER,TACHOMETER

€ 15.50

9

0211203088
ref: 9

SCREW

€ 1.50

10

0832121038
ref: 10

LOCK WASHER

€ 1.50

11

0832221038
ref: 11

WASHER

€ 2.00

12

3418349020
ref: 12
4 THREAD, L:14

SCREW

€ 0.00

13

3417349020
ref: 13

SOCKET,METER

€ 0.00

14

0947112001
ref: 14
12V, 3.4W

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

15-1

3473049020
ref: 15-1

TEMPERATURE METER, OIL (DEGREE C)

€ 97.00

15-2

3473049080
ref: 15-2

METER,OIL TEMPERATURE

€ 88.50

16

3432049020
ref: 16

FUEL METER

€ 118.50

17

3460049020
ref: 17

CLOCK ASSEMBLY

€ 197.50

18

3466149020
ref: 18

KNOB

€ 9.50

19

3466249020
ref: 19

SCREW,CLOCK KNOB

€ 2.50

20

0831011048
ref: 20

NUT

€ 2.00

21

0832121048
ref: 21

LOCK WASHER

€ 2.00

22

0832221048
ref: 22

WASHER

€ 2.00

23

3431249020
ref: 23

GLASS,COMBINED FUEL METER

€ 43.00

24

3431449020
ref: 24

GASKET,COMBINED FUEL METER

€ 0.00

25

3431349020
ref: 25

PLATE,COMBINED FUEL METER

€ 25.50

26

3431049020
ref: 26

CASE,LOWER

€ 77.00

27

0211204048
ref: 27

SCREW

€ 1.50

28

0832121048
ref: 28

LOCK WASHER

€ 2.00

29

0832221048
ref: 29

WASHER

€ 2.00

30

0831011048
ref: 30

NUT

€ 2.00

31

0832121048
ref: 31

LOCK WASHER

€ 2.00

32

0211203088
ref: 32

SCREW

€ 1.50

33

0832121038
ref: 33

LOCK WASHER

€ 1.50

34

0832221038
ref: 34

WASHER

€ 2.00

35

3435049020
ref: 35

BRACKET,FUEL METER

€ 41.50

36

3438349020
ref: 36

SCREW,METER

€ 1.50

37

3638049020
ref: 37

CASE,PILOT BULB

€ 34.00

38

3789049020
ref: 38

SWITCH,CLOCK

€ 44.50

39

3415049020
ref: 39

HOOD,METER

€ 184.50

40

3415849020
ref: 40

CAP,ACCESSORY HOLE

€ 0.00

41

3495049020
ref: 41

BRACKET,COMBINATION METER

€ 0.00

42

3438949020
ref: 42

CUSHION,FUEL METER

€ 9.00

43

3418949020
ref: 43

CUSHION

€ 0.00

44

3419149020
ref: 44

CUSHION,METER

€ 6.50

45

3418149020
ref: 45

WASHER,SPEEDOMETER

€ 0.00

46

0831011058
ref: 46

NUT

€ 2.50

47

0911108031
ref: 47

BOLT(8X31)

€ 4.00

48

3495631000
ref: 48

CUSHION,METER

€ 4.50

49

0916010028
ref: 49

WASHER

€ 2.00

50

0916008002
ref: 50

WASHER (8.5X29X1.6)

€ 2.00

51

0832121088
ref: 51

LOCK WASHER

€ 2.00

52

0831311088
ref: 52

NUT

€ 2.50

53

3491044032
ref: 53
L:820

CABLE ASSEMBLY,SPEEDOMETER

€ 41.00

54

3493837000
ref: 54

GUIDE,SPEEDOMETER CABLE

€ 14.50

55

0832211068
ref: 55

WASHER 6MM

€ 2.00

56

0832121068
ref: 56

LOCK WASHER

€ 2.50

57

0110706168
ref: 57

BOLT, UPPER

€ 3.00

58

3494044033
ref: 58
L:510

CABLE ASSEMBLY,TACHOMETER

€ 36.50
