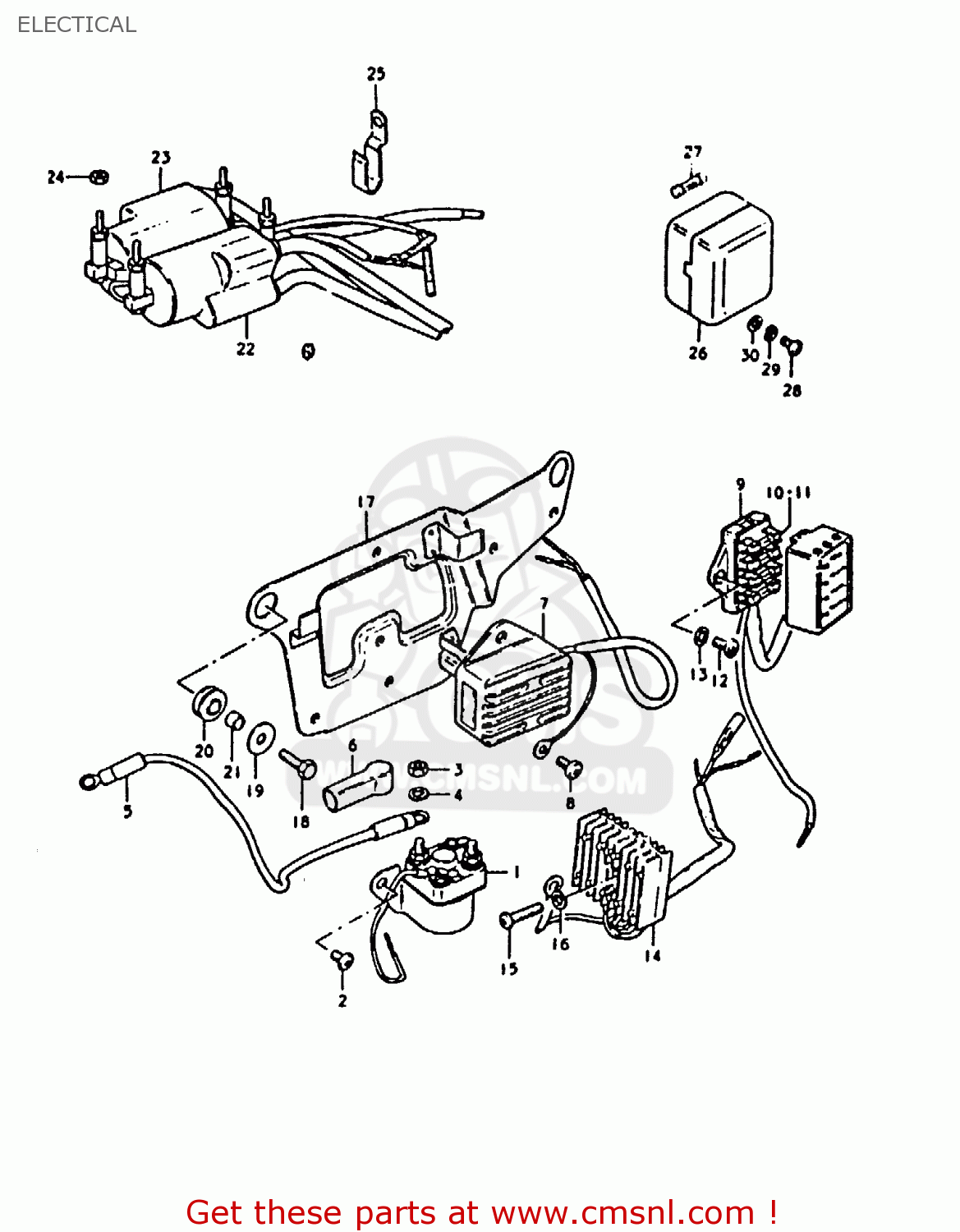

ELECTICAL

ref

part #

description

quantity

1

3180037020
ref: 1

RELAY ASSY,STARTING MOTOR

€ 105.00

2

0211206108
ref: 2

SCREW

€ 1.50

3

0831022068
ref: 3

NUT 6MM

€ 2.50

4

0832121068
ref: 4

LOCK WASHER

€ 2.50

5

3385049000
ref: 5

WIRE,STARTER MOTOR LEAD

€ 8.50

6

3186135100
ref: 6

CAP,STARTER RELAY

€ 4.50

7

3250049010
ref: 7

REGULATOR ASSY,VOLTAGE

€ 251.50

8

0211206108
ref: 8

SCREW

€ 1.50

9

3674049001
ref: 9

BOX ASSEMBLY,FUSE

€ 81.50

10

0948110001
ref: 10
10A

FUSE(10A)

€ 2.00

11

0948115001
ref: 11
10A

FUSE(15A)

€ 3.00

12

0211206128
ref: 12

SCREW 6X12

€ 2.00

13

0832211068
ref: 13

WASHER 6MM

€ 2.00

14

3280049030
ref: 14

RECTIFIER ASSEMBLY

€ 269.00

15

0211206258
ref: 15

SCREW

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

4741049002
ref: 17

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

18

0110706168
ref: 18

BOLT, UPPER

€ 3.00

19

0916006012
ref: 19
6.5X22X1.6

WASHER(6,5X22X1.6)

€ 2.00

20

0932008013
ref: 20

CUSHION

€ 4.00

21

0918006001
ref: 21
6.2X8.3X5.7

SPACER(6.2X8.3X5.7)

€ 2.00

22

3341045010
ref: 22

COIL ASSEMBLY,IGNITION

€ 152.50

23

3342045010
ref: 23

COIL ASSEMBLY,IGNITION

€ 152.50

24

0831011068
ref: 24

NUT

€ 2.50

25

0940306307
ref: 25

CLAMP

€ 4.50

26

3885047000
ref: 26

TERMINAL ASSEMBLY,POWER SO

€ 94.00

27

0948110001
ref: 27
10A

FUSE(10A)

€ 2.00

28

0211206168
ref: 28

SCREW

€ 2.50

29

0832121068
ref: 29

LOCK WASHER

€ 2.50

30

0832221068
ref: 30

WASHER

€ 2.00

all assemblies
