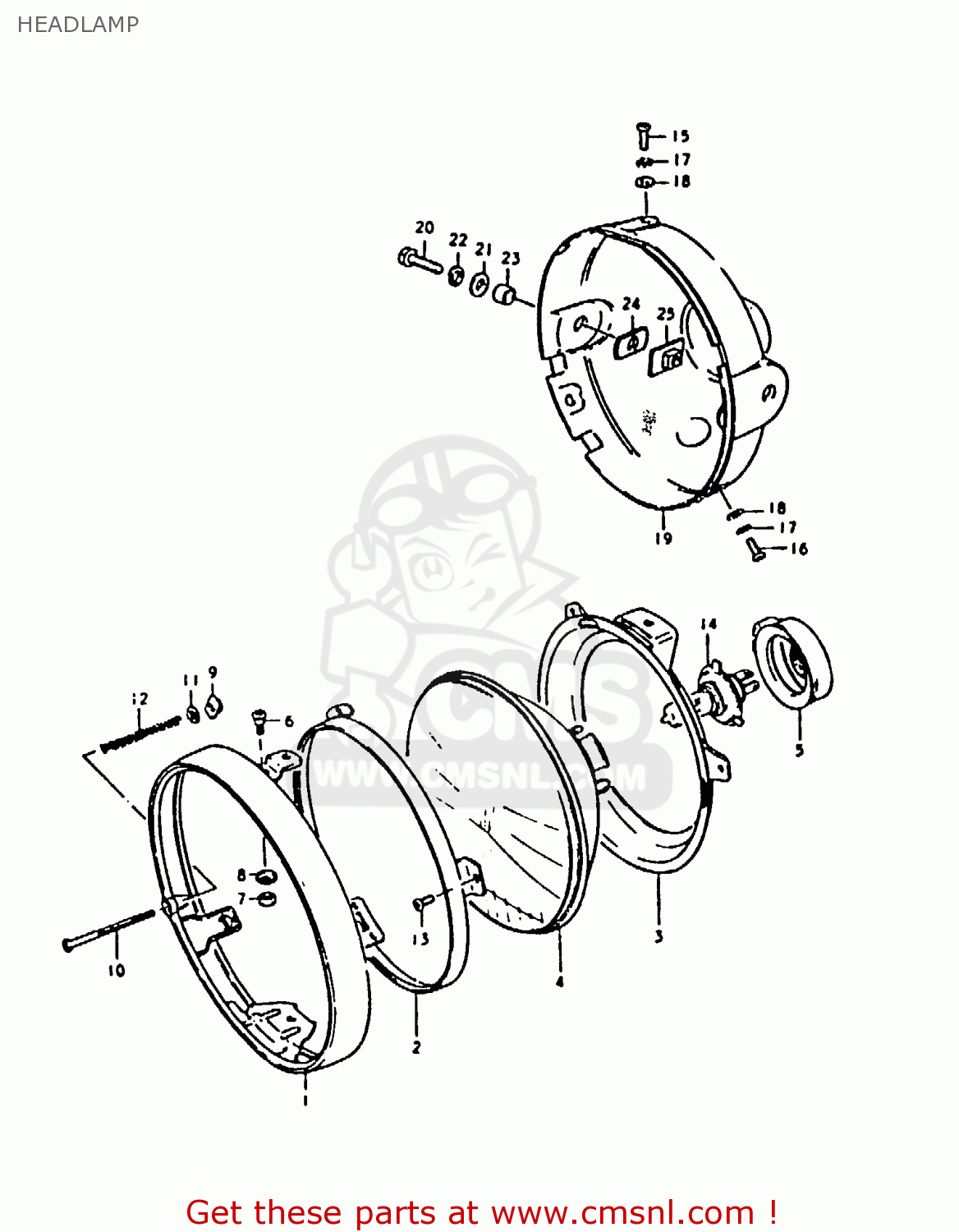

HEADLAMP

ref

part #

description

quantity

0

3510049010999
ref: 0
INC. REF.NO.1~13.

HEADLAMP ASSEMBLY

€ 88.00

1

3511145600
ref: 1

RIM

€ 57.50

2

3512745600
ref: 2

RETAINER

€ 39.00

3

3513045600
ref: 3

RING,HEADLAMP UNIT

€ 35.00

4

3512149010
ref: 4

LAMP UNIT

€ 136.00

5

3517349020
ref: 5

COVER,HEADLAMP SOCKET

€ 14.00

6

3513625611
ref: 6

SCREW

€ 4.00

7

3513525611
ref: 7

NUT,ADJUSTING

€ 2.50

8

3513345600
ref: 8

SPACER

€ 3.50

9

3513545600
ref: 9

NUT

€ 3.00

10

3515127630
ref: 10

SCREW,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3515445600
ref: 12

SPRING,HEADLAMP ADJUST

€ 3.50

13

0211203088
ref: 13

SCREW

€ 1.50

14

0947112060
ref: 14
H4,12V, 60/55W

BULB(12V60/55W,H4)

€ 8.00

15

0110405168
ref: 15

BOLT

€ 1.50

16

0211205168
ref: 16

SCREW

€ 2.50

17

0832121058
ref: 17

LOCK WASHER

€ 2.00

18

0916906021
ref: 18

WASHER

€ 2.50

19

5181145002291
ref: 19

HOUSING,HEADLAMP(BLACK)

€ 69.50

20

0120408257
ref: 20

BOLT

€ 2.00

21

0832211088
ref: 21

WASHER

€ 2.00

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0918008030
ref: 23
8X15.2X7

SPACER (8.8X12X7)

€ 3.50

24

0932912002
ref: 24

CUSHION

€ 3.00

25

5186045000
ref: 25

PLATE,HEADLAMP HOUSING

€ 2.00
