HANDLEBAR - FRONT FENER

GS1000 1979 (S) GENERAL EXPORT (E01)

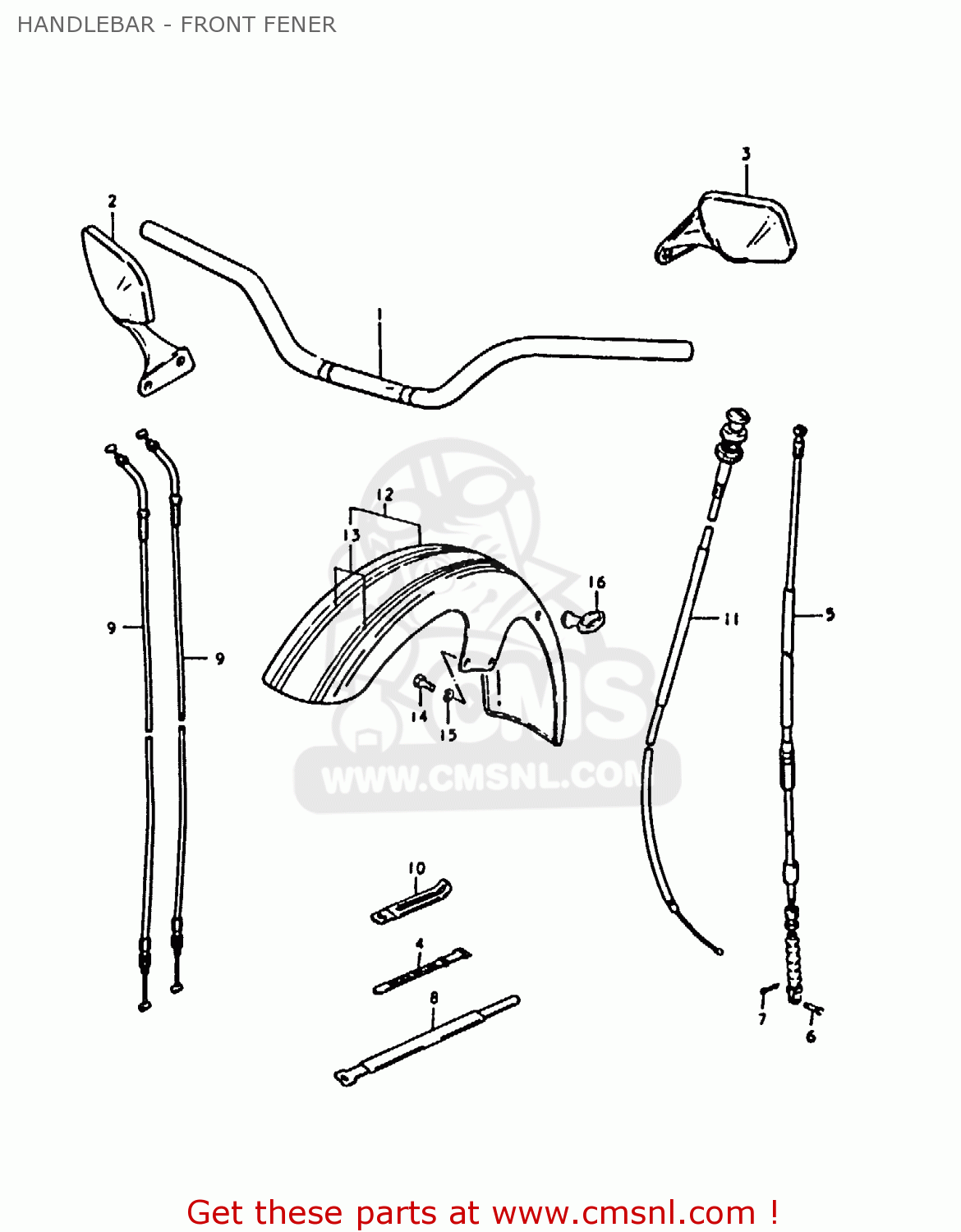

Handlebar - front fener diagram GS1000 1979 (S) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5611145600
ref: 1

HANDLEBAR

€ 75.00

5650049000
ref: 2

MIRROR ASSEMBLY,RIGHT

€ 57.50

5660049000
ref: 3

MIRROR ASSEMBLY,LEFT

€ 57.50

0940712402
ref: 4
L:120

CLAMP(L:120)

€ 3.00

5820049011
ref: 5

CABLE,CLUTCH

€ 52.00

0920006011
ref: 6

PIN(L:15)

€ 2.50

0411120158
ref: 7

PIN

€ 1.50

0940718301
ref: 8
L:180

CLAMP

€ 6.00

5830045601
ref: 9

CABLE ASSY,THROTTLE

€ 43.50

0940406403
ref: 10

CLAMP

€ 2.50

5840045100
ref: 11

CABLE ASSY,STARTER

€ 25.00

12-1

531004981068U
ref: 12-1

FENDER,FRONT

€ 182.50

12-2

531004981069J
ref: 12-2

FENDER,FRONT

€ 182.50

681014988062R
ref: 13

TAPE SET,FRONT FENDER STRIPE

€ 25.50

0110708168
ref: 14

BOLT

€ 2.00

0832121088
ref: 15

LOCK WASHER

€ 2.00

5862121203A
ref: 16

GUIDE,CABLE

€ 7.50
