COWLING
GS1000 1979 (S) GENERAL EXPORT (E01)

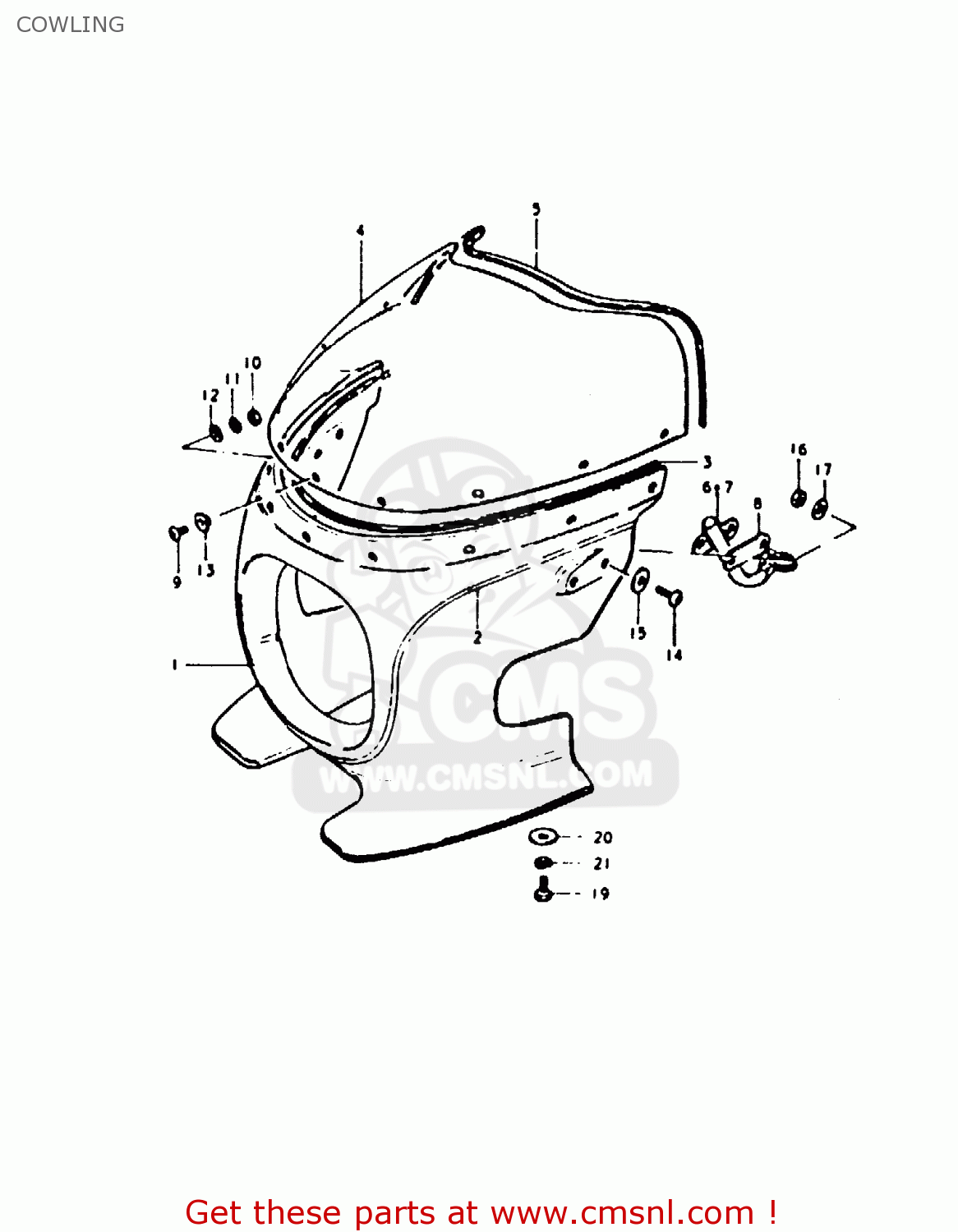

Cowling diagram GS1000 1979 (S) GENERAL EXPORT (E01)
COWLING GS1000 1979 (S) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
944004981068U
ref: 1-1
BODY ASSEMBLY,COWLING
€ 312.50
1-2
944004981069J
ref: 1-2
BODY ASSEMBLY,COWLING
€ 0.00
2
681024981062R
ref: 2
TAPE SET
€ 0.00
3
9459149000A
ref: 3
MOLDING,COWLING
€ 4.50
4
9461149000
ref: 4
WINDOW,COWLING
€ 283.50
5
9463149000
ref: 5
MOLDING,COWLING
€ 9.00
6
9451049000
ref: 6
BRACE,COWLING
€ 29.00
7
9452049000
ref: 7
BRACKET,COWLING,UPPER
€ 47.00
8
9457349000
ref: 8
CUSHION,COWLING
€ 5.50
9
0214205125
ref: 9
SCREW M5X12 DIN 7985/N
€ 1.50
10
0831011058
ref: 10
NUT
€ 2.50
11
0832121058
ref: 11
LOCK WASHER
€ 2.00
12
0832221058
ref: 12
WASHER
€ 2.50
13
0932005008
ref: 13
CUSHION
€ 5.00
14
0214206207
ref: 14
E2, E4 SPEC.
SCREW
€ 2.00
15
0916006052
ref: 15
E2, E4 SPEC.
WASHER(6.5X16X1.2)
€ 2.00
16
0831011068
ref: 16
E2, E4 SPEC.
NUT
€ 2.50
17
0832221068
ref: 17
E2, E4 SPEC.
WASHER
€ 2.00
18
0832121068
ref: 18
E2, E4 SPEC.
LOCK WASHER
€ 2.50
19
0110706168
ref: 19
BOLT, UPPER
€ 3.00
20
0916006007
ref: 20
WASHER
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
€ 2.50
