CARBURETOR (GS1000C, HC, EC)

GS1000E 1979 (N) GENERAL EXPORT (E01)

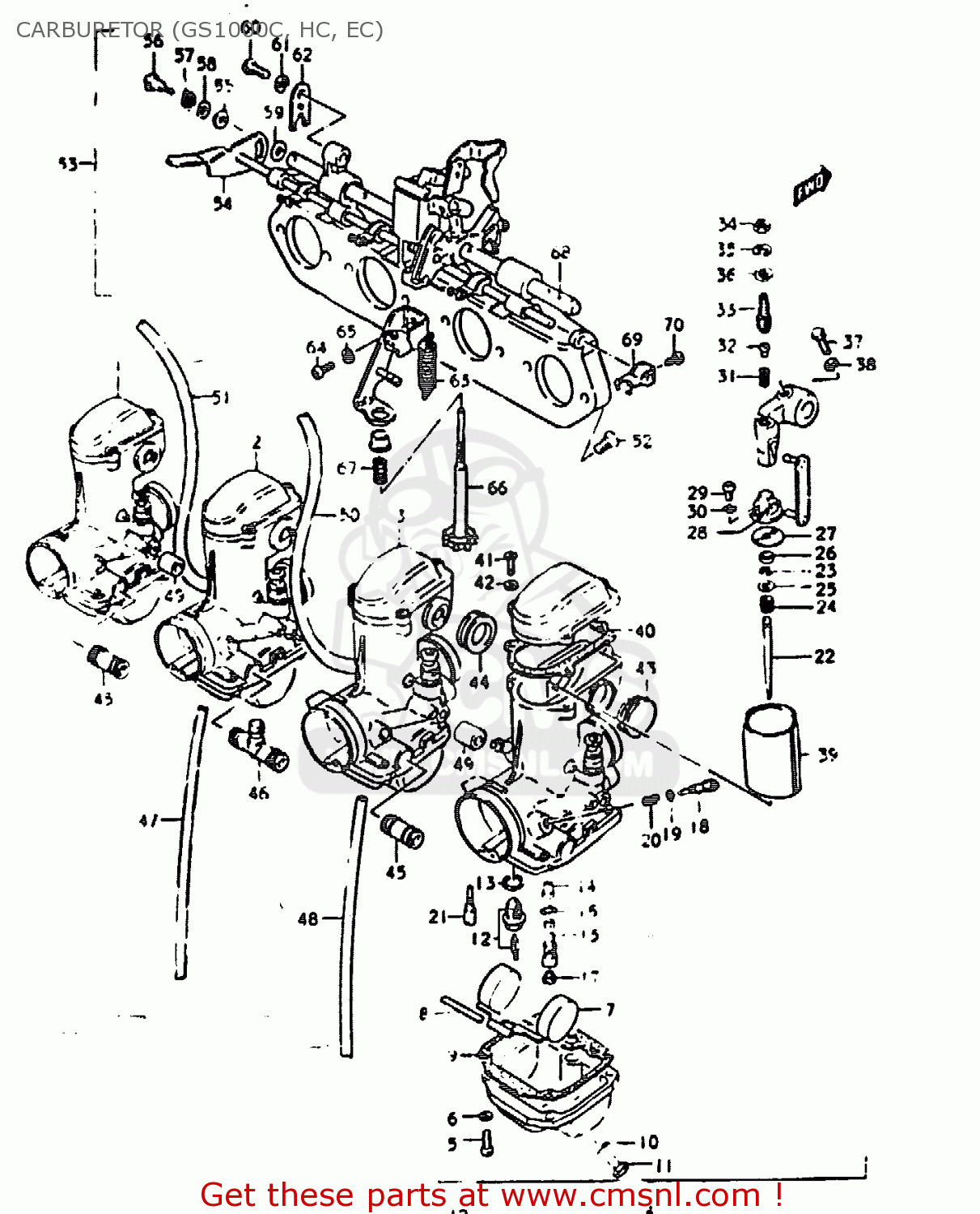

Carburetor (gs1000c, hc, ec) diagram GS1000E 1979 (N) GENERAL EXPORT (E01)

CARBURETOR (GS1000C, HC, EC) GS1000E 1979 (N) GENERAL EXPORT (E01)
CARBURETOR (GS1000C, HC, EC) GS1000E 1979 (N) GENERAL EXPORT (E01)
CARBURETOR (GS1000C, HC, EC) GS1000E 1979 (N) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
1320049010
ref: 0
CARBURETOR ASSY
€ 0.00
1
1320149010
ref: 1
LH
CARBURETOR ASSY, NO.1
€ 0.00
2
1320249010
ref: 2
CENTER LH
CARBURETOR ASSY, NO.2
€ 0.00
3
1320349010
ref: 3
CENTER RH
CARBURETOR ASSY, NO.3
€ 0.00
4
1320449010
ref: 4
RH
CARBURETOR ASSY, NO.4
€ 0.00
5
0211204168
ref: 5
SCREW
0211204168
€ 1.00
6
0832121048
ref: 6
LOCK WASHER
0832121048
€ 2.00
7
1325243010
ref: 7
FLOAT
1325243010
€ 41.00
8
1325401010
ref: 8
PIN,FLOAT
1325401010
€ 3.00
9
1325143011
ref: 9
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
10
1324643010
ref: 10
O RING
1324643010
€ 4.00
11
1324745010
ref: 11
SCREW
1324745010
€ 7.50
12
1337045010
ref: 12
VALVE ASSEMBLY,NEEDLE
1337045010
€ 51.50
13
1339258600
ref: 13
GASKET,VALVE SEAT (NAS)
1339258600
€ 2.00
14
0949400230
ref: 14
0~4
JET, NEEDLE
€ 0.00
15
1338545010
ref: 15
PIPE,BLEEDER
1338545010
€ 36.00
16
1324646010
ref: 16
O RING
€ 0.00
17
0949195005
ref: 17
#95
JET,MAIN(95)
0949195005
€ 8.50
18
1326945010
ref: 18
SCREW,PILOT AIR
1326945010
€ 11.50
19
1329533010
ref: 19
O RING
1329533010
€ 4.50
20
1326801010
ref: 20
SPRING
1326801010
€ 3.50
21
0949219005
ref: 21
#15
JET, PILOT
€ 0.00
22
1338345030
ref: 22
5DL36-3
NEEDLE,JET
1338345030
€ 19.50
23
1339410010
ref: 23
CLIP
1339410010
€ 4.50
24
1338847010
ref: 24
SPRING
1338847010
€ 7.00
25
1338247010
ref: 25
WASHER,JET NEEDLE
1338247010
€ 3.00
26
1338747010
ref: 26
RING
1338747010
€ 7.50
27
1358147010
ref: 27
PLATE,THROTTLE VALVE
€ 5.50
28
1339845010
ref: 28
CONNECTOR
€ 18.00
29
0211103148
ref: 29
SCREW
€ 1.50
30
0832121038
ref: 30
LOCK WASHER
€ 1.50
31
1354345010
ref: 31
SPRING
1354345010
€ 2.50
32
1354443010
ref: 32
PIN,CARBURETOR
1354443010
€ 2.50
33
1354845010
ref: 33
SCREW
1354845010
€ 10.00
34
0831011058
ref: 34
NUT
0831011058
€ 2.50
35
0832121058
ref: 35
LOCK WASHER
0832121058
€ 2.00
36
0832221058
ref: 36
WASHER
€ 2.50
37
0110405168
ref: 37
BOLT
€ 1.50
38
0832121058
ref: 38
LOCK WASHER
0832121058
€ 2.00
39
1355145030
ref: 39
CA:1.5
VALVE,THROTTLE
1355145030
€ 39.00
40
1326643010
ref: 40
GASKET (NAS)
1326643010
€ 7.00
41
0211204168
ref: 41
SCREW
0211204168
€ 1.00
42
0832121048
ref: 42
LOCK WASHER
0832121048
€ 2.00
43
1367843010
ref: 43
PIPE,DELIVERY
1367843010
€ 4.50
44
1355645010
ref: 44
SEAL
1355645010
€ 15.50
45
1368545030
ref: 45
NIPPLE
€ 24.50
46
1368545040
ref: 46
NIPPLE
1368545040
€ 28.00
47
1368345010
ref: 47
L:545
HOSE
1368345010
€ 10.00
48
1368345010
ref: 48
L:470
HOSE
1368345010
€ 10.00
49
1368333110
ref: 49
6*10*16
HOSE
€ 18.00
50
1368345050
ref: 50
4.5*8*200
HOSE 4.5X8X390
€ 14.00
51
1368345050
ref: 51
5*8*450
HOSE 4.5X8X390
€ 14.00
52
0212206148
ref: 52
SCREW
€ 2.50
53
1321049000
ref: 53
CARBURETOR ASSEMBLY
€ 0.00
54
1341049000
ref: 54
SHAFT,STARTER
€ 43.50
55
1343233110
ref: 55
WASHER
1343233110
€ 5.00
56
1343333110
ref: 56
SCREW,STARTER LEVER
1343333110
€ 5.50
57
1342643010
ref: 57
SPRING
1342643010
€ 4.50
58
1361543010
ref: 58
WASHER,STARTER SHAFT
1361543010
€ 2.50
59
1361545010
ref: 59
WASHER,STARTER SHAFT
1361545010
€ 3.50
60
0211205168
ref: 60
SCREW
0211205168
€ 2.50
61
0832121058
ref: 61
LOCK WASHER
0832121058
€ 2.00
62
1355733110
ref: 62
GASKET
€ 3.50
63
1357349000
ref: 63
SPRING
1357349000
€ 23.00
64
0211205168
ref: 64
SCREW
0211205168
€ 2.50
65
0832121058
ref: 65
LOCK WASHER
0832121058
€ 2.00
66
1326749000
ref: 66
ADJUSTER
€ 0.00
67
1326833110
ref: 67
SPRING,THROTTLE SCREW
1326833110
€ 4.00
68
1355043010
ref: 68
SHAFT ASSEMBLY
€ 44.50
69
1342243010
ref: 69
LEVER, STARTER
1342243010
€ 5.50
70
1360531210
ref: 70
SCREW
1360531210
€ 3.00
