CRANKCASE
GS1000E 1979 (N) GENERAL EXPORT (E01)

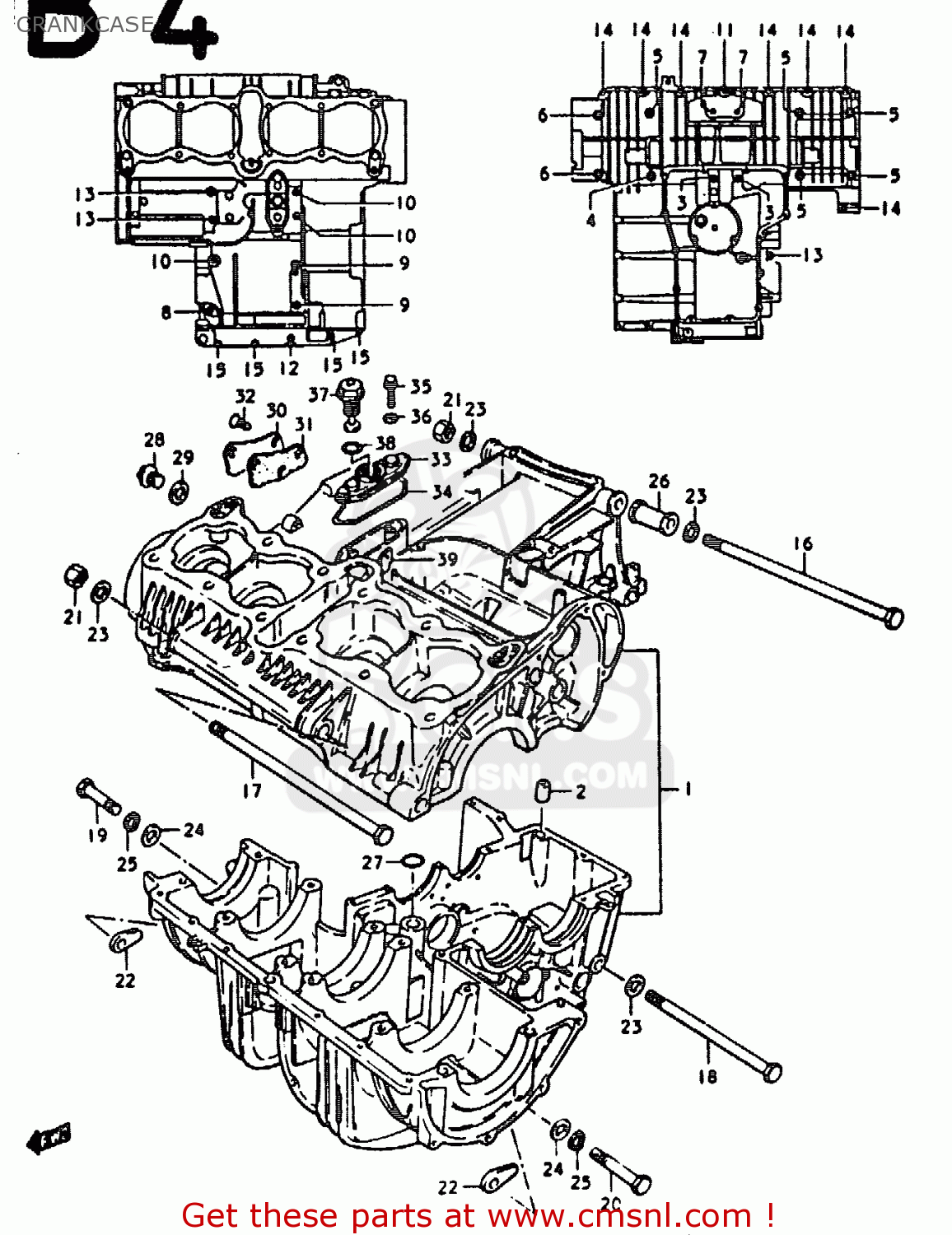

Crankcase diagram GS1000E 1979 (N) GENERAL EXPORT (E01)
CRANKCASE GS1000E 1979 (N) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1130049810
ref: 1
CRANKCASE SET
€ 997.00
2
0920613001
ref: 2
PIN
€ 2.50
3
0910308020
ref: 3
8*125
BOLT
€ 8.00
4
0910308009
ref: 4
8*100
BOLT
€ 5.00
5
0151708908
ref: 5
BOLT 8X90
€ 3.50
6
0151708658
ref: 6
BOLT 8X65
€ 3.00
7
0151708608
ref: 7
BOLT
€ 3.50
8
0151708508
ref: 8
BOLT
€ 3.50
9
0151706858
ref: 9
BOLT
€ 3.50
10
0151706758
ref: 10
BOLT (6X75)
€ 2.50
11
0151706508
ref: 11
BOLT ,6X50
€ 2.00
12
0151706458
ref: 12
BOLT,UNDER
€ 2.50
13
0151706408
ref: 13
BOLT
€ 2.50
14
0151706358
ref: 14
BOLT 6X35
€ 2.50
15
0151706308
ref: 15
BOLT
€ 2.00
16
0910010110
ref: 16
10*265
BOLT 10X265
€ 57.00
17
0910110010
ref: 17
10*250
BOLT 10X250
€ 49.50
18
0910010078
ref: 18
10*165
BOLT(10X165)
€ 10.50
19
0110710608
ref: 19
BOLT 10X60
€ 3.50
20
0110710608
ref: 20
BOLT 10X60
€ 3.50
21
0915910011
ref: 21
NUT
€ 3.00
22
0915910020
ref: 22
NUT
€ 7.50
23
0832211108
ref: 23
WASHER
€ 2.50
24
0916010005
ref: 24
10*15*1.2
WASHER(10.5X20X3.2)
€ 2.00
25
0832121108
ref: 25
LOCK WASHER
€ 2.00
26
1161049000
ref: 26
SPACER,ENGINE MOUNT
€ 14.50
27
0928013001
ref: 27
O RING(D:3.2,ID:12.9)
€ 4.00
28
0924714012
ref: 28
PLUG (14X12)
€ 3.50
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
€ 2.50
30
1139445000
ref: 30
CAP,OIL GALLERY
€ 6.50
31
1149745000
ref: 31
GASKET,OIL GALLERY (MCA)
€ 13.00
32
0212206168
ref: 32
SCREW
€ 2.00
33
1644545000
ref: 33
HOUSING,OIL PRESSURE SWITCH
€ 28.00
34
1644845000
ref: 34
O RING,PRESSURE SWITCH HOUSING
€ 10.50
35
0151706258
ref: 35
BOLT
€ 2.50
36
0916806009
ref: 36
GASKET (NAS)
€ 2.00
37
3782045050
ref: 37
SWITCH ASSEMBLY
€ 30.00
38
0928019001
ref: 38
O RING(D:1.9,ID:18.8)
€ 1.50
39
3127145000
ref: 39
GROMMET,STARTING MOTOR
€ 5.50
