HANDLEBAR - FRONT FENDER

GS1000E 1979 (N) GENERAL EXPORT (E01)

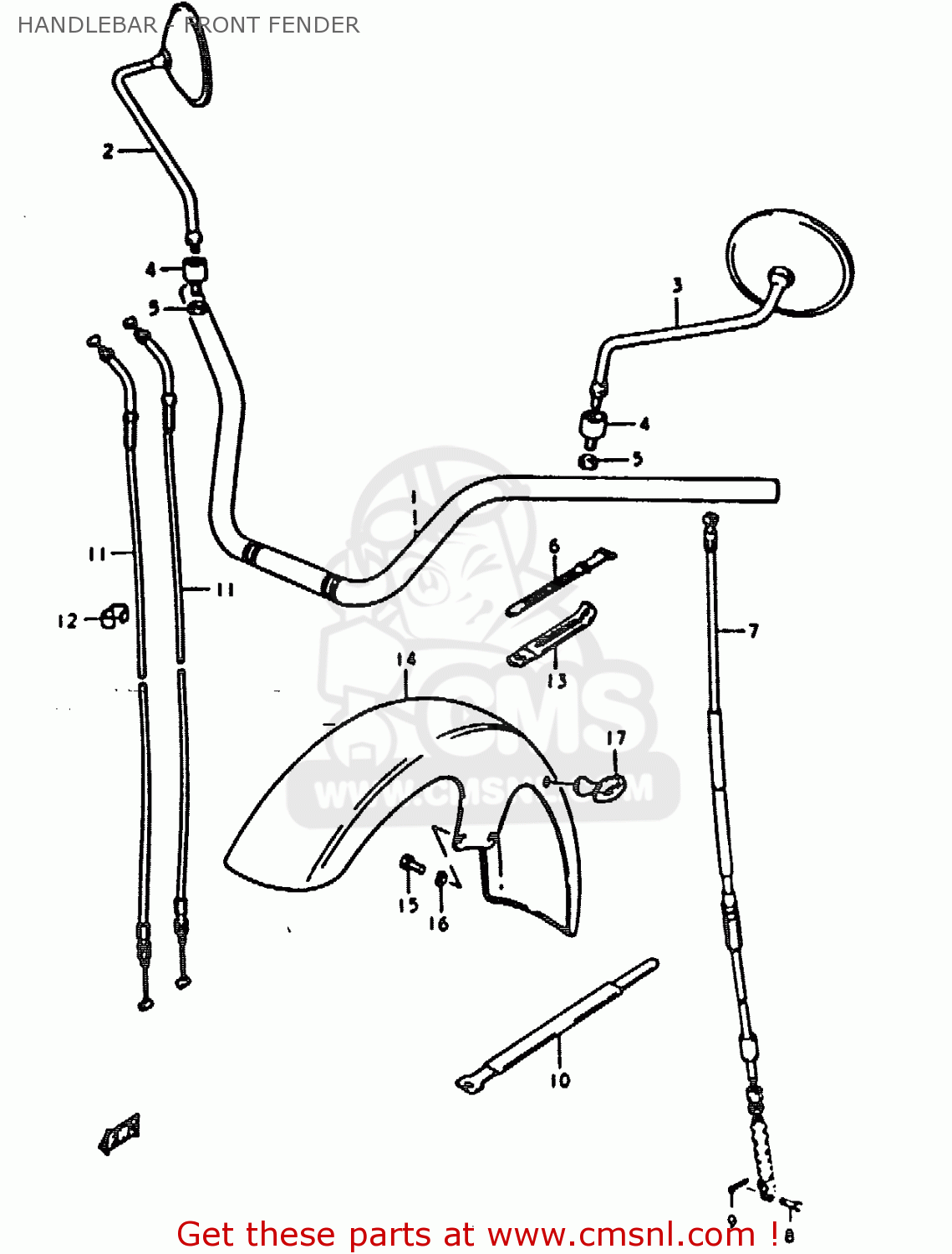

Handlebar - front fender diagram GS1000E 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5611149000
ref: 1

HANDLEBAR

€ 81.50

5650045012
ref: 2

MIRROR ASSEMBLY,RIGHT

€ 72.50

5660045012
ref: 3

MIRROR ASSEMBLY,LEFT

€ 73.00

5670031001
ref: 4

CUSHION,REAR VIEW MIRROR

€ 18.00

0831022108
ref: 5

NUT

€ 2.50

0940712402
ref: 6
L:120

CLAMP(L:120)

€ 3.00

5820049001
ref: 7

CABLE ASSY,CLUTCH

€ 49.50

0920006011
ref: 8

PIN(L:15)

€ 2.50

0411120158
ref: 9

PIN

€ 1.50

0940718301
ref: 10
L:180

CLAMP

€ 6.00

5830045610
ref: 11

CABLE ASSY,THROTTLE

€ 40.00

0940800002
ref: 12

CLIP

€ 2.00

0940406403
ref: 13

CLAMP

€ 2.50

14-2

5311049001
ref: 14-2
TO 53110-49011

FENDER,FRONT

€ 367.50

0110708168
ref: 15

BOLT

€ 2.00

0832121088
ref: 16

LOCK WASHER

€ 2.00

17-1

5862121202
ref: 17-1

GUIDE,CABLE

€ 7.50
