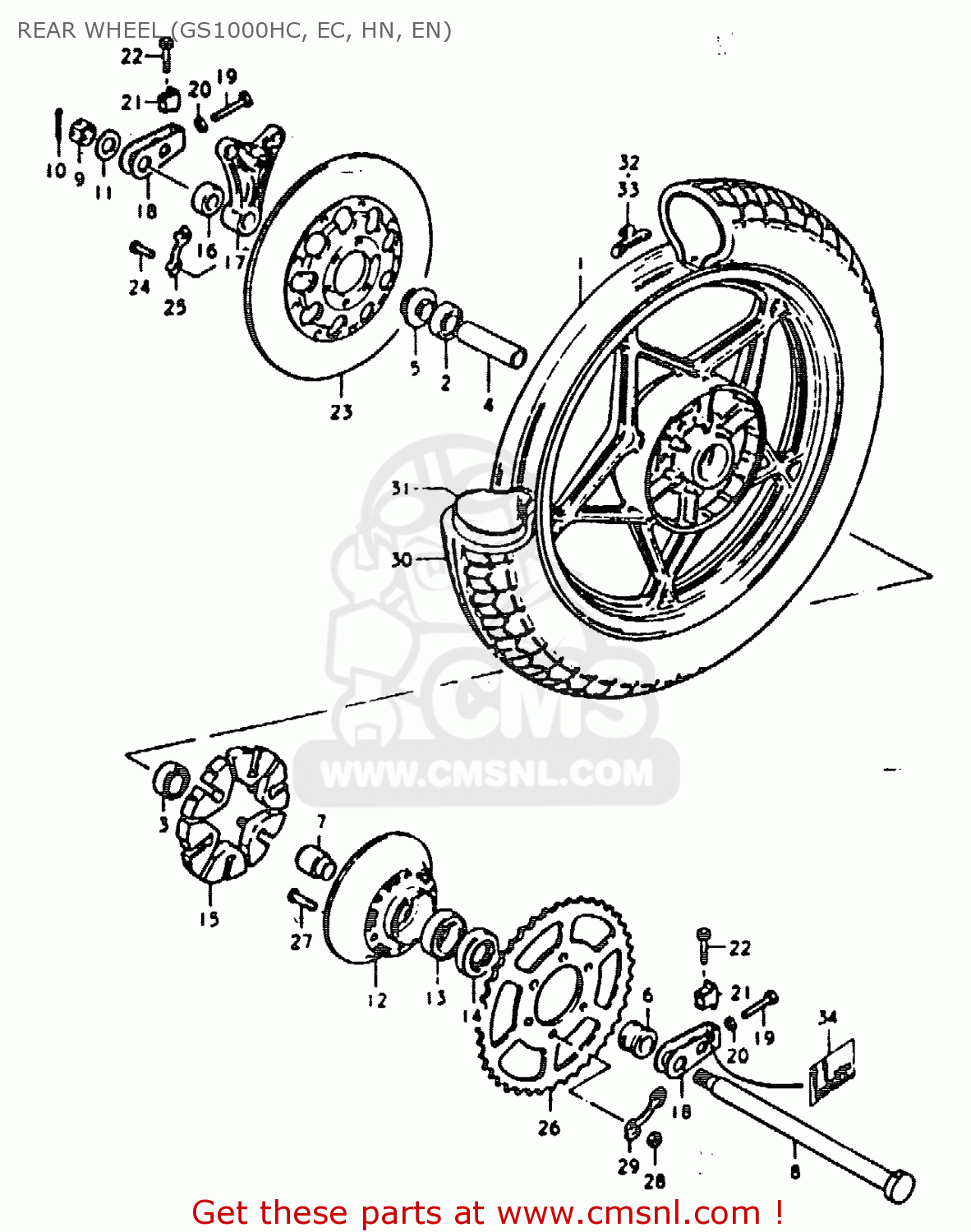

REAR WHEEL (GS1000HC, EC, HN, EN)

ref

part #

description

quantity

1

6411149000
ref: 1
2.50*17

WHEEL,REAR

€ 627.00

2-2

0813362047
ref: 2-2

BEARING WHEEL REAR(20X47X14)

€ 22.50

3-2

0815362047
ref: 3-2

BEARING, LH

€ 21.00

4

0918020062
ref: 4

SPACER(20.5X28X88)

€ 11.50

5

6474045001
ref: 5

SPACER,REAR AXLE

€ 15.00

6

0918020054
ref: 6
20*33*28.3

SPACER(20X33X28.3)

€ 13.00

7

6473331000
ref: 7

SPACER,REAR HUB BEARING

€ 20.00

8

6471149000
ref: 8

AXLE,REAR

€ 59.00

9

0831431188
ref: 9

NUT 18MM

€ 5.00

10

0411140308
ref: 10

PIN,COTTER

€ 1.50

11

0916019008
ref: 11
19*34*4

WASHER(19X34X4)

€ 3.00

12

6461131000
ref: 12

DRUM,REAR SPROCKET MOUNT

€ 140.00

13-2

0811363057
ref: 13-2

BEARING

€ 21.50

14

0928533001
ref: 14

SEAL,OIL(33X62X7)

€ 20.00

15

6465131000
ref: 15

ABSORBER,REAR HUB SHOCK

€ 9.50

16

0918020060
ref: 16
20*38*12

SPACER(20X38X12)

€ 6.50

17-1

6972147010
ref: 17-1

BRACKET,REAR CALIPER

€ 29.00

17-2

6972147011
ref: 17-2

BRACKET,RR,CALIPER

€ 29.00

18

6141031000
ref: 18

ADJUSTER,CHAIN

€ 50.00

19

0910408006
ref: 19

BOLT

€ 3.00

20

0831012088
ref: 20

NUT

€ 2.00

21

6143331000
ref: 21

SUPPORTER,CHAIN ADJUST

€ 22.50

22

0151708408
ref: 22

BOLT (8X40)

€ 3.50

23

5921018401
ref: 23

DISC,BRAKE

€ 208.50

24

0910008094
ref: 24
8*34

BOLT(8X30)

€ 2.50

25

0916908016
ref: 25

WASHER

€ 3.50

27

0911910002
ref: 27

BOLT

€ 3.50

28

0831012108
ref: 28

NUT

€ 2.50

29

0916910007
ref: 29

WASHER

€ 7.50

30

6510049010
ref: 30
4.50V17

TIRE

€ 258.00

31

6520049010
ref: 31
4.50-17

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

32

5541147001
ref: 32
20G

BALANCER,WHEEL

€ 4.00

33

5541247001
ref: 33
30G

BALANCER,WHEEL

€ 3.50

34

6837749000
ref: 34

LABEL,CHAIN WEAR INDICATOR

€ 3.50
