STARTER CLUTCH

GS1000E 1979 (N) GENERAL EXPORT (E01)

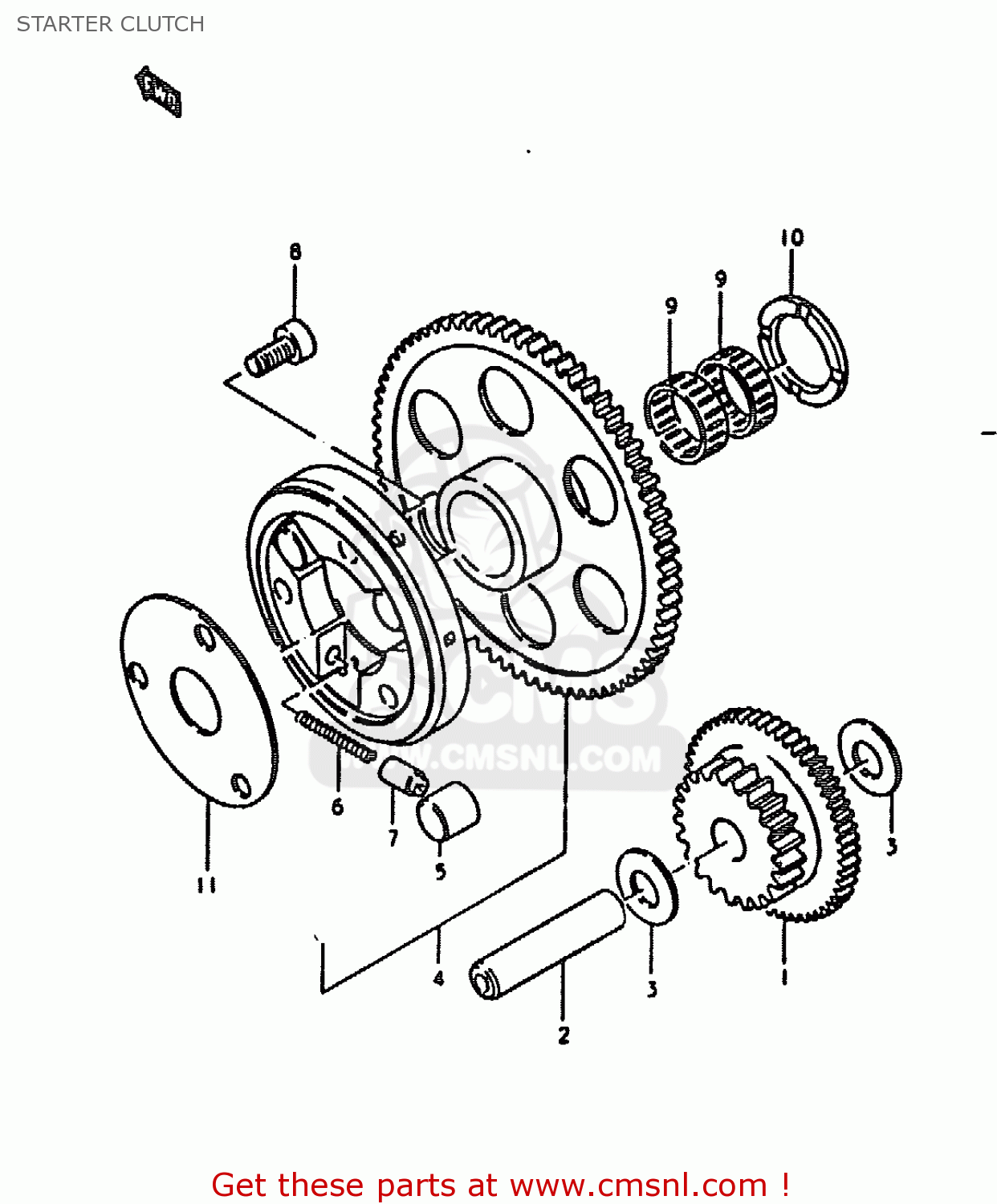

Starter clutch diagram GS1000E 1979 (N) GENERAL EXPORT (E01)

STARTER CLUTCH GS1000E 1979 (N) GENERAL EXPORT (E01)

STARTER CLUTCH GS1000E 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1261149000
ref: 1
NT:55/18

GEAR,STARTER IDLE

€ 49.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0916013003
ref: 3
13.3*25*0.85

WASHER(13.3X25X0.85)

€ 2.50

4

1260049810
ref: 4

CLUTCH SET,STARTER

€ 189.00

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8

BOLT

€ 3.00

9

0926325020
ref: 9

BEARING(25X29X9.9)

€ 13.50

10

0916025019
ref: 10
25*38*2.5

WASHER(25X38X2.5)

€ 10.00

11

1264945000
ref: 11

SHIM,STARTER CLUTCH HUB

€ 7.00
