STARTING MOTOR

GS1000E 1979 (N) GENERAL EXPORT (E01)

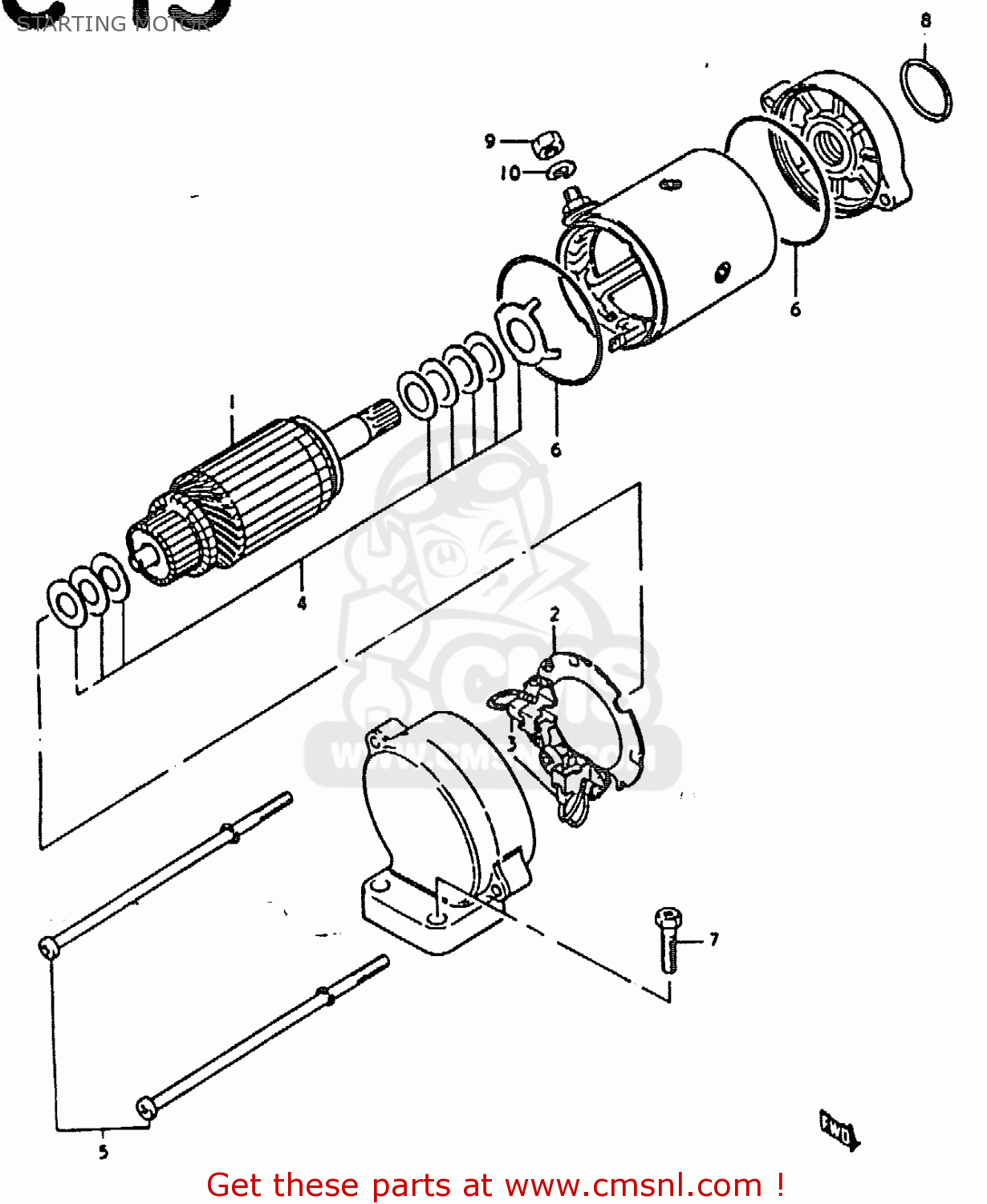

Starting motor diagram GS1000E 1979 (N) GENERAL EXPORT (E01)

STARTING MOTOR GS1000E 1979 (N) GENERAL EXPORT (E01)

STARTING MOTOR GS1000E 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

3110045040
ref: 0
MITSUBA

MOTOR ASSEMBLY,STARTING

€ 873.50

1

3131131040
ref: 1

ARMATURE

€ 150.50

2

3117331040
ref: 2

HOLDER ASSY

€ 25.50

3

3113131040
ref: 3
2PCS/SET

BRUSH SET

€ 17.00

4

3136131040
ref: 4

SHIM SET

€ 22.50

5

3128131040
ref: 5

BOLT,STARTING MOTOR HOUSING

€ 12.50

6

3126431040
ref: 6

O RING

€ 8.50

7

0912806012
ref: 7

SCREW

€ 2.50

8

0928024001
ref: 8

O RING(D:2,ID:24.5)

€ 2.00

9

0831022068
ref: 9

NUT 6MM

€ 2.50

10

0832121068
ref: 10

LOCK WASHER

€ 2.50
