HEADLAMP (GS1000EC, N, HN, EN)

GS1000E 1979 (N) GENERAL EXPORT (E01)

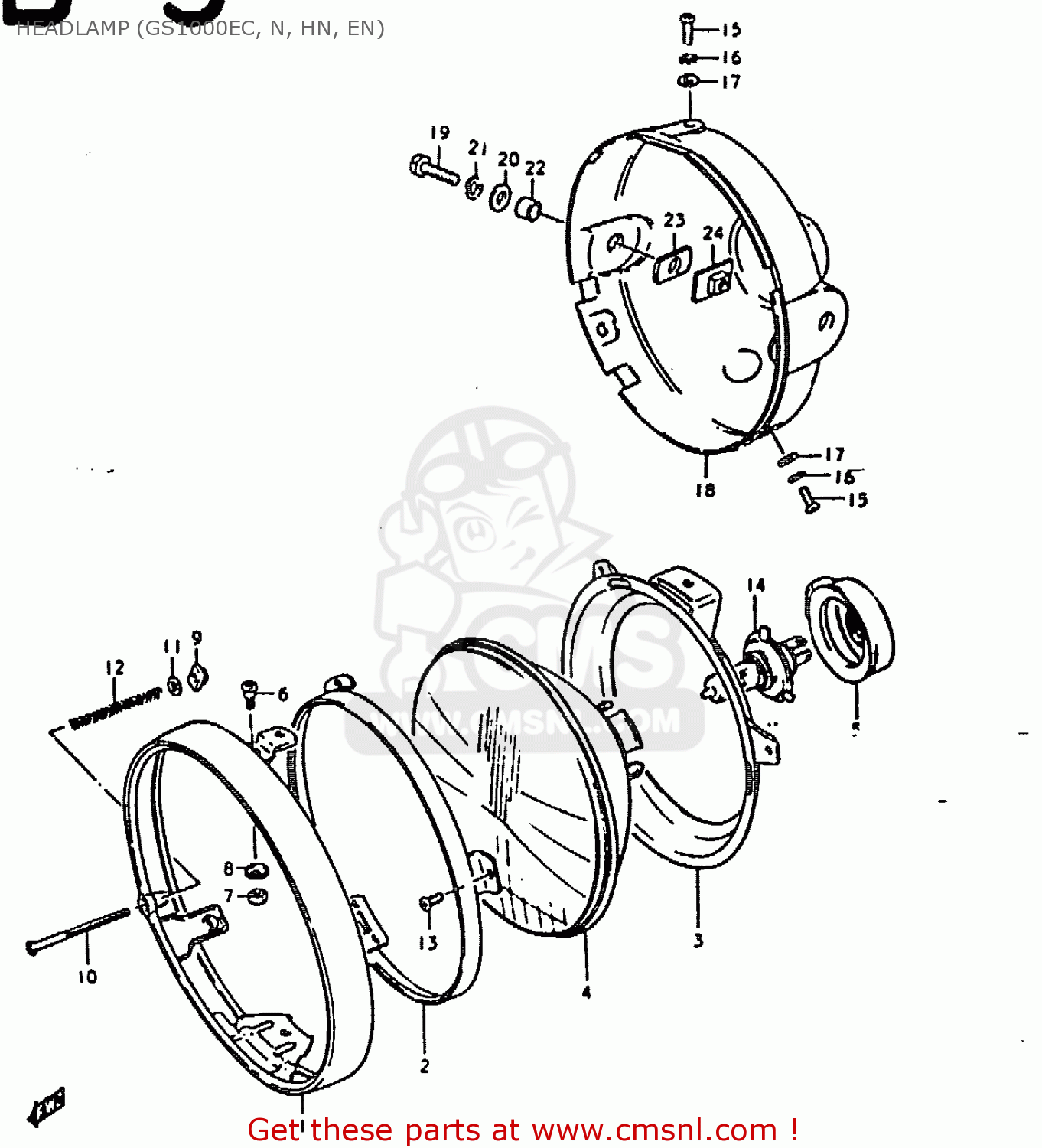

Headlamp (gs1000ec, n, hn, en) diagram GS1000E 1979 (N) GENERAL EXPORT (E01)

HEADLAMP (GS1000EC, N, HN, EN) GS1000E 1979 (N) GENERAL EXPORT (E01)
HEADLAMP (GS1000EC, N, HN, EN) GS1000E 1979 (N) GENERAL EXPORT (E01)
HEADLAMP (GS1000EC, N, HN, EN) GS1000E 1979 (N) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
3510049010999
ref: 0
HEADLAMP ASSEMBLY
3510049010999
€ 88.00
1
3511145600
ref: 1
RIM
3511145600
€ 57.50
2
3512745600
ref: 2
RETAINER
3512745600
€ 39.00
3
3513045600
ref: 3
RING,HEADLAMP UNIT
3513045600
€ 35.00
4
3512149010
ref: 4
LAMP UNIT
3512149010
€ 136.00
5
3517349020
ref: 5
COVER,HEADLAMP SOCKET
3517349020
€ 14.00
6
3513625611
ref: 6
SCREW
3513625611
€ 4.00
7
3513525611
ref: 7
NUT,ADJUSTING
3513525611
€ 2.50
8
3513345600
ref: 8
SPACER
3513345600
€ 3.50
9
3513545600
ref: 9
FROM 35152-45600
NUT
3513545600
€ 3.00
10
3515127630
ref: 10
SCREW,HEADLAMP ADJUST
3515127630
€ 3.50
11
3515727630
ref: 11
WASHER
3515727630
€ 2.50
12
3515445600
ref: 12
SPRING,HEADLAMP ADJUST
3515445600
€ 3.50
13
0211203088
ref: 13
SCREW
€ 1.50
14
0947112060
ref: 14
H4, 12V, 60/55W
BULB(12V60/55W,H4)
0947112060
€ 8.00
15
0912505022
ref: 15
SCREW
0912505022
€ 3.50
16
0916205003
ref: 16
WASHER,LOCK
0916205003
€ 2.00
17
0916906021
ref: 17
WASHER
0916906021
€ 2.50
18
5181145002291
ref: 18
HOUSING,HEADLAMP(BLACK)
5181145002291
€ 69.50
19
0120408257
ref: 19
BOLT
0120408257
€ 2.00
20
0832211088
ref: 20
WASHER
0832211088
€ 2.00
21
0832121088
ref: 21
LOCK WASHER
0832121088
€ 2.00
22
0918008030
ref: 22
8*15.2*7
SPACER (8.8X12X7)
0918008030
€ 3.50
23
0932912002
ref: 23
CUSHION
0932912002
€ 3.00
24
5186045000
ref: 24
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
