CHAM CHAIN

GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

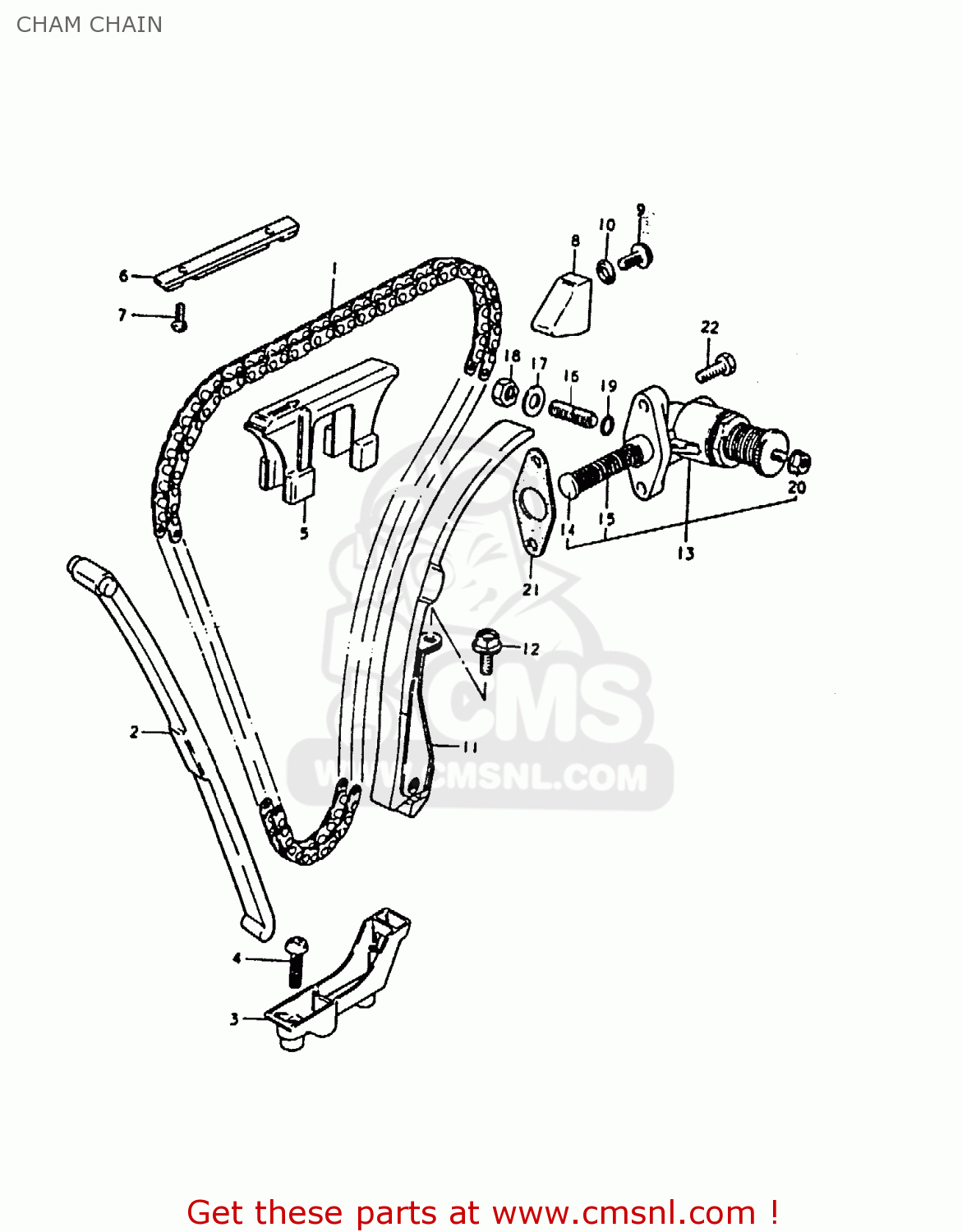

Cham chain diagram GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

CHAM CHAIN GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

CHAM CHAIN GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

1276049010
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 112.00

2

1277145052
ref: 2
FROM 12771-45051

GUIDE,CAM CHAIN NO.1

€ 33.50

3

1277649000
ref: 3

HOLDER,CAM CHAIN GUIDE

€ 13.00

4

0211206208
ref: 4

SCREW

€ 2.00

5

1278147042
ref: 5

GUIDE,CAM CHAIN NO.2

€ 136.50

6-1

1278247040
ref: 6-1

GUIDE,CAM CHAIN NO.3

€ 89.50

6-2

1278249140
ref: 6-2
FOR 11171-49002

GUIDE,CAM CHAIN

€ 37.50

7

0211205108
ref: 7

SCREW

€ 2.00

8

1279145040
ref: 8

GUIDE,CAM CHAIN

€ 8.50

9

0151706128
ref: 9

BOLT

€ 2.50

10

0916806009
ref: 10

GASKET (NAS)

€ 2.00

11

1281049051
ref: 11

TENSIONER,CAM CHAIN

€ 92.00

12

0151708168
ref: 12

BOLT

€ 3.00

13

1283014701
ref: 13

ADJUSTER ASSY, TENSIONER

€ 0.00

14

1283347001
ref: 14

ROD,PUSH

€ 25.00

15

0944012017
ref: 15

SPRING

€ 2.50

16

1283845001
ref: 16

SCREW

€ 6.00

17

0832211088
ref: 17

WASHER

€ 2.00

18

0831012088
ref: 18

NUT

€ 2.00

19

0928006003
ref: 19

O-RING

€ 2.50

20

0915906017
ref: 20

NUT

€ 2.50

21

1283747000
ref: 21

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

22

0912806024
ref: 22

SCREW (6X25)

€ 2.50
