FUEL COCK - FUEL GAUGE

GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

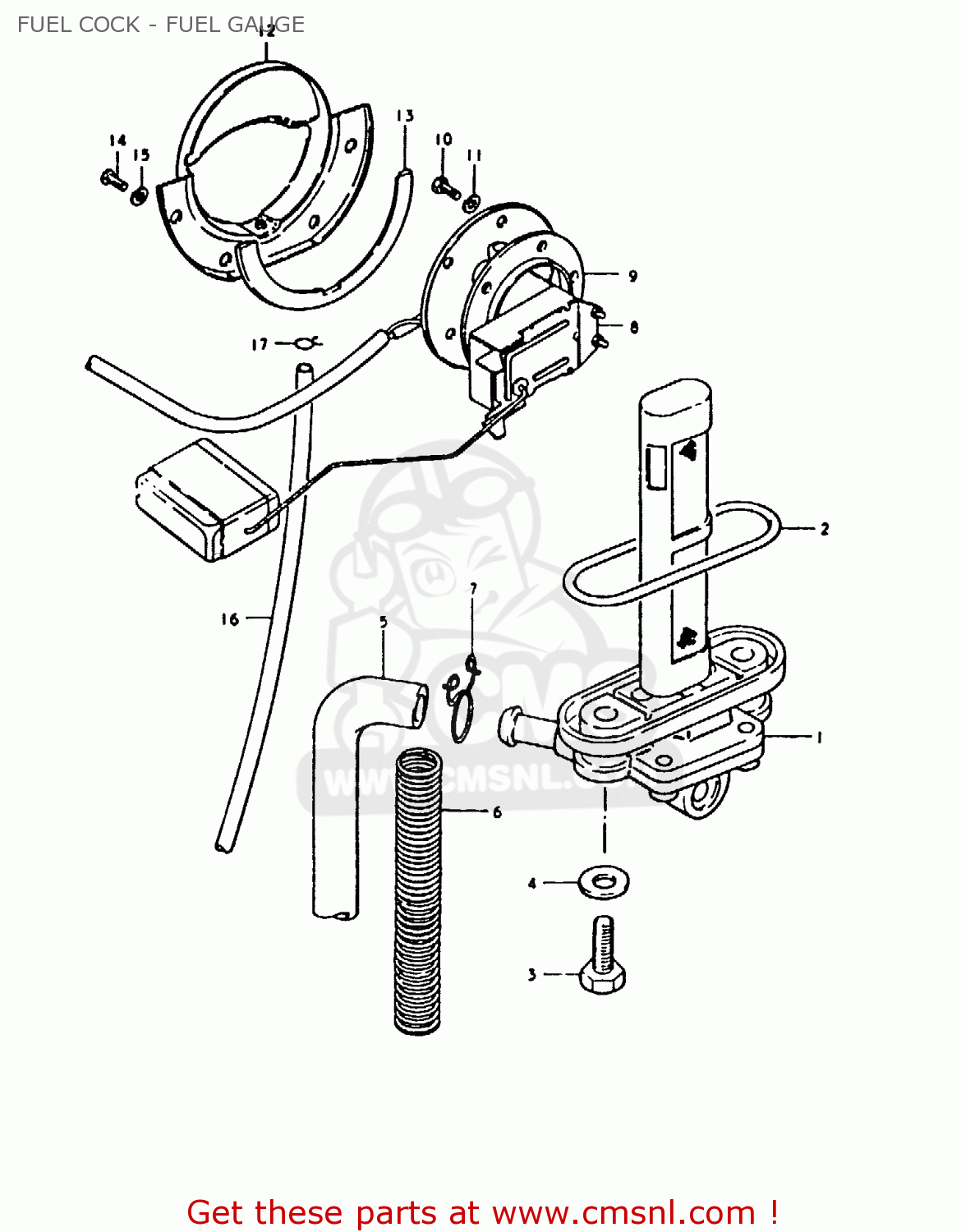

Fuel cock - fuel gauge diagram GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

FUEL COCK - FUEL GAUGE GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
FUEL COCK - FUEL GAUGE GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
FUEL COCK - FUEL GAUGE GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
4430047270
ref: 1
COCK ASSY,FUEL
€ 88.00

2
4434847270
ref: 2
GASKET (NAS)
€ 5.50

3
0912806024
ref: 3
SCREW (6X25)
€ 2.00

4
0916806010
ref: 4
GASKET
€ 2.00

5
0934307026
ref: 5
HOSE
€ 14.00

6
0944013018
ref: 6
SPRING
€ 6.50

7
0940110401
ref: 7
CLIP
€ 1.50

8
3481049010
ref: 8
GAUGE ASSEMBLY,FUEL LEVEL
€ 82.00

9
3482549001
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
€ 4.50

10
0110405108
ref: 10
BOLT
€ 1.50

11
0832121058
ref: 11
LOCK WASHER
€ 1.50

12
3488549002
ref: 12
PLATE,FUEL DRAIN
€ 18.00

13
3488849000
ref: 13
GASKET,FUEL DRAIN PLATE (NAS)
€ 8.00

14
0211205088
ref: 14
SCREW
€ 1.50

15
0832121058
ref: 15
LOCK WASHER
€ 1.50

16
0934305165
ref: 16
HOSE,FUEL
€ 12.50

17
0940108402
ref: 17
CLIP
€ 1.50
