SPEEDOMETER - TACHOMETER

GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

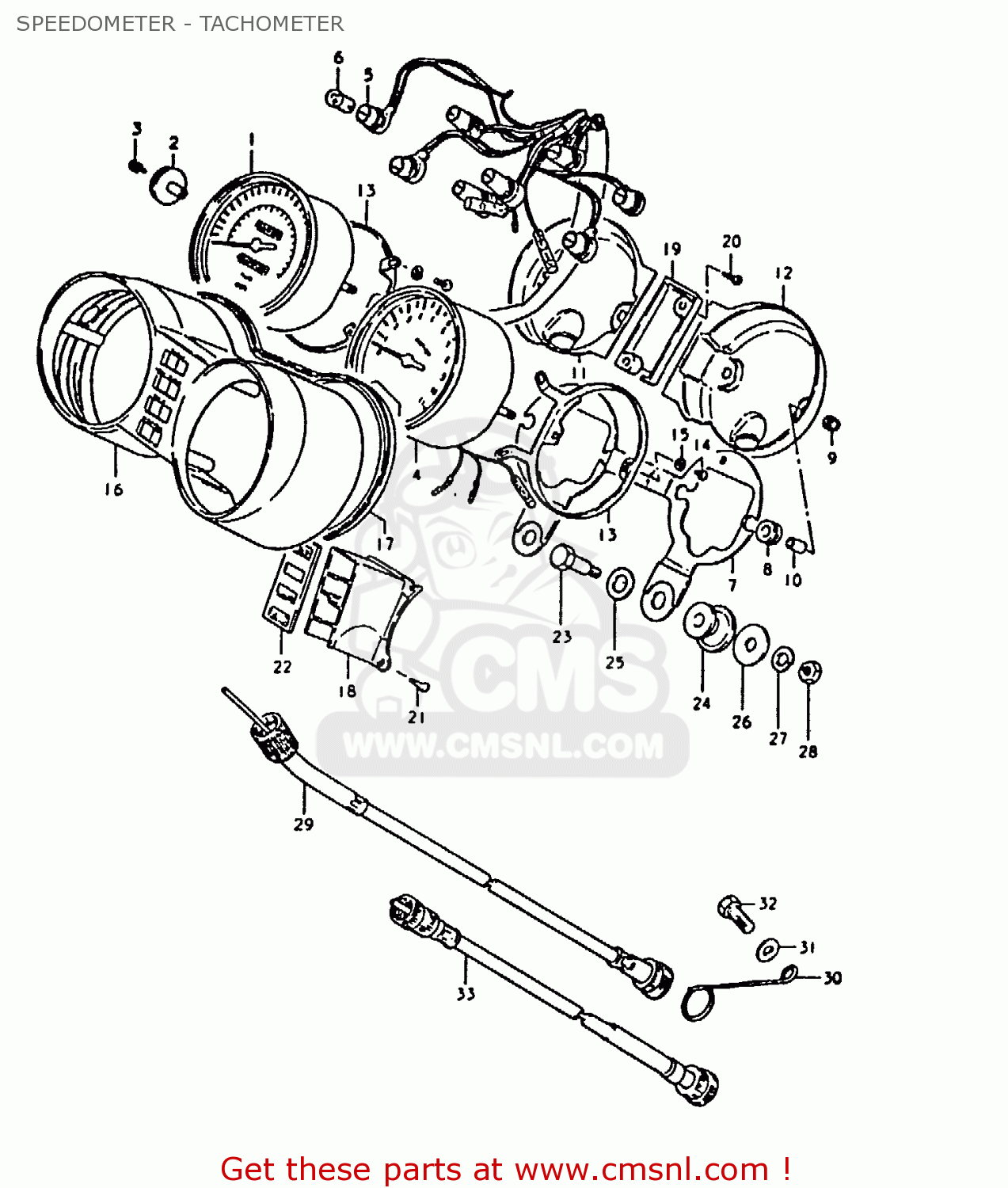

Speedometer - tachometer diagram GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

SPEEDOMETER - TACHOMETER GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
SPEEDOMETER - TACHOMETER GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
SPEEDOMETER - TACHOMETER GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1-1
3411049072
ref: 1-1
GS1000ET
METER,SPEEDOMETER
€ 225.50
1-2
NOTUSED
ref: 1-2
GS1000ET
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
GS1000ET
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
3411049062
ref: 1-4
GS1000T,GS1000HT
SPEEDOMETER (MILE & KILO)
3411049062
€ 225.50
1-5
NOTUSED
ref: 1-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
3412449000
ref: 2
KNOB,TRIP METER
3412449000
€ 5.50
3
3412549000
ref: 3
SCREW
3412549000
€ 1.50
4
3421049002
ref: 4
TACHOMETER
€ 368.50
5
3417349000
ref: 5
SOCKET,SPEEDOMETER
3417349000
€ 110.00
6
0947112001
ref: 6
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
7
3495049000
ref: 7
BRACKET,COMBINATION METER
3495049000
€ 35.00
8
3418949000
ref: 8
CUSHION,SPEEDOMETER
3418949000
€ 6.50
9
0831311057
ref: 9
NUT
0831311057
€ 1.50
10
3418749000
ref: 10
SPACER,SPEEDOMETER
3418749000
€ 2.50
11
3419349000
ref: 11
COVER,METER,UNDER
3419349000
€ 49.50
12
3429349000
ref: 12
PLATE,TACHOMETER UNDER
3429349000
€ 36.50
13
3419549000
ref: 13
HOLDER,METER
3419549000
€ 16.50
14
0211203088
ref: 14
SCREW
€ 1.50
15
0832121038
ref: 15
LOCK WASHER
€ 1.50
16
3415149000
ref: 16
CASE,METER
3415149000
€ 71.50
17
3415649000
ref: 17
CUSHION,METER CASE
3415649000
€ 7.00
18
3638249000
ref: 18
CASE,PILOT BULB
3638249000
€ 12.50
19
3638349000
ref: 19
PLATE,PILOT BULB CASE
3638349000
€ 16.50
20
3649249000
ref: 20
SCREW,PILOT CASE
€ 1.50
21
3418349000
ref: 21
SCREW,SPEEDOMETER
€ 2.00
22
3630049810
ref: 22
LENS SET,PILOT LAMP
€ 22.00
23
0911108040
ref: 23
BOLT
0911108040
€ 4.00
24
3495631000
ref: 24
CUSHION,METER
3495631000
€ 4.50
25
0832221108
ref: 25
WASHER
0832221108
€ 2.50
26
0916008002
ref: 26
WASHER (8.5X29X1.6)
0916008002
€ 2.00
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0831012088
ref: 28
NUT
0831012088
€ 2.00
29
3491045120
ref: 29
TO 34910-45121
CABLE ASSEMBLY,SPEEDOMETER
3491045120
€ 24.00
30
3493845100
ref: 30
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
31
0832221068
ref: 31
WASHER
0832221068
€ 2.00
32
0110706168
ref: 32
BOLT, UPPER
€ 3.00
33
3494049012
ref: 33
TO 34940-49013
CABLE ASSEMBLY,TACHOMETER
€ 36.50
