FRONT WHEEL (GS1000T)

GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

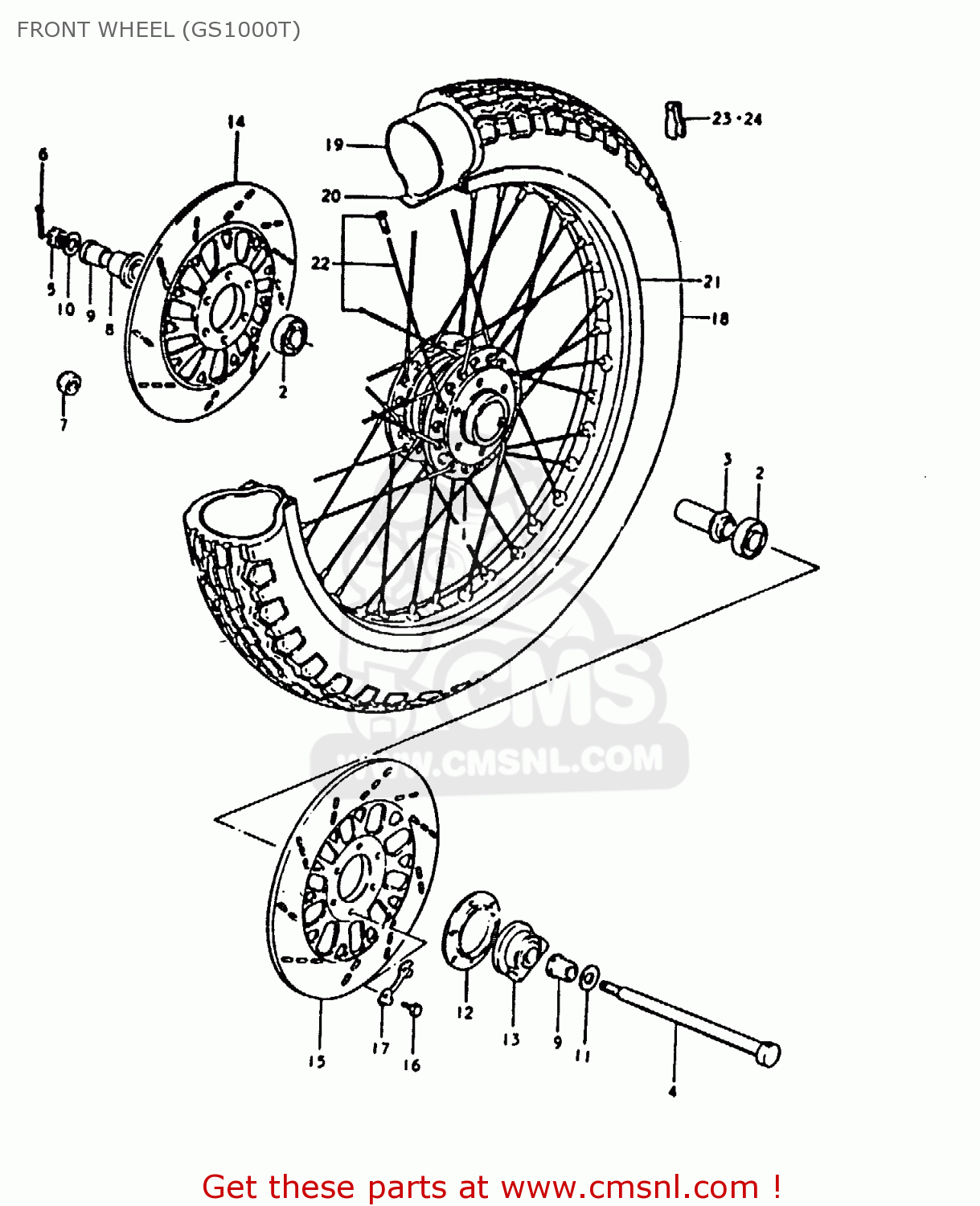

Front wheel (gs1000t) diagram GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

FRONT WHEEL (GS1000T) GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
FRONT WHEEL (GS1000T) GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
FRONT WHEEL (GS1000T) GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
5411147001
ref: 1
DRUM,FRONT HUB
€ 185.00

2
0812363027
ref: 2
BEARING
€ 18.00

3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 12.50

4
5471149000
ref: 4
AXLE,FR
€ 38.50

5
0831431128
ref: 5
NUT 12MM
€ 2.00

6
0411130308
ref: 6
COTTER PIN
€ 1.00

7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00

8
5474018402
ref: 8
SPACER,FR AXLE,R
€ 17.00

9
5474149000
ref: 9
SPACER,FR AXLE,L
€ 12.50

10
0832221128
ref: 10
WASHER
€ 1.50

11
NOTUSED
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00

12
5487145010
ref: 12
DUST SEAL,SPEEDOMETER GEAR BOX
€ 5.50

13
5460018401
ref: 13
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 86.00

14
5921145250
ref: 14
DISC,FR BRAKE,R
€ 149.50

15
5922145250
ref: 15
DISC,FR BRAKE,L
€ 149.50

16
0910008140
ref: 16
BOLT(8X25)
€ 2.00

17
0916908016
ref: 17
WASHER
€ 3.00

18-1
5510049010
ref: 18-1

IRC
TIRE,FRONT
€ 303.50

18-2
NOTUSED
ref: 18-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00

19
5520015010
ref: 19
TUBE,INNER
€ 4.50

20
5526115010
ref: 20
PROTECTOR,WHL INR TUBE
€ 2.50

21
5531149000
ref: 21
RIM,FRONT WHEEL
€ 0.00

22
5530049810
ref: 22
SPOKE SET,FRONT
€ 43.00

23
5541111000
ref: 23

(0~3)
BALANCER,WHEEL (B)
€ 5.00

24
5541211000
ref: 24

(0~3)
BALANCER,WHEEL (30G)
€ 6.00
