TURN SIGNAL LAMP (E39)

GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

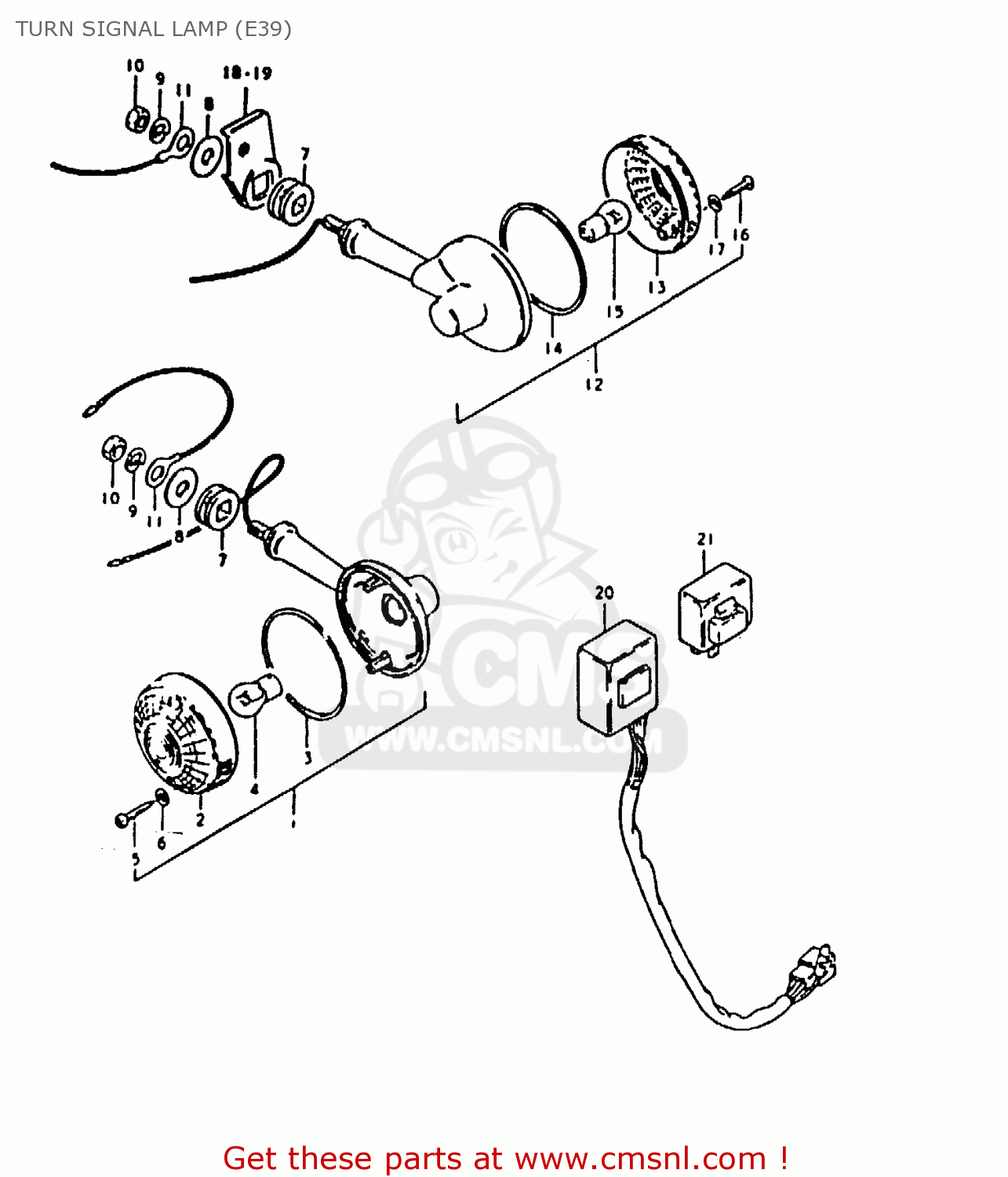

Turn signal lamp (e39) diagram GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

3560345611999
ref: 1

LAMP, REAR TURN SIGNAL

€ 0.00

3561245611
ref: 2

LENS

€ 11.50

3561345010
ref: 3

GASKET (NAS)

€ 7.50

0211204308
ref: 4

SCREW (4X30)

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0947112045
ref: 6
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

3569032200
ref: 7

CUSHION

€ 38.50

0916010006
ref: 8

WASHER (10.5X30X2.3)

€ 2.50

0832121108
ref: 9

LOCK WASHER

€ 2.00

0831012108
ref: 10

NUT

€ 2.50

3666033000
ref: 11

LEAD WIRE,EARTH

€ 5.00

3560345611999
ref: 12

LAMP, REAR TURN SIGNAL

€ 0.00

3561245611
ref: 13

LENS

€ 11.50

3561345010
ref: 14

GASKET (NAS)

€ 7.50

0211204308
ref: 15

SCREW (4X30)

€ 1.50

3562743010
ref: 16

GASKET (NAS)

€ 2.00

0947112045
ref: 17
EXECUTED LOCALLY)

BULB(12V21W)

€ 5.00

4158045000019
ref: 18

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

4159045000019
ref: 19

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

3861049230
ref: 20
TO 38610-49231

RELAY,TURN SIGNAL

€ 71.00

3883049200
ref: 21

UNIT,TURN SIGNAL CONTROL

€ 269.50
