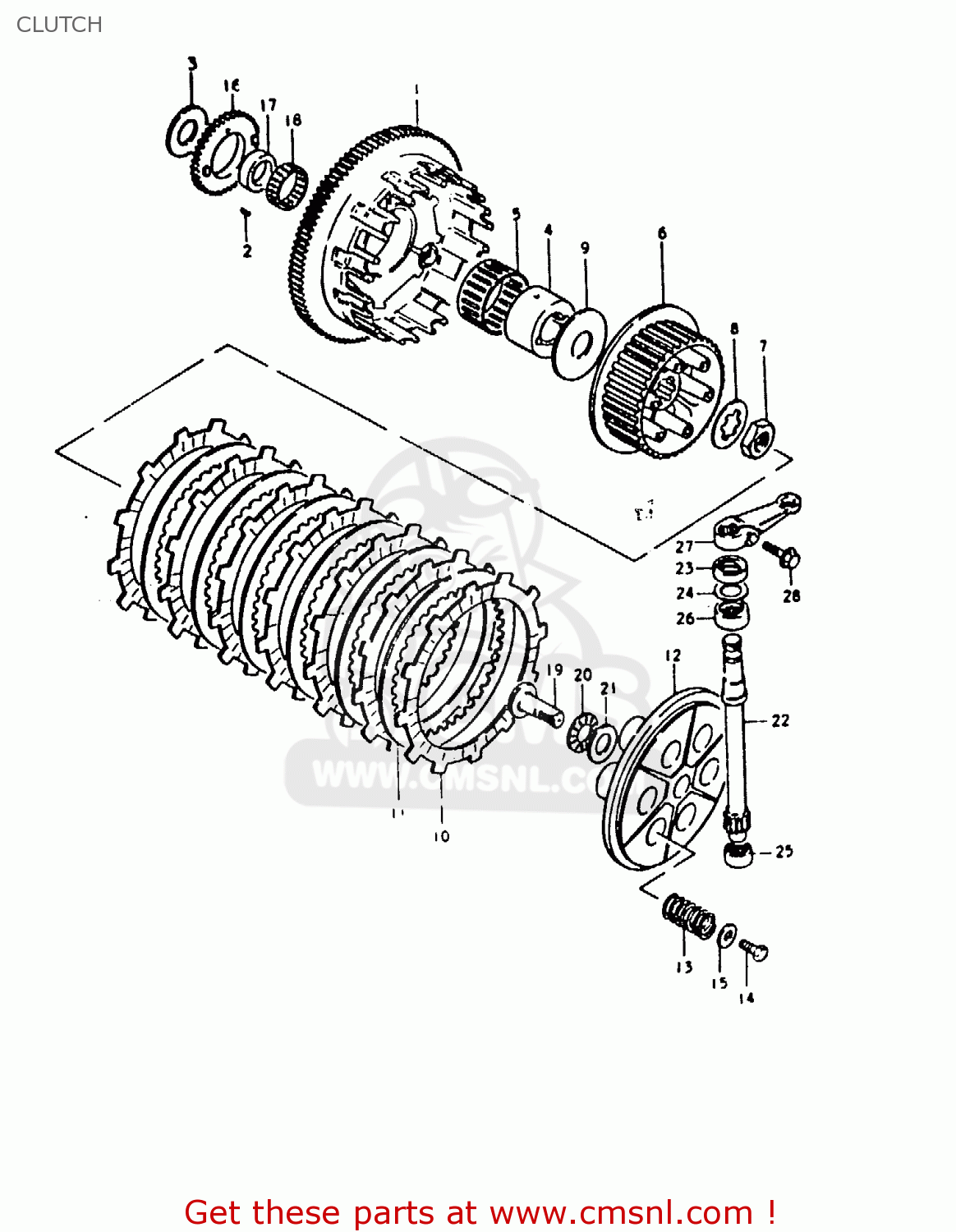

CLUTCH

ref

part #

description

quantity

1

2120049002
ref: 1
NT:87

GEAR ASSEMBLY,PRIMARY DRIVE

€ 409.50

2

2121549000
ref: 2

CUSHION,PRIMARY DRIVEN GEAR

€ 3.00

3

0916025023
ref: 3

WASHER

€ 9.50

4

2125145001
ref: 4

SPACER,PRIMARY DRIVEN

€ 65.50

5

0926351001
ref: 5

BEARING

€ 37.00

6

2141149002
ref: 6

HUB,CLUTCH SLEEVE

€ 202.50

7

0914024004
ref: 7

NUT

€ 4.50

8

0916725007
ref: 8

WASHER,LOCK

€ 7.50

9

0916025022
ref: 9

WASHER(25X66X3.5)

€ 13.50

10

2144149001
ref: 10

PLATE,CLUTCH DRIVE (MCA)

€ 22.00

11

2145149000
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 7.00

12

2146249000
ref: 12

DISC,CLUTCH PRESSURE

€ 100.00

13

0944019007
ref: 13

SPRING

€ 3.00

14

0110706168
ref: 14

BOLT, UPPER

€ 3.00

15

0916006020
ref: 15

WASHER

€ 2.00

16

1632149990
ref: 16

GEAR,OIL PUMP DRIVE

€ 78.50

17

1632545001
ref: 17

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

18

0926336002
ref: 18

BEARING(36X40X10)

€ 24.50

19

2316549000
ref: 19

RACK,CLUTCH RELEASE

€ 15.00

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015015
ref: 21

WASHER

€ 4.00

22

2326149001
ref: 22

PINION,CLUTCH RELEASE

€ 28.00

23

0928512002
ref: 23

OIL SEAL

€ 7.00

24

0916014003
ref: 24

WASHER (14.2X22X1)

€ 1.00

25

0926312014
ref: 25

BEARING(12X19X12)

€ 11.00

26

0926315012
ref: 26

BEARING(15X22X12)

€ 11.50

27

2327149001
ref: 27

ARM,CLUTCH RELEASE

€ 31.50

28

0152706207
ref: 28

BOLT

€ 2.50

all assemblies
