Buy Suzuki GS Parts Online

OIL PUMP - OIL FILTER

GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

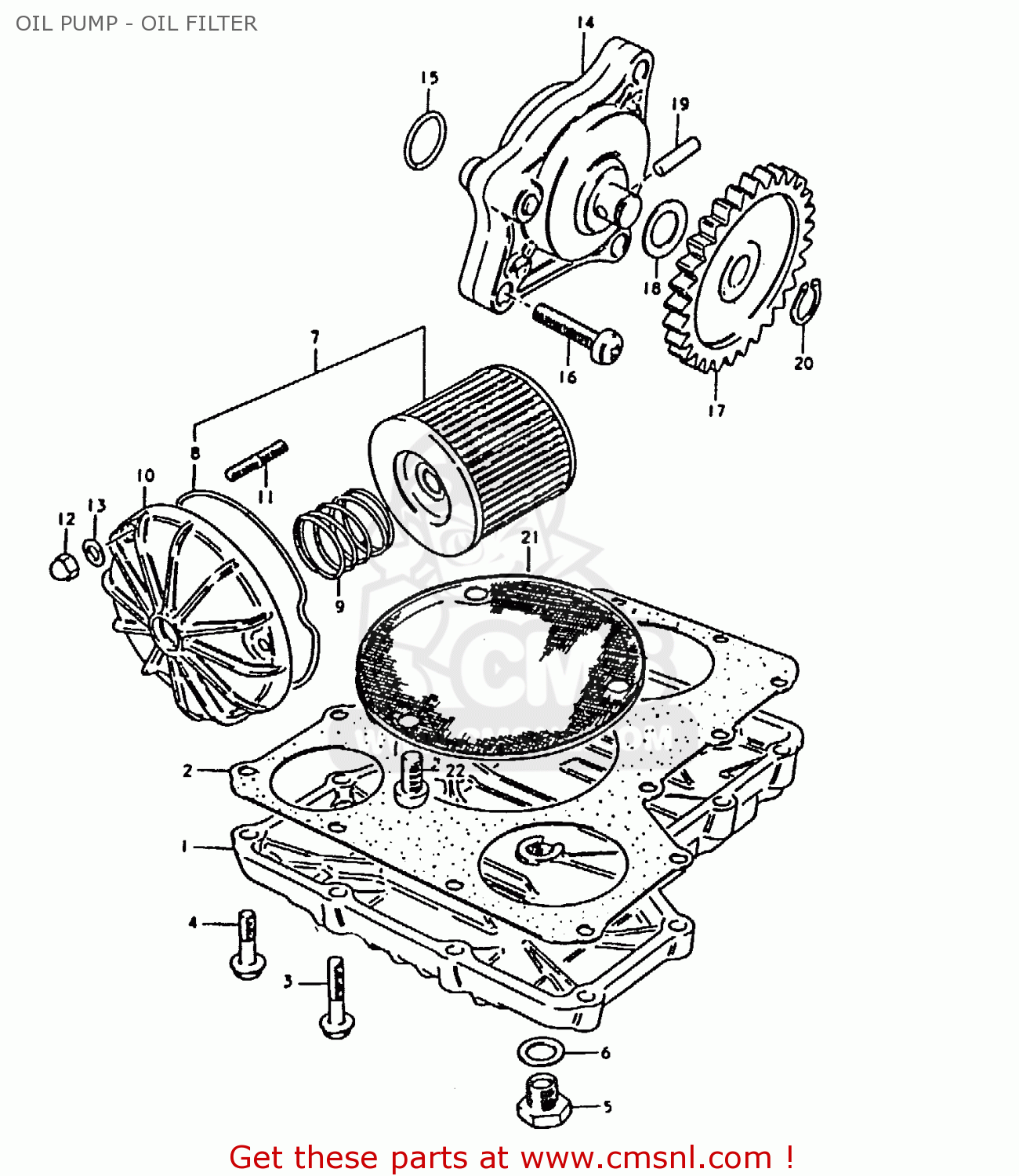

Oil pump - oil filter diagram GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)

OIL PUMP - OIL FILTER GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
OIL PUMP - OIL FILTER GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
OIL PUMP - OIL FILTER GS1000H 1980 (T) (E01 E02 E04 E17 E18 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1151145000
ref: 1
PAN,OIL
€ 130.00

2
1148945001
ref: 2
GASKET,OIL PAN (MCA)
€ 13.00

3
0151706308
ref: 3
BOLT
€ 2.50

4
0151706258
ref: 4
BOLT
€ 1.50

5
0924714001
ref: 5
PLUG
€ 4.00

6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 1.50

7
1650045810
ref: 7
ENGINE OIL FILTER SET
€ 11.50

8
1651845000
ref: 8
O RING,OIL FILTER CHAMBER CAP
€ 5.50

9
0944032004
ref: 9
SPRING
€ 2.00

10
1651245100
ref: 10
CAP,OIL FILTER
€ 31.00

11
0142106208
ref: 11
STUD 6X20
€ 1.50

12
0831311068
ref: 12
NUT
€ 1.50

13
0832221068
ref: 13
WASHER
€ 1.50

14
1640049011
ref: 14
PUMP ASSEMBLY,OIL
€ 121.00

15
0928013004
ref: 15
O RING(D:1.9,ID:13)
€ 2.00

16
0211206258
ref: 16
SCREW
€ 1.50

17
1633149990
ref: 17
GEAR,OIL PUMP DRIVEN
€ 90.50

18
0822110185
ref: 18
SHIM
€ 1.50

19
0926104009
ref: 19
PIN(4X15.8)
€ 1.50

20
0833131109
ref: 20
CIRCLIP
€ 1.50

21
1652045000
ref: 21
STRAINER,ENGINE OIL
€ 10.00

22
0211206128
ref: 22
SCREW 6X12
€ 2.00
