CARBURETOR
GS1000L 1979 (N) USA (E03)

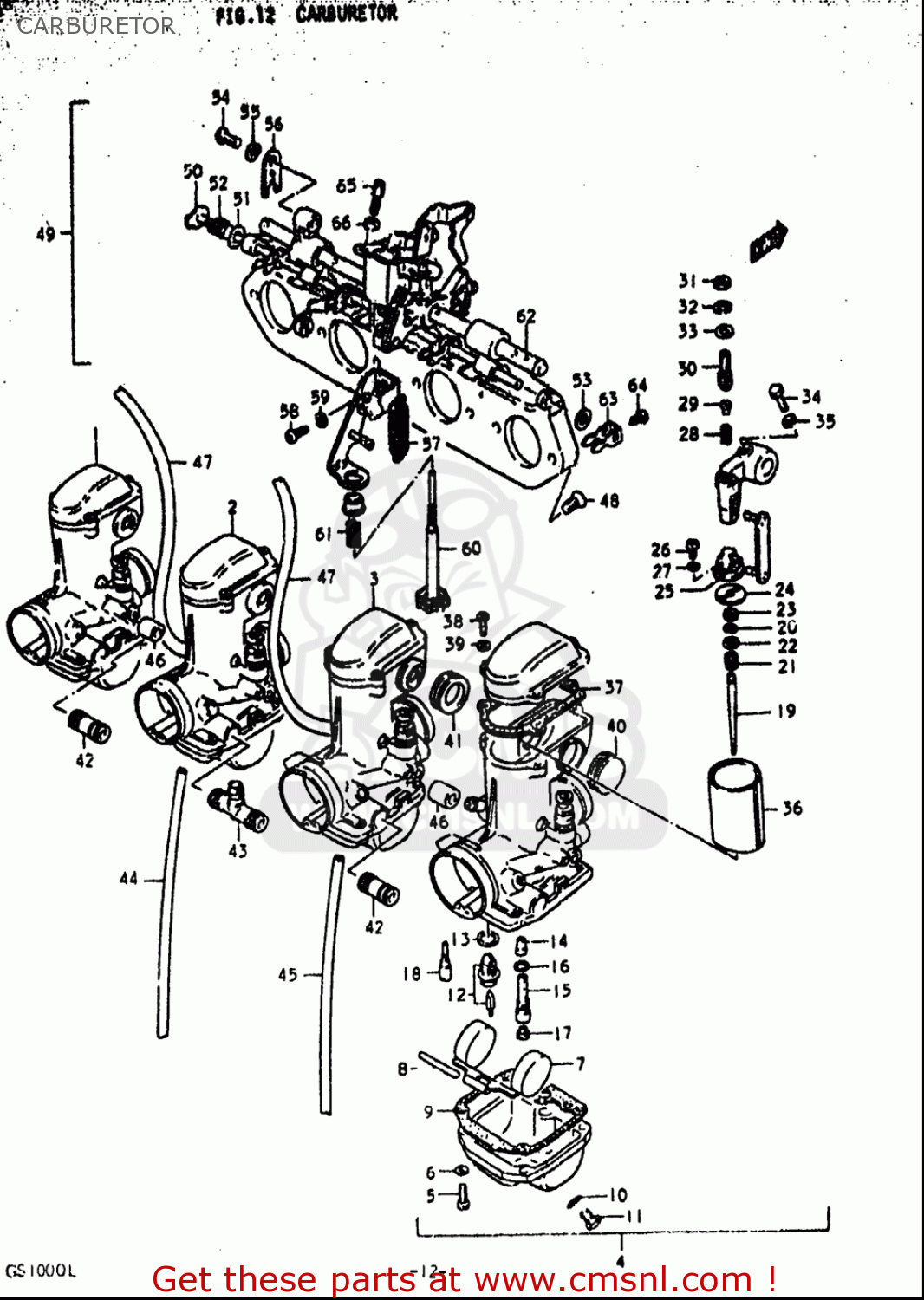

Carburetor diagram GS1000L 1979 (N) USA (E03)
CARBURETOR GS1000L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5
0211204163
ref: 5
SCREW 4X16
€ 1.00
6
0832101043
ref: 6
WASHER,LOCK
€ 2.00
7
1325243010
ref: 7
FLOAT
€ 41.00
8
1325401010
ref: 8
PIN,FLOAT
€ 3.00
9
1325143010
ref: 9
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
10
1324643010
ref: 10
O RING
€ 4.00
11
1324745010
ref: 11
SCREW
€ 7.50
12
1337018111
ref: 12
VALVE ASSY,NEEDLE
€ 51.50
13
1339258600
ref: 13
GASKET,VALVE SEAT (NAS)
€ 2.00
15
1338545010
ref: 15
PIPE,BLEEDER
€ 36.00
16
1324643010
ref: 16
O RING
€ 4.00
17
0949195005
ref: 17
JET,MAIN(95)
€ 8.50
18
0949215005
ref: 18
JET,PILOT
€ 15.00
19
1338345030
ref: 19
NEEDLE,JET
€ 19.50
20
1339410010
ref: 20
CLIP
€ 4.50
21
1338847010
ref: 21
SPRING
€ 7.00
22
1338247010
ref: 22
WASHER,JET NEEDLE
€ 3.00
23
1338747010
ref: 23
RING
€ 7.50
26
0211203163
ref: 26
SCREW
€ 1.50
27
0916203001
ref: 27
WASHER,LOCK
€ 1.50
31
0831000057
ref: 31
NUT
€ 2.50
32
0832101057
ref: 32
WASHER,LOCK
€ 2.00
33
0832201057
ref: 33
WASHER
€ 2.50
34
0150005163
ref: 34
BOLT
€ 1.50
35
0832101057
ref: 35
WASHER,LOCK
€ 2.00
37
1326643010
ref: 37
GASKET (NAS)
€ 7.00
38
0211204163
ref: 38
SCREW 4X16
€ 1.00
39
0832101043
ref: 39
WASHER,LOCK
€ 2.00
41
1355645010
ref: 41
SEAL
€ 15.50
46
0935260103600
ref: 46
HOSE(6X10X600)
€ 18.00
47
0935545855600
ref: 47
HOSE(4.5X8.5X600)
€ 14.00
48
0912606007
ref: 48
SCREW(6X14)
€ 2.50
51
1343249020
ref: 51
WASHER
€ 3.00
53
1361545010
ref: 53
WASHER,STARTER SHAFT
€ 3.50
54
0211205167
ref: 54
SCREW
€ 2.50
55
0832101057
ref: 55
WASHER,LOCK
€ 2.00
57
1357345010
ref: 57
SPRING,THROTTLE RETURN
€ 23.00
58
0211205167
ref: 58
SCREW
€ 2.50
59
0832101057
ref: 59
WASHER,LOCK
€ 2.00
64
1360531210
ref: 64
SCREW
€ 3.00
65
1357748110
ref: 65
ADJUSTER,CABLE
€ 8.00
66
1366116600
ref: 66
NUT
€ 5.00
