FRAME

GS1000L 1979 (N) USA (E03)

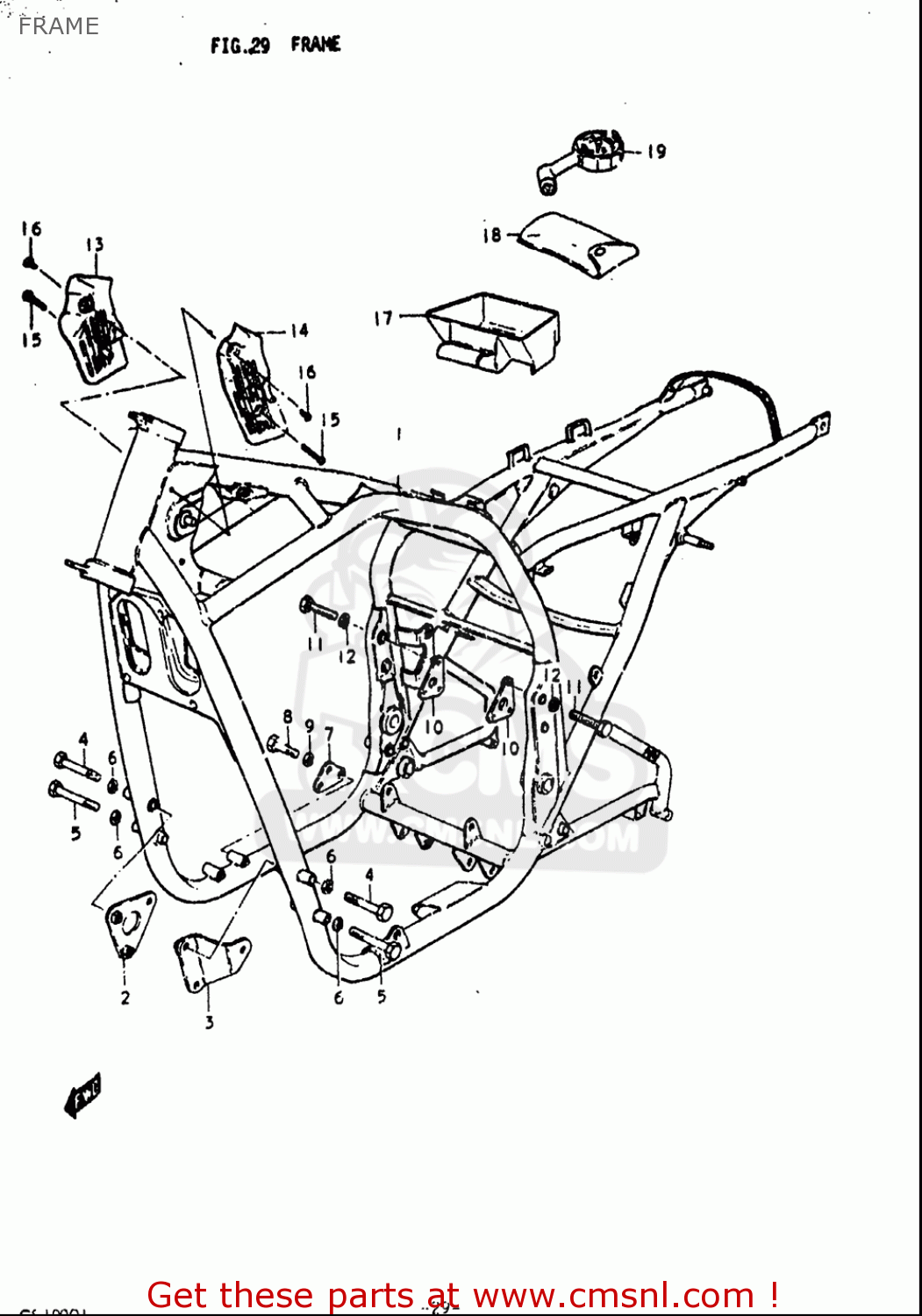

Frame diagram GS1000L 1979 (N) USA (E03)

FRAME GS1000L 1979 (N) USA (E03)

FRAME GS1000L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

4

0150008653
ref: 4

BOLT

€ 3.00

5

0150008703
ref: 5

BOLT

€ 2.50

6

0832101087
ref: 6

WASHER,LOCK

€ 2.00

7

419214900013L
ref: 7

PLATE,ENG MTG NO.2

€ 30.00

8

0150008163
ref: 8

BOLT

€ 2.00

9

0832101087
ref: 9

WASHER,LOCK

€ 2.00

10

419404900013L
ref: 10

PLATE,ENG MTG NO.4

€ 60.00

11

0150008353
ref: 11

BOLT

€ 3.50

12

083210108A
ref: 12

WASHER,LOCK

€ 2.00

15

0214205503
ref: 15

SCREW

€ 2.00

16

021420510A
ref: 16

SCREW

€ 2.50

18

0980021011
ref: 18

TOOL ASSY

€ 50.00
