REAR FENDER

GS1000L 1979 (N) USA (E03)

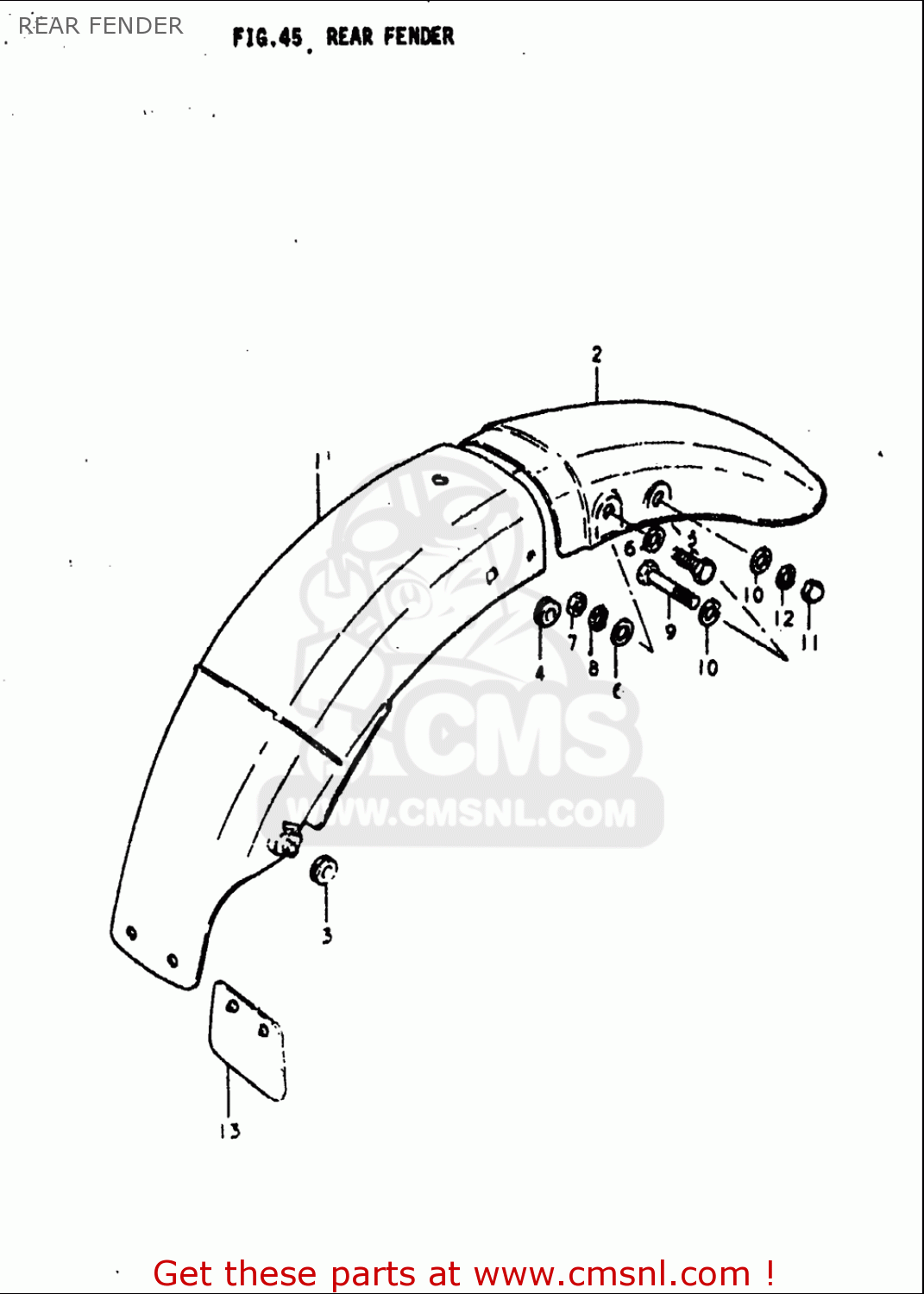

Rear fender diagram GS1000L 1979 (N) USA (E03)

REAR FENDER GS1000L 1979 (N) USA (E03)

REAR FENDER GS1000L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0932006504
ref: 4

CUSHION

€ 4.00

5

0150008163
ref: 5

BOLT

€ 2.00

6

0832201087
ref: 6

WASHER

€ 2.00

7

0831000087
ref: 7

NUT

€ 2.00

8

0832101087
ref: 8

WASHER,LOCK

€ 2.00

9

0120408357
ref: 9

BOLT

€ 3.50

10

0832201087
ref: 10

WASHER

€ 2.00

11

0831000087
ref: 11

NUT

€ 2.00

12

0832101087
ref: 12

WASHER,LOCK

€ 2.00

13

6341131900
ref: 13

GUIDE,RR FENDER MUD

€ 8.00
