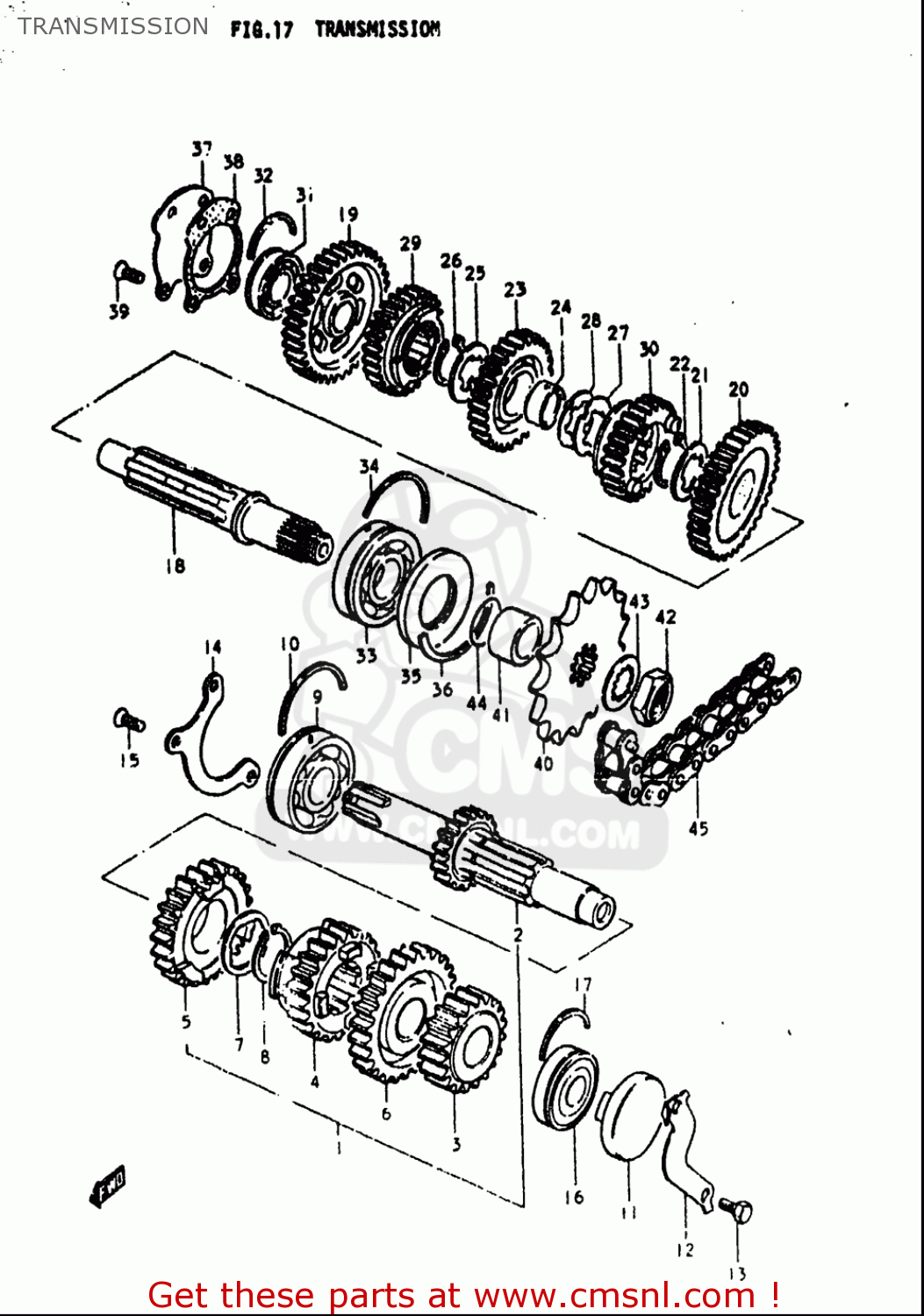

TRANSMISSION

ref

part #

description

quantity

6

2425049000
ref: 6

GEAR,FIFTH DRIVE

€ 108.50

7

0916728001
ref: 7

WASHER,LOCK

€ 3.00

8

083313128A
ref: 8

CIRCLIP

€ 2.50

9

0926225105
ref: 9

BEARING(25X62X17)

€ 59.50

10

0939062012
ref: 10

C RING

€ 5.00

11

0924147004
ref: 11

PLUG

€ 12.00

12

2311745000
ref: 12

RETAINER,CL PUSH ROD OIL SEAL

€ 14.00

13

0150006127
ref: 13

BOLT

€ 2.00

14

2474145000
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 8.00

15

0212206167
ref: 15

SCREW

€ 2.00

16

0926220044
ref: 16

BEARING(20X47X14)

€ 30.00

17

0939047003
ref: 17

C RING

€ 3.00

21

0916728001
ref: 21

WASHER,LOCK

€ 3.00

22

083313128A
ref: 22

CIRCLIP

€ 2.50

24

2433249000
ref: 24

BUSH,3RD DRIVEN GEAR

€ 13.50

25

0916728001
ref: 25

WASHER,LOCK

€ 3.00

26

083313128A
ref: 26

CIRCLIP

€ 2.50

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916928001
ref: 28

WASHER

€ 3.00

31

0926220044
ref: 31

BEARING(20X47X14)

€ 30.00

32

0939047003
ref: 32

C RING

€ 3.00

33

0926225105
ref: 33

BEARING(25X62X17)

€ 59.50

34

0939062012
ref: 34

C RING

€ 5.00

35

0928332012
ref: 35

SEAL,OIL(32X62X7)

€ 19.00

36

0939062008
ref: 36

C RING

€ 3.50

37

2476145000
ref: 37

PLATE,DRIVE SHAFT

€ 4.50

38

2476245000H17
ref: 38

GASKET,DRIVE SHAFT PLATE (NAS)

€ 2.50

39

0212206167
ref: 39

SCREW

€ 2.00

40

2751049012
ref: 40

SPROCKET,ENGINE(NT:15)

€ 62.50

41

0918025052
ref: 41

SPACER(25X32X18.6)

€ 9.00

42

0915920004
ref: 42

NUT

€ 12.00

43

0916725019
ref: 43

WASHER,LOCK

€ 2.50

44

0928025001
ref: 44

O RING(D:1,ID:24.5)

€ 2.50

45

2760049210
ref: 45

CHAIN,DRIVE(DID630YL,96LE)

€ 266.50

all assemblies
