REAR MASTER CYLINDER
GS1000L 1979 (N) USA (E03)

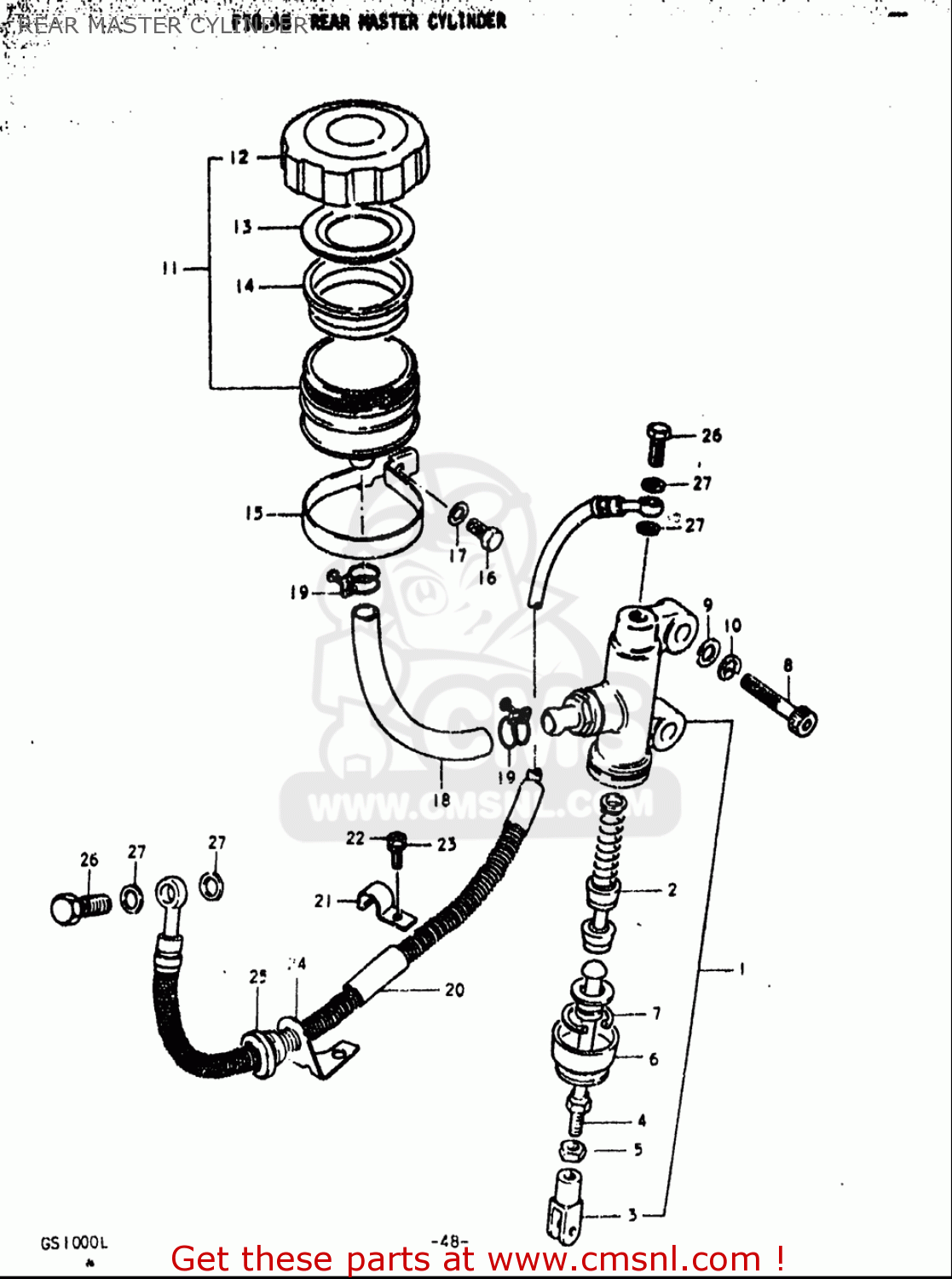

Rear master cylinder diagram GS1000L 1979 (N) USA (E03)
REAR MASTER CYLINDER GS1000L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960047011
ref: 1
CYLINDER ASSY,RR MASTER
€ 182.00
2
6960045820
ref: 2
PISTON/CUP SET
€ 53.00
3
6969234300
ref: 3
YOKE
€ 11.00
4
6967045001
ref: 4
ROD,PUSH
€ 18.50
5
0831000087
ref: 5
NUT
€ 2.00
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0150008307
ref: 8
BOLT
€ 2.50
9
0832201087
ref: 9
WASHER
€ 2.00
10
0832101087
ref: 10
WASHER,LOCK
€ 2.00
11
69740470V0
ref: 11
TANK ASSY,RESERVOIR
€ 41.00
12
5966907D00
ref: 12
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0940251602
ref: 15
CLAMP
€ 6.50
16
0150006167
ref: 16
BOLT
€ 3.00
17
0832101067
ref: 17
WASHER,LOCK
€ 2.50
18
5124185X50
ref: 18
HOSE,BRAKE RESERVOIR
€ 34.00
19
0940016301
ref: 19
CLAMP
€ 4.50
22
0912806013
ref: 22
SCREW(6X8)
€ 1.50
23
0832101067
ref: 23
WASHER,LOCK
€ 2.50
24
6924347000
ref: 24
GUIDE,BRAKE HOSE
€ 5.50
25
5924436200
ref: 25
GROMMET,BRAKE HOSE GUIDE
€ 4.00
26
0936010017
ref: 26
BOLT UNION
€ 6.50
27
0916110009
ref: 27
WASHER(10X15X1.5)
€ 2.00
