FRONT MASTER CYLINDER

GS1000L 1979 (N) USA (E03)

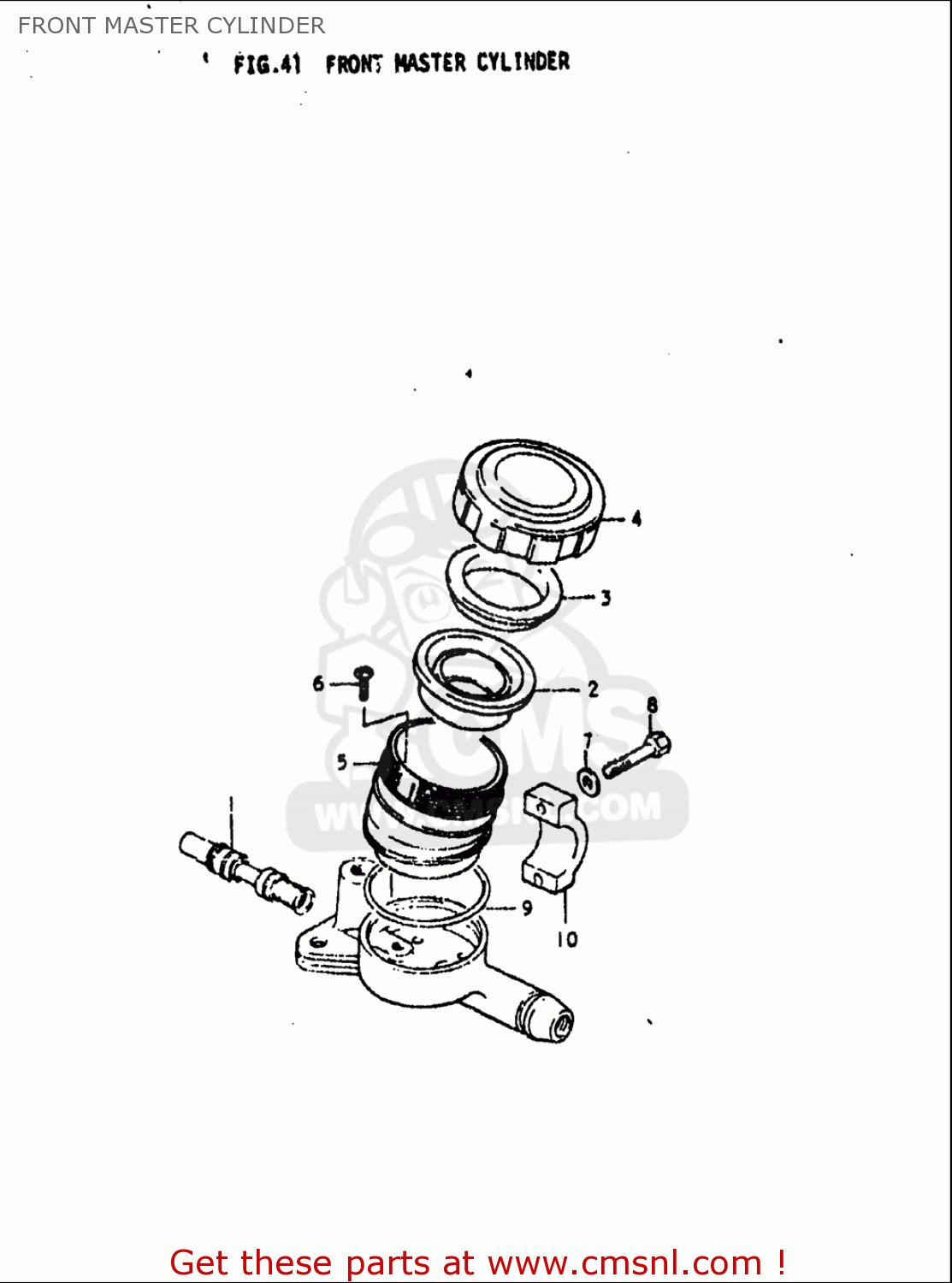

Front master cylinder diagram GS1000L 1979 (N) USA (E03)

FRONT MASTER CYLINDER GS1000L 1979 (N) USA (E03)

FRONT MASTER CYLINDER GS1000L 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960047810
ref: 1

PISTON & CUP SET

€ 33.00

2

5966733620
ref: 2

DIAPHRAGM

€ 25.00

3

5966833620
ref: 3

PLATE

€ 6.00

5

5968747050
ref: 5

RESERVOIR

€ 22.00

7

083220106A
ref: 7

WASHER

€ 2.00

8

015000625A
ref: 8

BOLT

€ 2.50

9

5968633620
ref: 9

O RING

€ 6.00
