FOOTREST
GS1000L 1979 (N) USA (E03)

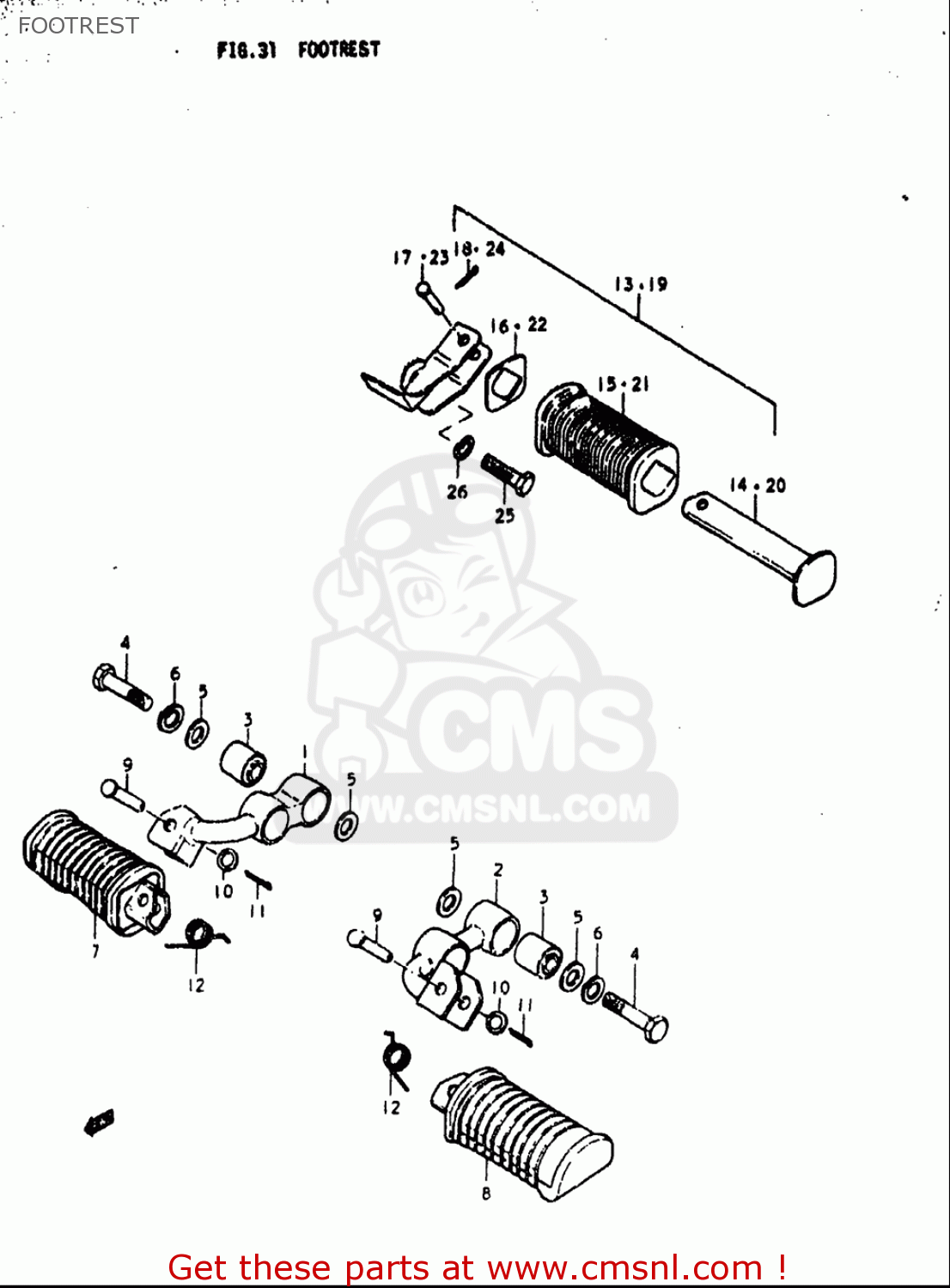

Footrest diagram GS1000L 1979 (N) USA (E03)
FOOTREST GS1000L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
4352049010
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 50.50
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910410029
ref: 4
BOLT(10X38)
€ 3.50
5
0916010123
ref: 5
WASHER(10.5X20X2.3)
€ 2.00
6
0832101107
ref: 6
WASHER,LOCK
€ 2.00
7
4355037301
ref: 7
RUBBER,PILLION FOOTREST,R
€ 22.50
8
4356037301
ref: 8
RUBBER,PILLION FOOTREST,L
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832201087
ref: 10
WASHER
€ 2.00
11
041112020A
ref: 11
PIN
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
15
4361245001
ref: 15
RUBBER,PILLION FOOTREST
€ 15.00
16
4363145001
ref: 16
WASHER,PILLION FOOTREST RUBBER
€ 16.00
17
0920006010
ref: 17
PIN
€ 2.50
18
0411120158
ref: 18
PIN
€ 1.50
21
4361245001
ref: 21
RUBBER,PILLION FOOTREST
€ 15.00
22
4363145001
ref: 22
WASHER,PILLION FOOTREST RUBBER
€ 16.00
23
0920006010
ref: 23
PIN
€ 2.50
24
0411120158
ref: 24
PIN
€ 1.50
25
0150010303
ref: 25
BOLT
€ 3.00
26
0832101107
ref: 26
WASHER,LOCK
€ 2.00
