CHAIN CASE - SHOCK ABSORBER

GS1000S 1979 (N) USA (E03)

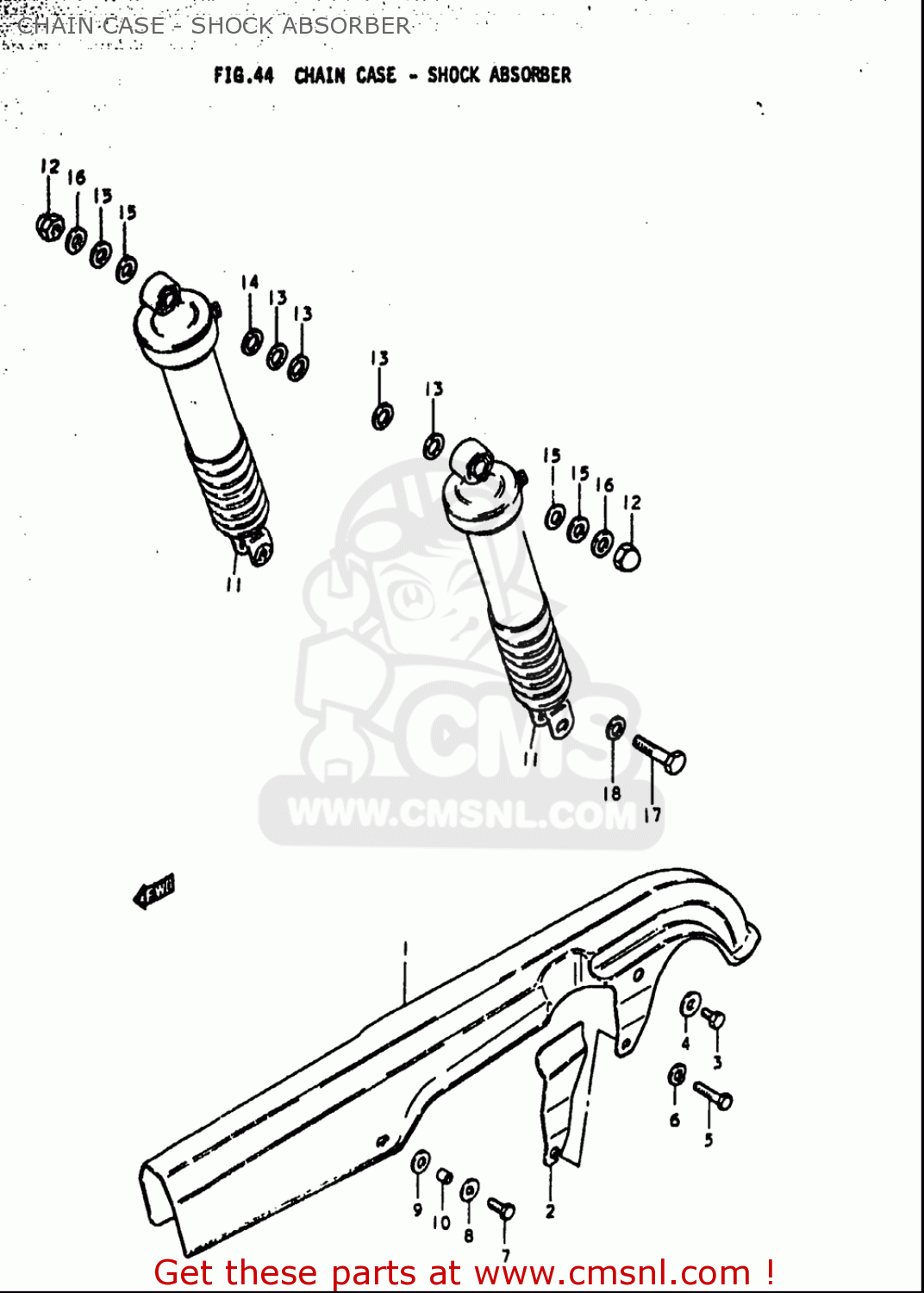

Chain case - shock absorber diagram GS1000S 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

6131149002019
ref: 1

CASE,CHAIN

€ 121.00

6138145000
ref: 2

REINFORCEMENT,CHAIN CASE

€ 42.00

0910006011
ref: 3

BOLT(6X8)

€ 2.50

0916906010
ref: 4

WASHER

€ 3.00

0150006257
ref: 5

BOLT

€ 2.00

0832101067
ref: 6

WASHER,LOCK

€ 2.50

0150006107
ref: 7

BOLT

€ 2.00

0916006028
ref: 8

WASHER(6.5X18X1)

€ 1.50

0916108006
ref: 9

WASHER(8X14X3)

€ 2.00

0918006246
ref: 10

SPACER(6.1X8X5.2)

€ 2.50

0831310107
ref: 12

NUT

€ 2.50

0832201127
ref: 13

WASHER

€ 2.00

0916012082
ref: 14

WASHER(12.5X24X3.2)

€ 2.50

0916010127
ref: 15

WASHER (10.5X24X2.3)

€ 2.00

0916010128
ref: 16

WASHER (10.5X25X3.2)

€ 2.00

0910410002
ref: 17

BOLT(10X36)

€ 4.50

0832201107
ref: 18

WASHER

€ 2.50
