FRONT MASTER CYLINDER

GS1000S 1979 (N) USA (E03)

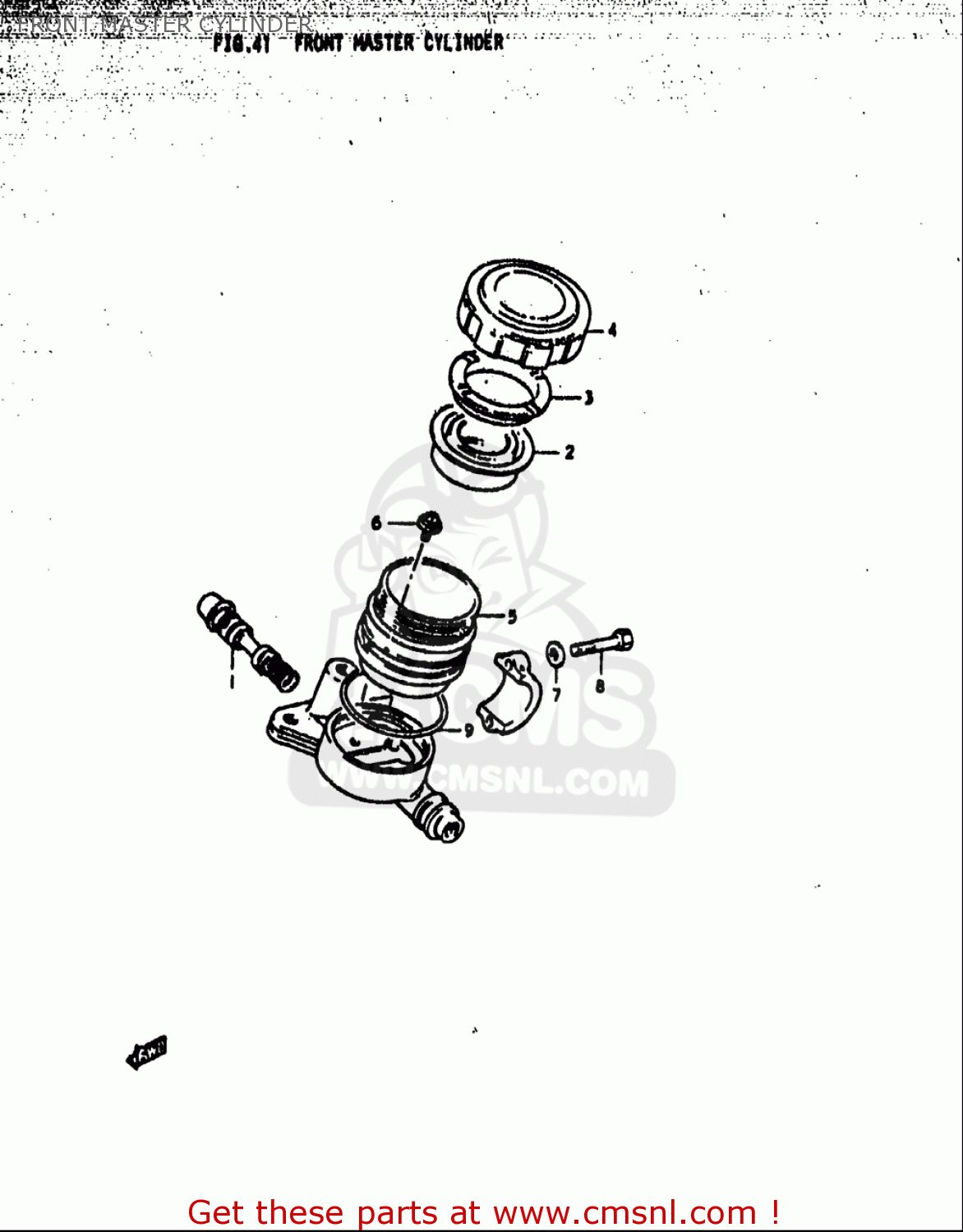

Front master cylinder diagram GS1000S 1979 (N) USA (E03)

FRONT MASTER CYLINDER GS1000S 1979 (N) USA (E03)

FRONT MASTER CYLINDER GS1000S 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960047810
ref: 1

PISTON & CUP SET

€ 33.00

2

5966733620
ref: 2

DIAPHRAGM

€ 25.00

3

5966833620
ref: 3

PLATE

€ 6.00

4

5966933621
ref: 4

CAP

€ 35.00

5

5968747021
ref: 5

RESERVOIR

€ 50.00

7

0832201067
ref: 7

WASHER

€ 2.00

8

0150006257
ref: 8

BOLT

€ 2.00

9

5968633620
ref: 9

O RING

€ 6.00
