STARTING MOTOR

GS1000S 1979 (N) USA (E03)

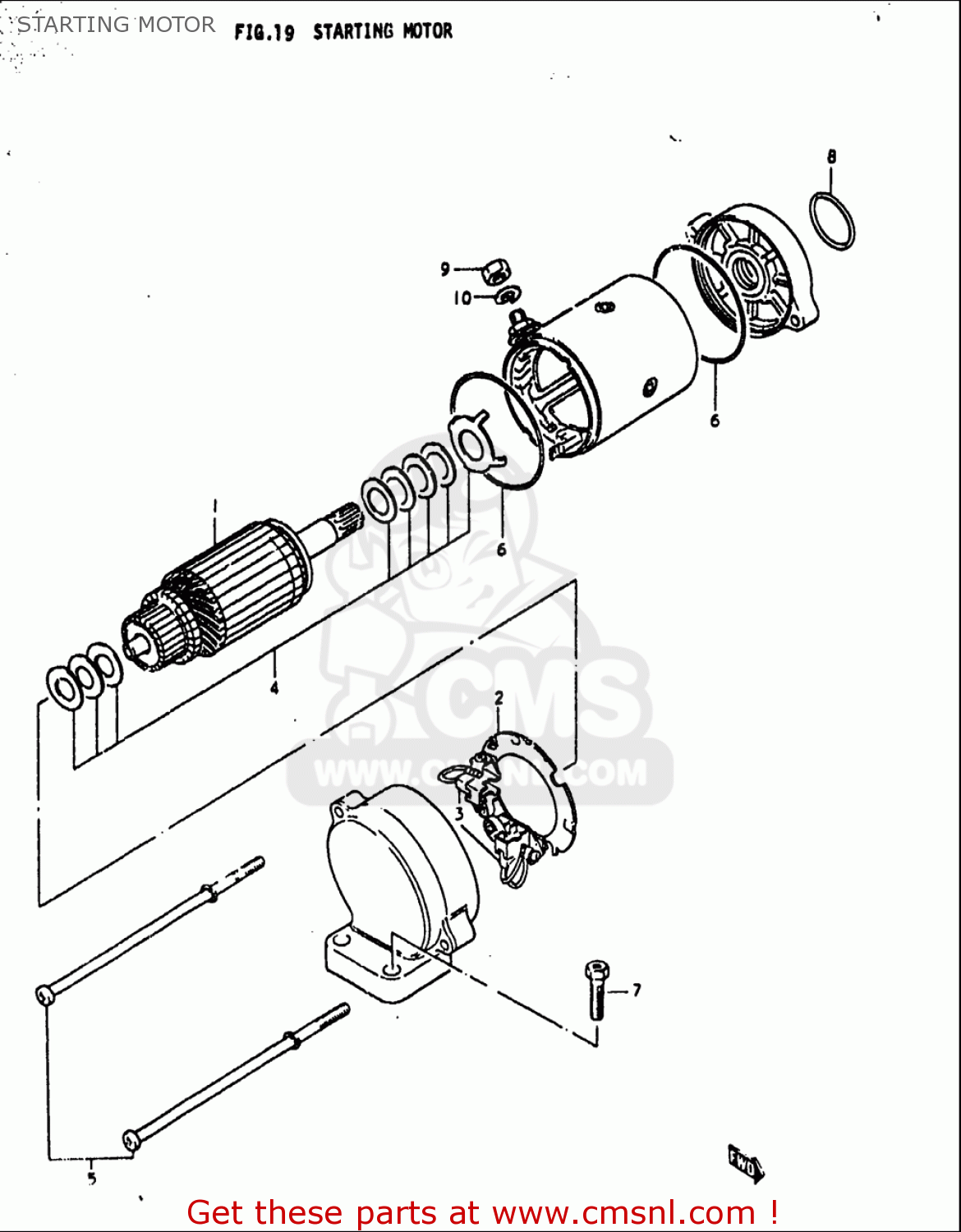

Starting motor diagram GS1000S 1979 (N) USA (E03)

STARTING MOTOR GS1000S 1979 (N) USA (E03)

STARTING MOTOR GS1000S 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

3110049050
ref: 0

MOTOR ASSY,STARTING

€ 873.50

2

3117331040
ref: 2

HOLDER ASSY

€ 25.50

3

3113131040
ref: 3

BRUSH SET

€ 17.00

5

3128026D00
ref: 5

BOLT

€ 12.50

6

3126431040
ref: 6

O RING

€ 8.50

7

0912806024
ref: 7

SCREW (6X25)

€ 2.50

8

0928024001
ref: 8

O RING(D:2,ID:24.5)

€ 2.00

9

0831000067
ref: 9

NUT

€ 2.50

10

0832101067
ref: 10

WASHER,LOCK

€ 2.50
