CYLINDER

GS1000S 1979 (N) USA (E03)

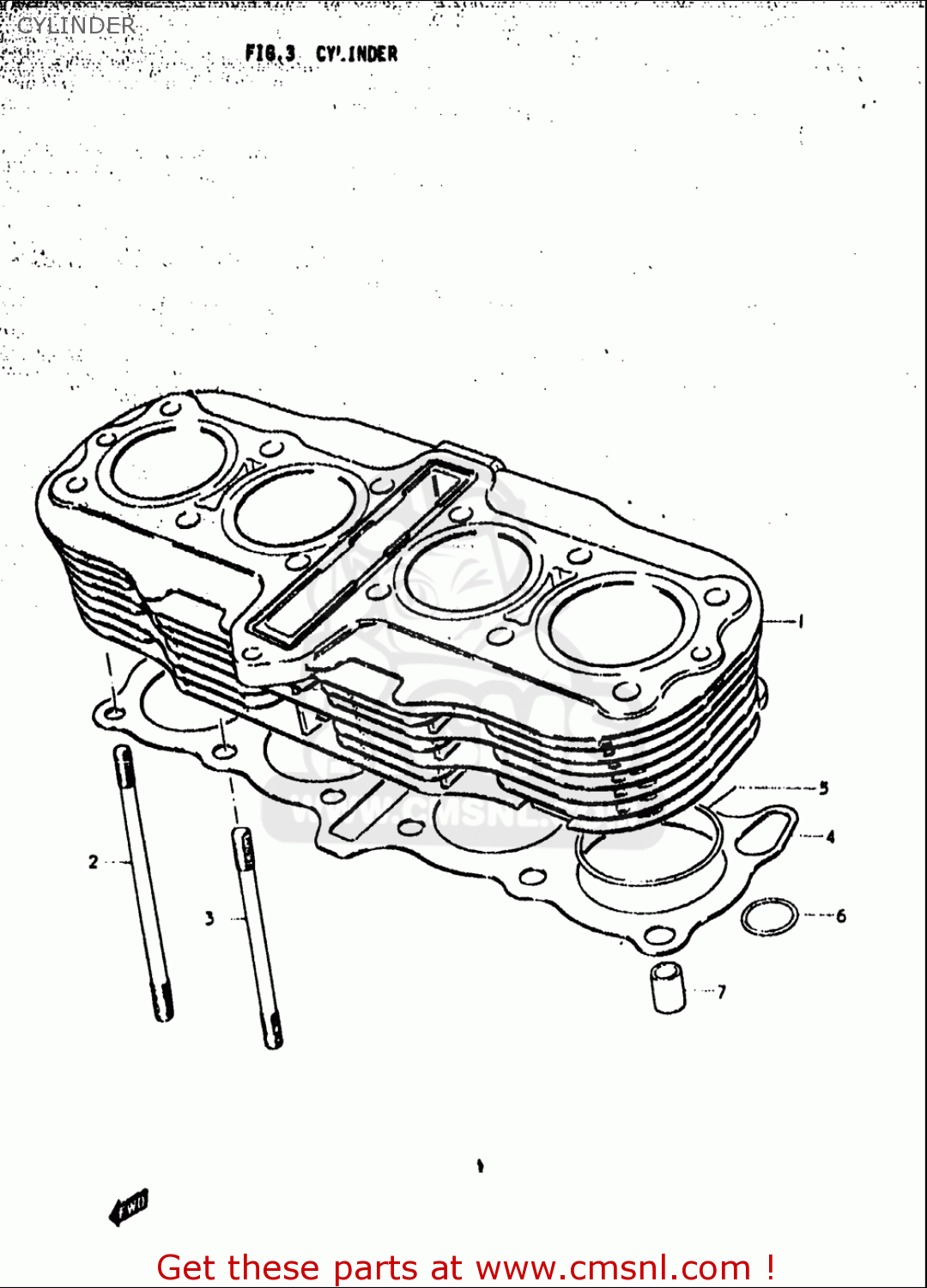

Cylinder diagram GS1000S 1979 (N) USA (E03)

CYLINDER GS1000S 1979 (N) USA (E03)

CYLINDER GS1000S 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810112
ref: 3

BOLT,STUD

€ 9.00

4

1124149000H17
ref: 4

GASKET,CYLINDER (NAS)

€ 17.00

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00

6

0928021007
ref: 6

O RING(D:3.05)

€ 9.00

7

0421113189
ref: 7

PIN

€ 2.50
