TURN SIGNAL LAMP
GS1000S 1979 (N) USA (E03)

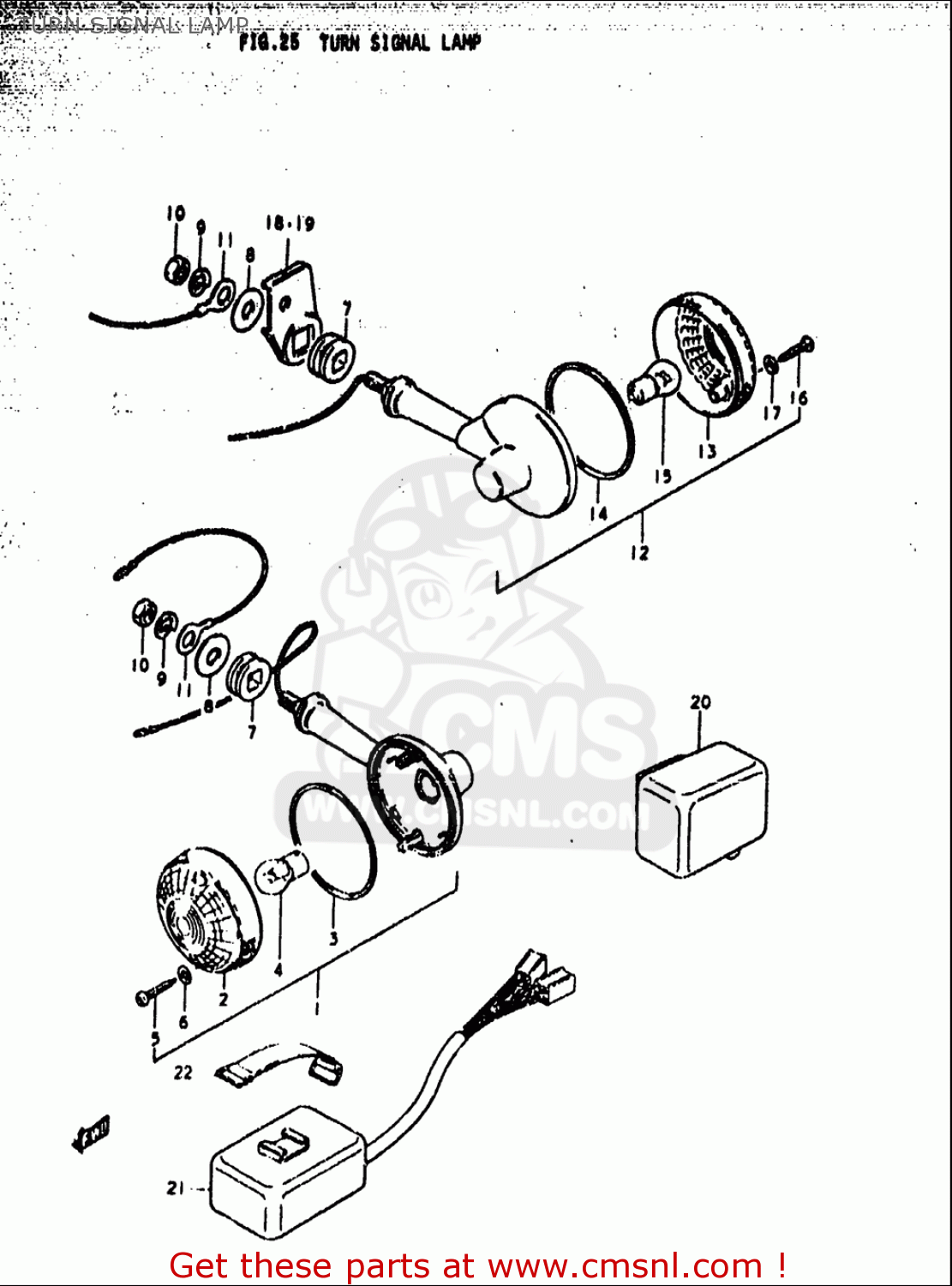

Turn signal lamp diagram GS1000S 1979 (N) USA (E03)
TURN SIGNAL LAMP GS1000S 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560349121999
ref: 1
LAMP ASSY,RR TURNSIGNAL
€ 115.00
2
3561245010
ref: 2
LENS
€ 12.50
3
3561345010
ref: 3
GASKET (NAS)
€ 7.50
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
0321104306
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3569032200
ref: 7
CUSHION
€ 38.50
8
0916008138
ref: 8
WASHER (8.5X30X2.3)
€ 2.00
9
0832101087
ref: 9
WASHER,LOCK
€ 2.00
10
0831000087
ref: 10
NUT
€ 2.00
11
3685145100
ref: 11
LEAD WIRE,EARTH
€ 7.50
12
3560349121999
ref: 12
LAMP ASSY,RR TURNSIGNAL
€ 115.00
13
3561245010
ref: 13
LENS
€ 12.50
14
3561345010
ref: 14
GASKET (NAS)
€ 7.50
15
0947112006
ref: 15
BULB(12V23W,STANLEY,A4577A)
€ 4.00
16
0321104306
ref: 16
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
4158045000019
ref: 18
BRACKET,RR TURNSIGNAL LAMP,R
€ 12.00
19
4159045000019
ref: 19
BRACKET,RR TURNSIGNAL LAMP,L
€ 16.50
20
3861031X50
ref: 20
RELAY ASSY,TURNSIGNAL
€ 54.50
21
3883049001
ref: 21
TURNSIGNAL CONTROL UNIT
€ 537.50
22
0946200033
ref: 22
BAND
€ 6.50
