FRAME

GS1000S 1979 (N) USA (E03)

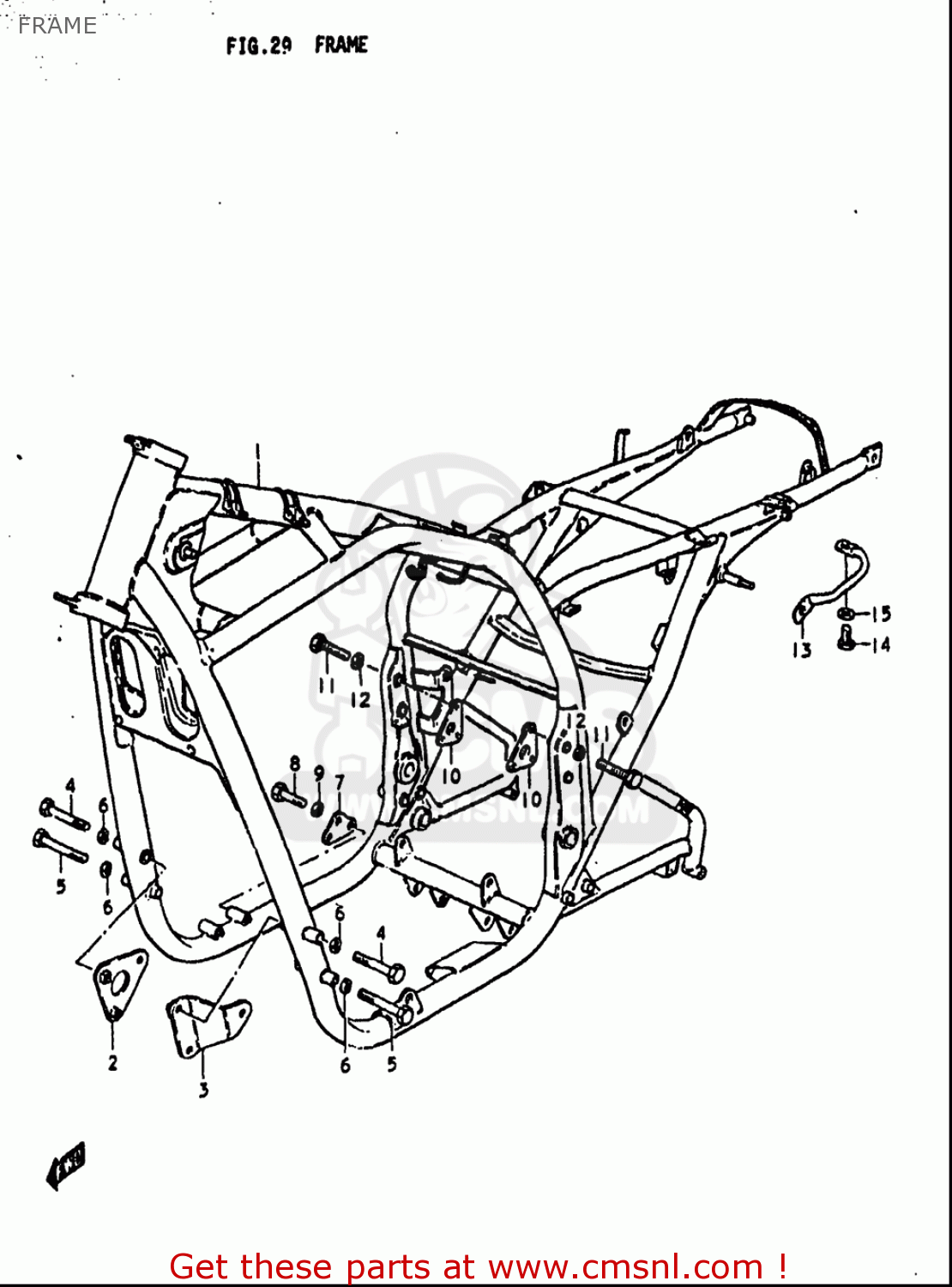

Frame diagram GS1000S 1979 (N) USA (E03)

FRAME GS1000S 1979 (N) USA (E03)
FRAME GS1000S 1979 (N) USA (E03)
FRAME GS1000S 1979 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
4
0150008653
ref: 4
BOLT
0150008653
€ 3.00
5
0150008703
ref: 5
BOLT
€ 2.50
6
0832101087
ref: 6
WASHER,LOCK
0832101087
€ 2.00
7
419214900013L
ref: 7
PLATE,ENG MTG NO.2
419214900013L
€ 30.00
8
0150008163
ref: 8
BOLT
0150008163
€ 2.00
9
0832101087
ref: 9
WASHER,LOCK
0832101087
€ 2.00
10
419404900013L
ref: 10
PLATE,ENG MTG NO.4
419404900013L
€ 60.00
11
0150008353
ref: 11
BOLT
0150008353
€ 3.50
12
0832101087
ref: 12
WASHER,LOCK
0832101087
€ 2.00
13
4161034200
ref: 13
GRIP,FRAME HANDLE
4161034200
€ 38.50
14
0150008163
ref: 14
BOLT
0150008163
€ 2.00
15
0832201087
ref: 15
WASHER
0832201087
€ 2.00
