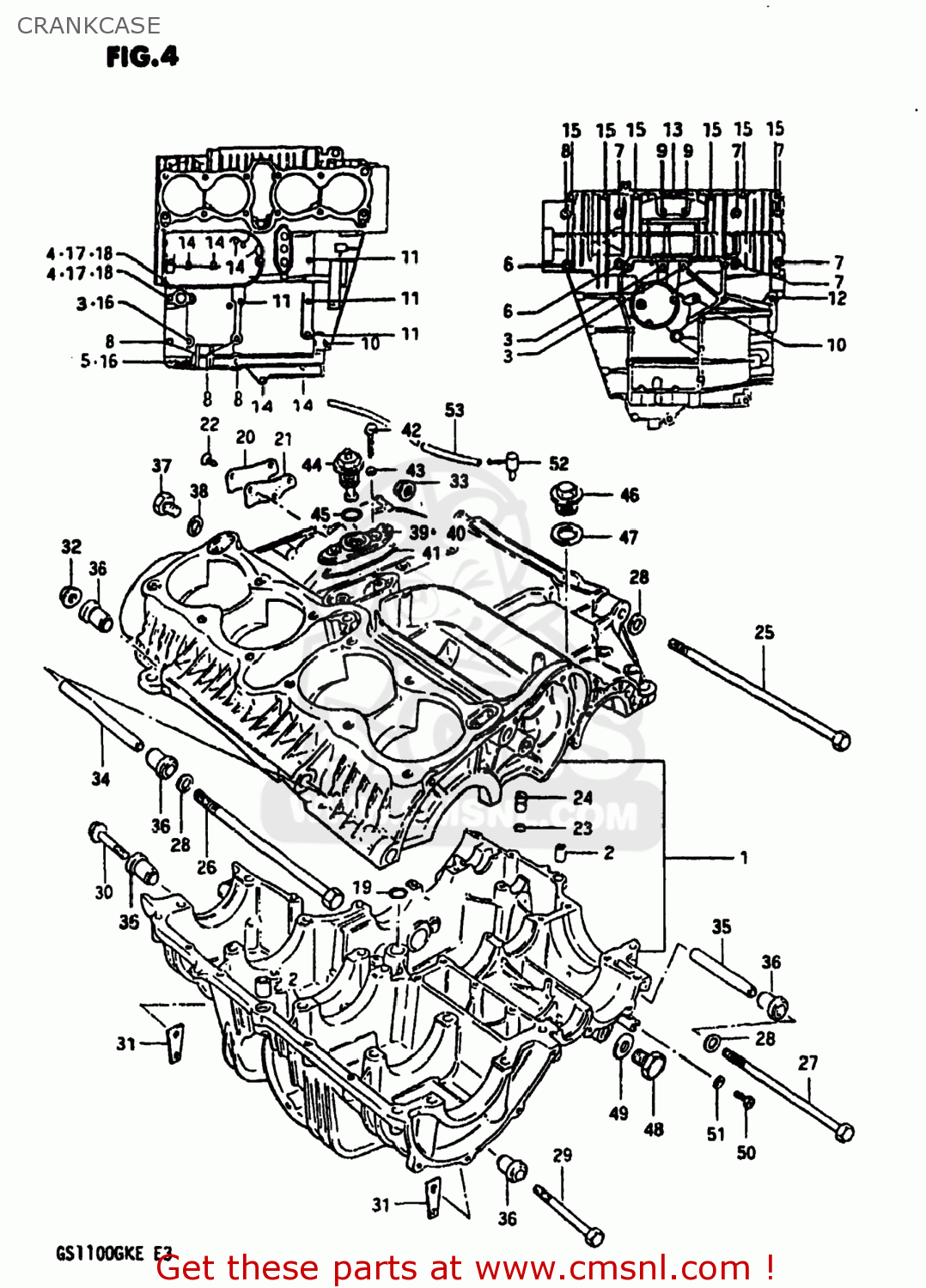

CRANKCASE

ref

part #

description

quantity

1

1130049880
ref: 1
11300-49881

CRANKCASE ASSEMBLY

€ 0.00

2

0920613001
ref: 2
04211-13189

PIN

€ 2.50

3

0910308094
ref: 3
09103-08182

BOLT

€ 4.50

4

0910308092
ref: 4

BOLT 8X110

€ 0.00

5

0910308061
ref: 5
09103-08230

BOLT

€ 3.50

6

0910308061
ref: 6
09103-08230

BOLT

€ 3.50

7

0151708905
ref: 7
01550-0890B

BOLT (8X90)

€ 3.50

8

0151708655
ref: 8
01550-0865A

BOLT (8X65)

€ 3.00

9

0151708605
ref: 9
01550-0860A

BOLT 8X60

€ 3.50

10

0151706905
ref: 10
01550-0690B

BOLT (6X90)

€ 3.50

11

0151706755
ref: 11
01550-0675A

BOLT (6X75)

€ 2.50

12

0151706555
ref: 12
01550-0655B

BOLT 6X55

€ 2.00

13

0151706505
ref: 13
01550-0650A

BOLT 6X50

€ 2.00

14

0151706455
ref: 14
01550-0645A

BOLT (6X45)

€ 2.50

15

0151706355
ref: 15
01550-0635A

BOLT

€ 2.50

16

0831616085
ref: 16
08316-1008B

NUT 8MM

€ 3.00

17

0831311088
ref: 17
08313-10087

NUT

€ 2.50

18

0916808008
ref: 18
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

19

0928013001
ref: 19

O RING(D:3.2,ID:12.9)

€ 4.00

20

1139445000
ref: 20

CAP,OIL GALLERY

€ 6.50

21

1149745000
ref: 21
11497-45000-H17

GASKET,OIL GALLERY (MCA)

€ 13.00

22

0212206168
ref: 22
02122-06167

SCREW

€ 2.00

23

0928003003
ref: 23

O RING(D:1.05,ID:3.1)

€ 2.50

24

0936405005
ref: 24

UNION

€ 3.00

25

0910010144
ref: 25
09100-10074

BOLT

€ 15.50

26

0910010154
ref: 26

BOLT

€ 3.50

27

0910010171
ref: 27

BOLT

€ 11.50

28

0832211105
ref: 28
08322-0110A

WASHER

€ 2.50

29

0910310060
ref: 29

BOLT

€ 0.00

30

0151710558
ref: 30
01550-10557

BOLT 10X55

€ 3.00

31

0915910038
ref: 31

NUT

€ 3.00

32

0831931108
ref: 32

NUT

€ 3.00

33

0831931105
ref: 33
08319-3110A

NUT 10MM

€ 3.00

34

0918010077
ref: 34

SPACER

€ 0.00

35

0918010078
ref: 35

SPACER

€ 2.50

36

0931910042
ref: 36

BUSH

€ 16.50

37

0924714012
ref: 37
09247-14026

PLUG (14X12)

€ 3.50

38

0916814004
ref: 38

GASKET(14X19.2X2) (NAS)

€ 2.50

39

1644545010
ref: 39
16445-45000

HOUSING,OIL PRESSURE SWITCH

€ 28.00

40

1644549010
ref: 40

HOUSING,OIL PRESSURE SWITCH

€ 20.00

41

1644845000
ref: 41

O RING,PRESSURE SWITCH HOUSING

€ 10.50

42

0151406255
ref: 42
01550-0625A

BOLT

€ 1.50

43

0916806015
ref: 43
09168-06023

WASHER

€ 2.00

44

3782045060
ref: 44
37820-45061

SWITCH ASSEMBLY

€ 30.00

45

0928019001
ref: 45

O RING(D:1.9,ID:18.8)

€ 1.50

46

0924720002
ref: 46
09248-20003

PLUG

€ 4.50

47

0916820004
ref: 47
09168-20003

GASKET

€ 1.50

48

0924714019
ref: 48
09247-14036

PLUG

€ 5.50

49

0916814004
ref: 49

GASKET(14X19.2X2) (NAS)

€ 2.50

50

0912806004
ref: 50
09128-06044

SCREW(6X10)

€ 1.50

51

0916806015
ref: 51
09168-06023

WASHER

€ 2.00

52

2482145100
ref: 52

BPLUG,BEVEL GEAR BREATHER

€ 7.00

53

0934302009
ref: 53
09352-20503-600

HOSE

€ 12.00
